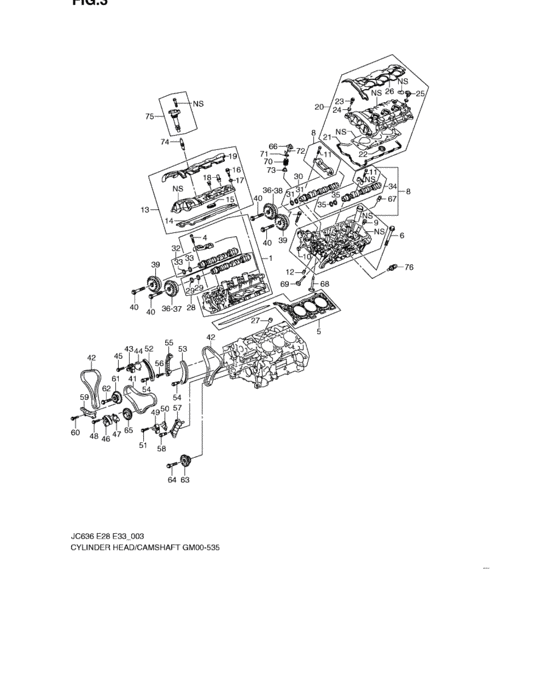

Cylinder head/camshaft (CYLINDER HEAD/CAMSHAFT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- CUSTOM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-78J00-000
Head,cylinder rh
->11110-78J10,USED W/12911-78J10(6PC),12915-78J10(6PC) |
11110-78J00-000 |
— | ||
| replacements | |||||
|
1
|
1
11110-78J10-000 HEAD,CYLINDER,R->11110-78J10,USED W/12911-78J10(6PC),12915-78J10(6PC) |
11110-78J10-000 |
US $1,764.72 |
||
|
1
|
1
12911-78J10-000 Valve,intake->11110-78J10,USED W/12911-78J10(6PC),12915-78J10(6PC) |
12911-78J10-000 |
US $29.07 |
||
|
1
|
1
12915-78J10-000 Valve,exhaust->11110-78J10,USED W/12911-78J10(6PC),12915-78J10(6PC) |
12915-78J10-000 |
US $43.06 |
||
|
1
|
1
11110-78J10-000 HEAD,CYLINDER,RENG.NO.1077037~ |
11110-78J10-000 |
US $1,764.72 |
||
|
2
|
2
1111A-78J00-000
PLUG
NOT ILLUSTRATED |
1111A-78J00-000 |
— | ||
|
3
|
3
1111B-78J01-000
PLUG,M20
NOT ILLUSTRATED |
1111B-78J01-000 |
— | ||
|
4
|
4
11128-78J00-000
BOLT,CAMSHAFT HOUSING
|
11128-78J00-000 |
— | ||
|
5
|
5
11140-78811-000
Gasket set,cylinder head
|
11140-78811-000 |
— | ||
| replacement | |||||
|
5
|
5
11140-78813-000 GASKET SET,CYL HEAD |
11140-78813-000 |
US $144.62 |
||
|
6
|
6
11117-78J00-000 BOLT,CYLINDER HEAD |
11117-78J00-000 |
US $39.01 |
||
|
7
|
7
1111D-78J00-000 BOLT,CYLINDER HEAD SIDE |
1111D-78J00-000 |
US $2.58 |
||
|
8
|
8
11120-78J00-000
Head,cylinder lh
->11120-78J10,USED W/12911-78J10(6PC),12915-78J10(6PC) |
11120-78J00-000 |
— | ||
| replacements | |||||
|
8
|
8
11120-78J10-000 HEAD,CYLINDER,L->11120-78J10,USED W/12911-78J10(6PC),12915-78J10(6PC) |
11120-78J10-000 |
US $2,934.32 |
||
|
8
|
8
12911-78J10-000 Valve,intake->11120-78J10,USED W/12911-78J10(6PC),12915-78J10(6PC) |
12911-78J10-000 |
US $29.07 |
||
|
8
|
8
12915-78J10-000 Valve,exhaust->11120-78J10,USED W/12911-78J10(6PC),12915-78J10(6PC) |
12915-78J10-000 |
US $43.06 |
||
|
8
|
8
11120-78J10-000 HEAD,CYLINDER,LENG.NO.1077037~ |
11120-78J10-000 |
US $2,934.32 |
||
|
9
|
9
1111B-78J01-000
PLUG,M20
|
1111B-78J01-000 |
— | ||
|
10
|
10
1111A-78J00-000
PLUG
|
1111A-78J00-000 |
— | ||
|
11
|
11
11128-78J00-000
BOLT,CAMSHAFT HOUSING
|
11128-78J00-000 |
— | ||
|
12
|
12
11130-78J00-000 VALVE,OIL RELIEF |
11130-78J00-000 |
US $29.62 |
||
|
13
|
13
11170-53L10-000 COVER,CYLINDER HEAD,R |
11170-53L10-000 |
US $334.88 |
||
|
14
|
14
11176-78J00-000
Gasket
|
11176-78J00-000 |
— | ||
| replacement | |||||
|
14
|
14
11176-78J02-000 GASKET,CYL HEAD COVER,R |
11176-78J02-000 |
US $48.58 |
||
|
15
|
15
11179-78J01-000
SEAL,PLUG HOLE PIPE
|
11179-78J01-000 |
— | ||
|
16
|
16
11178-78J01-000
BOLT,CYLINDER HEAD COVER
|
11178-78J01-000 |
— | ||
| replacement | |||||
|
16
|
16
1117C-78J00-000
BOLT ASSY,CYL HEAD COVER
|
1117C-78J00-000 |
— | ||
|
17
|
17
11177-78J01-000
INSULATOR
|
11177-78J01-000 |
— | ||
|
18
|
18
11175-78J00-000
PIPE,BREATHER
|
11175-78J00-000 |
— | ||
|
19
|
19
1117B-53L00-000
DAMPER,CYLINDER HEAD COVER,R
ENG.NO.1014885~ |
1117B-53L00-000 |
— | ||
|
20
|
20
11180-53L10-000 COVER,CYLINDER HEAD,L |
11180-53L10-000 |
US $277.84 |
||
|
21
|
21
11186-78J00-000
Gasket
|
11186-78J00-000 |
— | ||
| replacement | |||||
|
21
|
21
11186-78J01-000 GASKET,CYL HEAD COVER,L |
11186-78J01-000 |
from US $42.32 |
||
|
22
|
22
11179-78J01-000
SEAL,PLUG HOLE PIPE
|
11179-78J01-000 |
— | ||
|
23
|
23
11178-78J01-000
BOLT,CYLINDER HEAD COVER
|
11178-78J01-000 |
— | ||
| replacement | |||||
|
23
|
23
1117C-78J00-000
BOLT ASSY,CYL HEAD COVER
|
1117C-78J00-000 |
— | ||
|
24
|
24
11177-78J01-000
INSULATOR
|
11177-78J01-000 |
— | ||
|
25
|
25
11185-78J00-000
PIPE,BREATHER
|
11185-78J00-000 |
— | ||
|
26
|
26
1118B-53L00-000
DAMPER,CYLINDER HEAD COVER,L
ENG.NO.1014885~ |
1118B-53L00-000 |
— | ||
|
27
|
27
1111C-78J00-000
PIN,CYLINDER HEAD DOWEL
|
1111C-78J00-000 |
— | ||
|
28
|
28
12710-78J50-000 CAMSHAFT,INTK,R |
12710-78J50-000 |
US $340.40 |
||
|
28
|
28
12710-78J00-000
Camshaft,intk rh
ENG.NO.1014885~ |
12710-78J00-000 |
— | ||
| replacement | |||||
|
28
|
28
12710-78J20-000 CAMSHAFT,INTK,RENG.NO.1014885~ |
12710-78J20-000 |
US $250.24 |
||
|
29
|
29
12712-78J00-000 RING,CAMSHAFT SEAL |
12712-78J00-000 |
US $5 |
||
|
30
|
30
12710-78J60-000 CAMSHAFT,INTK,L |
12710-78J60-000 |
US $1,413.84 |
||
|
30
|
30
12710-78J10-000
Camshaft,intk lh
ENG.NO.1014885~ |
12710-78J10-000 |
— | ||
| replacement | |||||
|
30
|
30
12710-78J30-000
CAMSHAFT,INTK,R
ENG.NO.1014885~ |
12710-78J30-000 |
— | ||
|
31
|
31
12712-78J00-000 RING,CAMSHAFT SEAL |
12712-78J00-000 |
US $5 |
||
|
32
|
32
12720-78J00-000
Camshaft,exh rh
|
12720-78J00-000 |
— | ||
| replacement | |||||
|
32
|
32
12720-78J20-000 CAMSHAFT,EXH,R |
12720-78J20-000 |
US $177.01 |
||
|
33
|
33
12712-78J00-000 RING,CAMSHAFT SEAL |
12712-78J00-000 |
US $5 |
||
|
34
|
34
12720-78J10-000
Camshaft,exh lh
|
12720-78J10-000 |
— | ||
| replacement | |||||
|
34
|
34
12720-78J30-000
CAMSHAFT,EXH,R
|
12720-78J30-000 |
— | ||
|
35
|
35
12712-78J00-000 RING,CAMSHAFT SEAL |
12712-78J00-000 |
US $5 |
||
|
36
|
36
12740-78J50-000 SPROCKET ASSY,CMSHFT TMG INTK~ENG.NO.1014884 |
12740-78J50-000 |
US $259.44 |
||
|
37
|
37
12740-78J00-000 SPROCKET ASSY,CAMSHAFT INTK,RENG.NO.1014885~ |
12740-78J00-000 |
US $371.68 |
||
|
38
|
38
12740-78J10-000 SPROCKET ASSY,CAMSHAFT INTK,LENG.NO.1014885~ |
12740-78J10-000 |
US $371.68 |
||
|
39
|
39
12750-78J50-000
SPRKT ASSY,CMSHFT TIMING EXH
|
12750-78J50-000 |
— | ||
|
39
|
39
12750-78J00-000 SPROCKET ASSY,CMSHFT EXHENG.NO.1014885~ |
12750-78J00-000 |
US $371.68 |
||
|
40
|
40
1274A-78J00-000 BOLT,CAMSHAFT TIMING SPROCKET |
1274A-78J00-000 |
US $22.82 |
||
|
41
|
41
12761-78J50-000
Chain, timing 1st
|
12761-78J50-000 |
— | ||
| replacement | |||||
|
41
|
41
12761-78J51-000 CHAIN,TIMING 1ST |
12761-78J51-000 |
from US $74.70 |
||
|
41
|
41
12761-78J01-000
Chain comp,timing 1st
ENG.NO.1014885~ |
12761-78J01-000 |
— | ||
| replacement | |||||
|
41
|
41
12761-78J02-000
CHAIN,TIMING 1ST
ENG.NO.1014885~ |
12761-78J02-000 |
— | ||
|
42
|
42
12762-78J50-000 CHAIN,TIMING 2ND |
12762-78J50-000 |
US $58.14 |
||
|
42
|
42
12762-78J01-000
Chain comp,timing 2nd
ENG.NO.1014885~ |
12762-78J01-000 |
— | ||
| replacement | |||||
|
42
|
42
12762-78J02-000
CHAIN,TIMING 2ND
ENG.NO.1014885~ |
12762-78J02-000 |
— | ||
|
43
|
43
12832-78J01-000 ADJUSTER ASSY,TENSIONER,R |
12832-78J01-000 |
from US $181.58 |
||
|
44
|
44
12835-78J00-000 GASKET,TENSIONER ADJUSTER,R |
12835-78J00-000 |
US $27.42 |
||
|
45
|
45
1277B-78J00-000 Bolt |
1277B-78J00-000 |
US $17.41 |
||
|
46
|
46
12831-78J01-000 ADJUSTER ASSY,TENSIONER PRI |
12831-78J01-000 |
from US $189.72 |
||
|
47
|
47
12834-78J00-000 GASKET,TENSIONER ADJUSTER PRI |
12834-78J00-000 |
US $27.42 |
||
|
48
|
48
1277B-78J00-000 Bolt |
1277B-78J00-000 |
US $17.41 |
||
|
49
|
49
12833-78J01-000 ADJUSTER ASSY,TENSIONER,L |
12833-78J01-000 |
from US $189.77 |
||
|
50
|
50
12836-78J00-000 GASKET,TENSIONER ADJUSTER,L |
12836-78J00-000 |
US $27.42 |
||
|
51
|
51
1277B-78J00-000 Bolt |
1277B-78J00-000 |
US $17.41 |
||
|
52
|
52
12811-78J00-000
TENSIONER,TIMING CHAIN,R
|
12811-78J00-000 |
— | ||
| replacement | |||||
|
52
|
52
12811-78J10-000 TENSIONER,TIMING CHAIN,R |
12811-78J10-000 |
from US $47.12 |
||
|
53
|
53
12812-78J00-000
TENSIONER,TIMING CHAIN,L
|
12812-78J00-000 |
— | ||
| replacement | |||||
|
53
|
53
12812-78J10-000 TENSIONER,TIMING CHAIN,L |
12812-78J10-000 |
US $61.09 |
||
|
54
|
54
1281A-78J00-000
BOLT,TIMING CHAIN TENSIONER
|
1281A-78J00-000 |
— | ||
|
55
|
55
12772-78J50-000
Guide, tmg chain rh
|
12772-78J50-000 |
— | ||
| replacement | |||||
|
55
|
55
12770-78810-000
Guide asm-tmg c
|
12770-78810-000 |
— | ||
|
55
|
55
12772-78J00-000 GUIDE,TIMING CHAIN,RENG.NO.1014885~ |
12772-78J00-000 |
US $47.10 |
||
|
56
|
56
1277B-78J00-000 Bolt |
1277B-78J00-000 |
US $17.41 |
||
|
57
|
57
12773-78J50-000
Guide, tmg chain lh
|
12773-78J50-000 |
— | ||
| replacement | |||||
|
57
|
57
12770-78820-000
Guide asm-tmg c
|
12770-78820-000 |
— | ||
|
57
|
57
12773-78J00-000
Guide,timing chain lh
ENG.NO.1014885~ |
12773-78J00-000 |
— | ||
|
58
|
58
1277B-78J00-000 Bolt |
1277B-78J00-000 |
US $17.41 |
||
|
59
|
59
12771-78JG0-000 GUIDE,TIMING CHAIN PRI |
12771-78JG0-000 |
from US $37.87 |
||
|
60
|
60
1277B-78J00-000 Bolt |
1277B-78J00-000 |
US $17.41 |
||
|
61
|
61
12745-78J50-000
Sprocket comp,idler rh
|
12745-78J50-000 |
— | ||
| replacement | |||||
|
61
|
61
12745-78810-000
SPROCKET,IDLER,R
|
12745-78810-000 |
— | ||
|
61
|
61
12745-78J01-000 SPROCKET,IDLER,RENG.NO.1014885~ |
12745-78J01-000 |
US $331.20 |
||
|
62
|
62
1274B-78J00-000 BOLT,IDLER SPROCKET |
1274B-78J00-000 |
US $41.58 |
||
|
63
|
63
12746-78J50-000
Sprocket comp,idler lh
|
12746-78J50-000 |
— | ||
| replacement | |||||
|
63
|
63
12746-78810-000
SPROCKET,IDLER,L
|
12746-78810-000 |
— | ||
|
63
|
63
12746-78J01-000 SPROCKET,IDLER,LENG.NO.1014885~ |
12746-78J01-000 |
US $333.04 |
||
|
64
|
64
1274B-78J00-000 BOLT,IDLER SPROCKET |
1274B-78J00-000 |
US $41.58 |
||
|
65
|
65
12631-78J50-000
SPROCKET,CRANKSHAFT TIMING
|
12631-78J50-000 |
— | ||
|
65
|
65
12631-78J00-000 SPROCKET,CRANKSHAFT TIMINGENG.NO.1014885~ |
12631-78J00-000 |
US $177.74 |
||
|
66
|
66
12840-78J00-000 ARM,VALVE ROCKER |
12840-78J00-000 |
US $22.45 |
||
|
67
|
67
12860-78J00-000 ADJUSTER,HYDR VALVE LASH |
12860-78J00-000 |
US $75.81 |
||
|
68
|
68
12911-78J00-000
VALVE,INTK
|
12911-78J00-000 |
— | ||
| replacement | |||||
|
68
|
68
12911-78J10-000 Valve,intake |
12911-78J10-000 |
US $29.07 |
||
|
68
|
68
12911-78J10-000 Valve,intakeENG.NO.1077037~ |
12911-78J10-000 |
US $29.07 |
||
|
68
|
68
12911-78J00-075
VALVE,INTAKE OS:0.075
|
12911-78J00-075 |
— | ||
|
69
|
69
12915-78J00-000
VALVE,EXH
|
12915-78J00-000 |
— | ||
| replacement | |||||
|
69
|
69
12915-78J10-000 Valve,exhaust |
12915-78J10-000 |
US $43.06 |
||
|
69
|
69
12915-78J10-000 Valve,exhaustENG.NO.1077037~ |
12915-78J10-000 |
US $43.06 |
||
|
69
|
69
12915-78J00-075
VALVE,EXHAUST OS:0.075
|
12915-78J00-075 |
— | ||
|
70
|
70
12921-78J00-000 SPRING,VALVE |
12921-78J00-000 |
US $9.02 |
||
|
71
|
71
12931-78J00-000 RETAINER,VALVE SPRING |
12931-78J00-000 |
US $4.27 |
||
|
72
|
72
12932-78J00-000 COTTER,VALVE |
12932-78J00-000 |
US $24.88 |
||
|
73
|
73
12933-78J00-000 SEAL,VALVE STEM |
12933-78J00-000 |
US $4.16 |
||
|
74
|
74
1119A-78J00-000 PLUG,SPARK |
1119A-78J00-000 |
from US $11.68 |
||
|
75
|
75
33400-78J02-000
Coil assy,ignition
|
33400-78J02-000 |
— | ||
| replacement | |||||
|
75
|
75
33400-78J03-000 COIL ASSY,IGNITION |
33400-78J03-000 |
from US $138.31 |
||
|
76
|
76
13650-78J00-000 Sensor,water Temp |
13650-78J00-000 |
US $111.14 |
||
