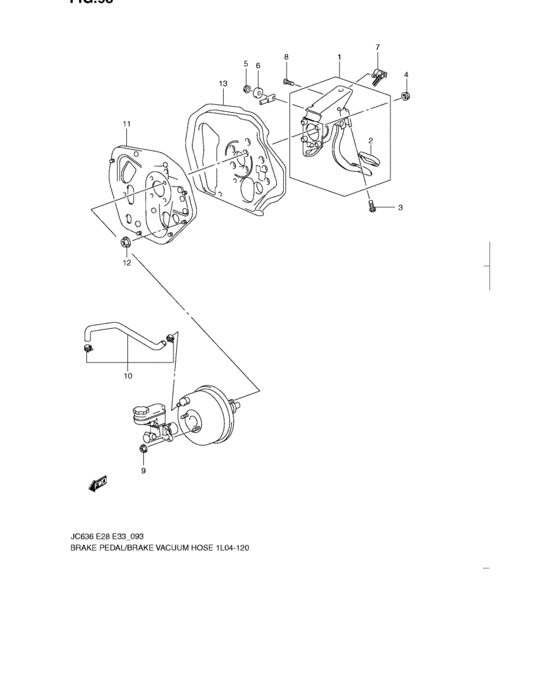

Brake pedal/brake vacuum hose (BRAKE PEDAL/BRAKE VACUUM HOSE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49610-78J00-000
PEDAL,BRAKE
07 MODEL |
49610-78J00-000 |
— | ||
|
1
|
1
49610-78J10-000
PEDAL,BRAKE
08 MODEL,09 MODEL |
49610-78J10-000 |
— | ||
|
2
|
2
49751-78J00-000
PAD,PEDAL
|
49751-78J00-000 |
— | ||
|
3
|
3
49618-78J02-000
Bolt
|
49618-78J02-000 |
— | ||
|
4
|
4
1411C-78J00-000 NUT,M8 |
1411C-78J00-000 |
US $12.44 |
||
|
5
|
5
49617-78J00-000
NUT
|
49617-78J00-000 |
— | ||
|
6
|
6
49616-78J01-000
WASHER
07 MODEL |
49616-78J01-000 |
— | ||
|
6
|
6
49616-78J10-000
WASHER
08 MODEL,09 MODEL |
49616-78J10-000 |
— | ||
|
7
|
7
37740-78J00-000
Sensor,pedal position
|
37740-78J00-000 |
— | ||
| replacement | |||||
|
7
|
7
37740-78J02-000 SENSOR,PEDAL POSITION |
37740-78J02-000 |
US $61.09 |
||
|
8
|
8
37749-78J00-000
SCREW ASSY
|
37749-78J00-000 |
— | ||
|
9
|
9
51313-78J00-000
NUT
|
51313-78J00-000 |
— | ||
|
10
|
10
51010-78J00-000
HOSE,BRAKE VACUUM
|
51010-78J00-000 |
— | ||
|
11
|
11
59119-78J00-000
REINFORCEMENT,DASH PANEL
|
59119-78J00-000 |
— | ||
|
12
|
12
59117-78J00-000
NUT
|
59117-78J00-000 |
— | ||
|
13
|
13
75221-78J01-000
Insulator, dash panel
|
75221-78J01-000 |
— | ||
| replacement | |||||
|
13
|
13
75221-78J10-000
SILENCER,DASH PANEL CENTER
|
75221-78J10-000 |
— | ||
