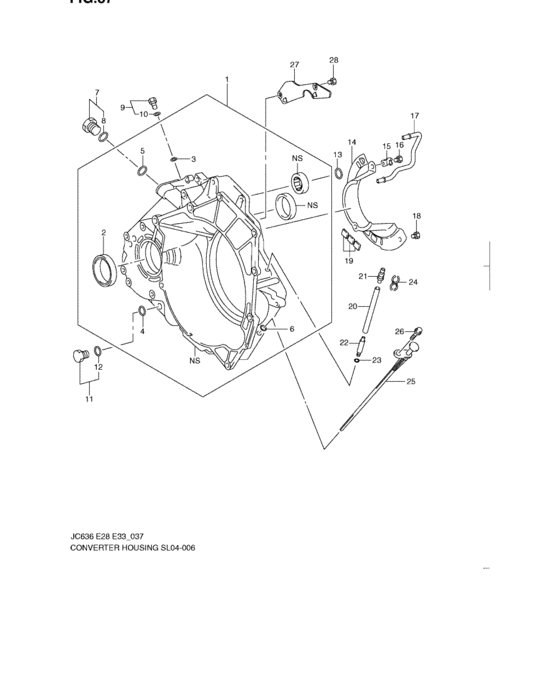

Converter housing (07,08 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24721-78J00-000
CASE,T/C HOUSING 2WD
FWD |
24721-78J00-000 |
— | ||
|
2
|
2
27441-78J00-000
SEAL,DIFF SIDE OIL, RH
|
27441-78J00-000 |
— | ||
|
3
|
3
24733-78J00-000
O-RING
|
24733-78J00-000 |
— | ||
|
4
|
4
24824-78J00-000
WASHER,DRAIN PLUG
|
24824-78J00-000 |
— | ||
|
5
|
5
24842-78J10-000
O-RING,PRESS TEST HOLE PLUG
|
24842-78J10-000 |
— | ||
|
6
|
6
24832-78J00-000
O-RING
|
24832-78J00-000 |
— | ||
|
7
|
7
29850-78J00-000
PLUG,PRESS TEST HOLE
|
29850-78J00-000 |
— | ||
|
8
|
8
24842-78J10-000
O-RING,PRESS TEST HOLE PLUG
|
24842-78J10-000 |
— | ||
|
9
|
9
29849-78J00-000
PLUG KIT
|
29849-78J00-000 |
— | ||
|
10
|
10
24733-78J00-000
O-RING
|
24733-78J00-000 |
— | ||
|
11
|
11
24823-78J00-000
PLUG,DRAIN
|
24823-78J00-000 |
— | ||
|
12
|
12
24824-78J00-000
WASHER,DRAIN PLUG
|
24824-78J00-000 |
— | ||
|
13
|
13
24735-78J10-000
O-RING,FR DIFF DRIVEN GR
|
24735-78J10-000 |
— | ||
|
14
|
14
24722-78J00-000
PLATE,FLUID
|
24722-78J00-000 |
— | ||
|
15
|
15
24724-78J10-000
PIPE,FLUID
|
24724-78J10-000 |
— | ||
|
16
|
16
24725-78J10-000
RETAINER,LUB FLUID PIPE
|
24725-78J10-000 |
— | ||
|
17
|
17
25928-78J00-000
Bolt
|
25928-78J00-000 |
— | ||
|
18
|
18
25928-78J00-000
Bolt
|
25928-78J00-000 |
— | ||
|
19
|
19
24745-78J00-000
MAGNET
|
24745-78J00-000 |
— | ||
|
20
|
20
24856-78J10-000
HOSE,BREATHER
|
24856-78J10-000 |
— | ||
|
21
|
21
27991-78J00-000
PLUG,UPPER
|
27991-78J00-000 |
— | ||
|
22
|
22
27992-78J00-000
PLUG,LOWER
|
27992-78J00-000 |
— | ||
|
23
|
23
24852-78J00-000
O-RING
|
24852-78J00-000 |
— | ||
|
24
|
24
24810-78J00-000
RETAINER
|
24810-78J00-000 |
— | ||
|
25
|
25
24831-78J00-000
GAUGE,T/M OIL LEVEL
|
24831-78J00-000 |
— | ||
|
26
|
26
24833-78J00-000
BOLT,OIL LEV GAUGE
|
24833-78J00-000 |
— | ||
|
27
|
27
24850-78J00-000
PLATE,BUFFLE
|
24850-78J00-000 |
— | ||
|
28
|
28
24851-78J00-000
Bolt
|
24851-78J00-000 |
— |
