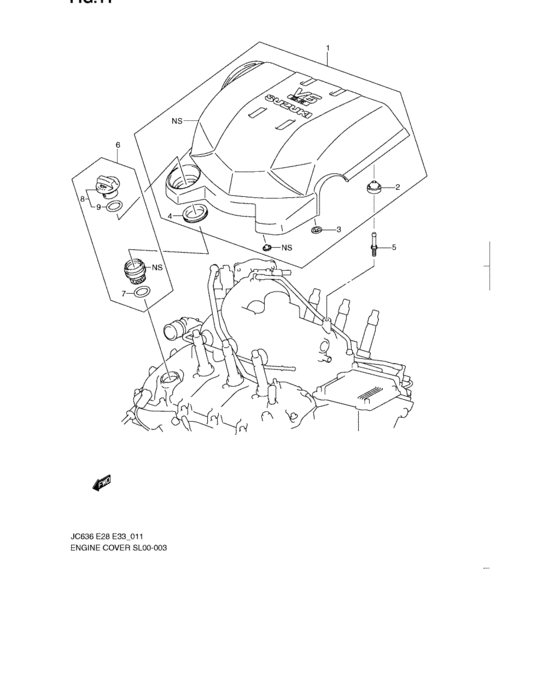

Engine cover (ENGINE COVER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13170-78J00-000 COVER,ENGINE |
13170-78J00-000 |
US $209.76 |
||
|
2
|
2
13137-78J00-000
GROMMET
|
13137-78J00-000 |
— | ||
|
3
|
3
13177-78J00-000
NUT,ENG COVER
|
13177-78J00-000 |
— | ||
|
4
|
4
16921-78J00-000
GROMMET,OIL FILLER CAP
|
16921-78J00-000 |
— | ||
|
5
|
5
13176-78J00-000
BOLT,ENG COVER
|
13176-78J00-000 |
— | ||
|
6
|
6
16920-78J00-000 CAP ASSY,OIL FILLER |
16920-78J00-000 |
US $41.58 |
||
|
7
|
7
16923-78J00-000
O-RING,OIL FILLER CAP
|
16923-78J00-000 |
— | ||
|
8
|
8
16922-78J00-000 Cap,oil filler |
16922-78J00-000 |
from US $28.87 |
||
|
9
|
9
16923-78J00-000
O-RING,OIL FILLER CAP
|
16923-78J00-000 |
— |
