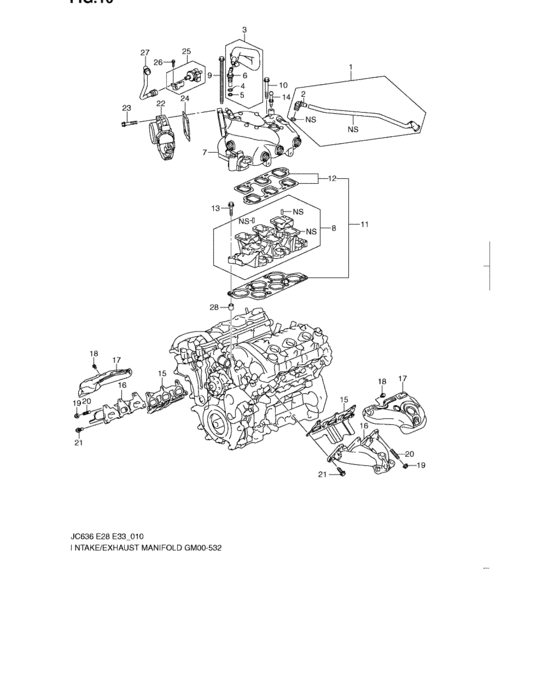

Intake/exhaust manifold (INTAKE/EXHAUST MANIFOLD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11192-78J01-000 TUBE,PCV |
11192-78J01-000 |
US $28.89 |
||
|
2
|
2
11199-78J00-000 FITTING,PCV HOSE |
11199-78J00-000 |
US $9.02 |
||
|
3
|
3
11193-78J01-000 HOSE,PCV |
11193-78J01-000 |
US $64.40 |
||
|
4
|
4
1119B-78J00-000
O-RING,FITTING ID:10.9 BLUE
|
1119B-78J00-000 |
— | ||
|
5
|
5
1119C-78J00-000
O-RING,FITTING ID:9.3 BLACK
|
1119C-78J00-000 |
— | ||
|
6
|
6
1119D-78J00-000
Fitting, pcv hose
|
1119D-78J00-000 |
— | ||
|
7
|
7
13140-78J00-000
MANIFOLD,INTK UPR
|
13140-78J00-000 |
— | ||
|
8
|
8
13110-78J00-000
MANIFOLD,INTK LWR
|
13110-78J00-000 |
— | ||
|
9
|
9
1311A-78J00-000
Bolt,intk manf upr,8x190
|
1311A-78J00-000 |
— | ||
| replacement | |||||
|
9
|
9
1311A-78J01-000 BOLT,INTK MANF UPR NO.1 |
1311A-78J01-000 |
US $4.42 |
||
|
10
|
10
1653B-78J00-000
Bolt,intk manf upr,8x75
|
1653B-78J00-000 |
— | ||
| replacement | |||||
|
10
|
10
1653B-78J01-000
Bolt
|
1653B-78J01-000 |
— | ||
|
11
|
11
13100-78810-000
Gasket set, intake manf
|
13100-78810-000 |
— | ||
| replacement | |||||
|
11
|
11
13100-78814-000 GASKET SET,INTK MANF |
13100-78814-000 |
from US $72.70 |
||
|
12
|
12
13119-78JA1-000
GASKET SET,INTK MANF UPR
|
13119-78JA1-000 |
— | ||
|
13
|
13
1312A-78J00-000
BOLT,INTK MANF LOWER
|
1312A-78J00-000 |
— | ||
|
14
|
14
1311A-78J00-000
Bolt,intk manf upr,8x190
|
1311A-78J00-000 |
— | ||
| replacement | |||||
|
14
|
14
1311A-78J01-000 BOLT,INTK MANF UPR NO.1 |
1311A-78J01-000 |
US $4.42 |
||
|
15
|
15
14140-78J00-000 GASKET,EXH MANF |
14140-78J00-000 |
US $41.95 |
||
|
16
|
16
14111-78J00-000 MANIFOLD,EXH |
14111-78J00-000 |
US $248.40 |
||
|
17
|
17
14121-78J00-000
COVER,EXH MANF
|
14121-78J00-000 |
— | ||
|
18
|
18
14124-78J00-000
BOLT,6X12
|
14124-78J00-000 |
— | ||
|
19
|
19
1411C-78J00-000 NUT,M8 |
1411C-78J00-000 |
US $12.44 |
||
|
20
|
20
1411B-78J00-000 BOLT,STUD |
1411B-78J00-000 |
US $21.71 |
||
|
21
|
21
1411A-78J00-000 BOLT,EXH MANF |
1411A-78J00-000 |
US $19.69 |
||
|
22
|
22
13400-78J10-000 BODY ASSY,THROTTLE |
13400-78J10-000 |
US $1,247.92 |
||
| replacement | |||||
|
22
|
22
13400-78J11-000 Body Assy,throttle |
13400-78J11-000 |
US $1,247.92 |
||
|
23
|
23
1341B-78J00-000 Bolt |
1341B-78J00-000 |
US $1.91 |
||
|
24
|
24
13421-78J00-000
Gasket,throttle body
|
13421-78J00-000 |
— | ||
| replacement | |||||
|
24
|
24
13421-78J10-000 GASKET,THROTTLE BODY |
13421-78J10-000 |
US $57.01 |
||
|
25
|
25
18117-78J00-000 VALVE,EVAP CSTR PURGE |
18117-78J00-000 |
US $263.12 |
||
|
26
|
26
1655B-78J00-000
BOLT,6X16
|
1655B-78J00-000 |
— | ||
|
27
|
27
18563-78J00-000 HOSE,PURGE |
18563-78J00-000 |
US $30.18 |
||
|
28
|
28
1151F-78J00-000
RETAINER
|
1151F-78J00-000 |
— | ||
