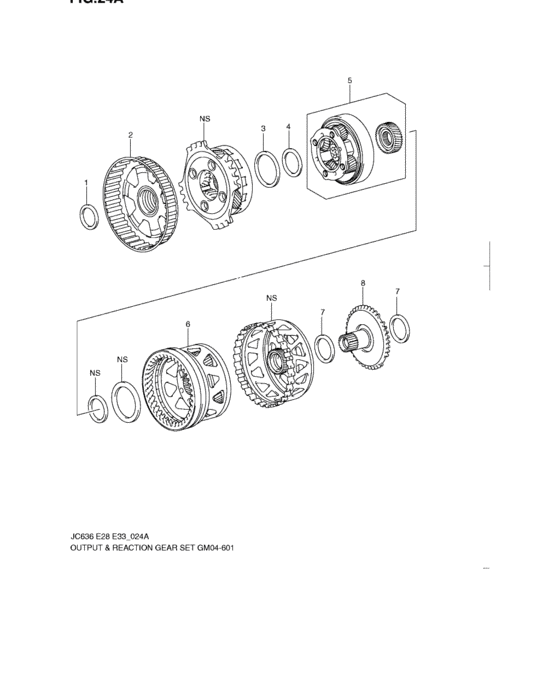

Output gear (09 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24931-78J20-000
BEARING,THRUST
|
24931-78J20-000 |
— | ||
|
2
|
2
24930-78J20-000
Gear, reduction sun
|
24930-78J20-000 |
— | ||
|
3
|
3
24932-78J20-000
BEARING,INPUT CARRIER THRUST
|
24932-78J20-000 |
— | ||
|
4
|
4
24933-78J21-000
BEARING,SUN GEAR THRUST
|
24933-78J21-000 |
— | ||
|
5
|
5
24935-78J20-000
CARRIER,INPUT
|
24935-78J20-000 |
— | ||
|
6
|
6
24934-78J20-000
CARRIER,OUTPUT
|
24934-78J20-000 |
— | ||
|
7
|
7
24931-78J20-000
BEARING,THRUST
|
24931-78J20-000 |
— | ||
|
8
|
8
24936-78J20-000
HUB,OUTPUT CARRIER
|
24936-78J20-000 |
— |
