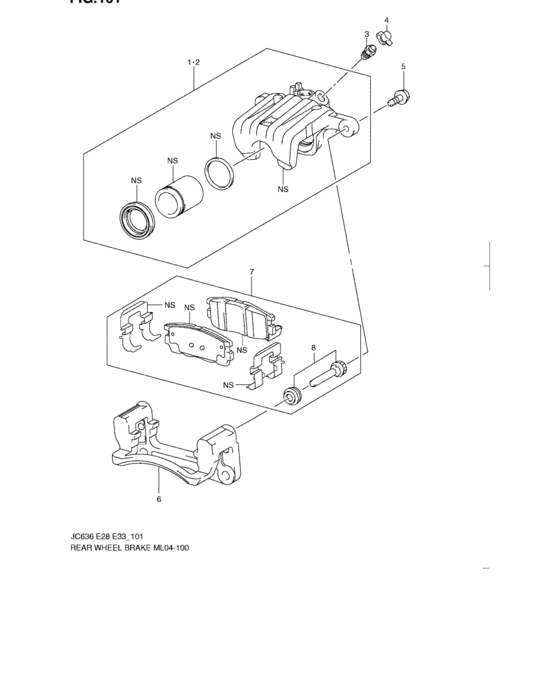

Rear wheel brake (REAR WHEEL BRAKE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55410-78J00-000
CALIPER,RR BRAKE,R
|
55410-78J00-000 |
— | ||
|
2
|
2
55420-78J00-000
CALIPER,RR BRAKE,L
|
55420-78J00-000 |
— | ||
|
3
|
3
55151-78J01-000
PLUG,BLEEDER
|
55151-78J01-000 |
— | ||
|
4
|
4
55156-78J10-000
Cap, bleeder plug
|
55156-78J10-000 |
— | ||
| replacement | |||||
|
4
|
4
55156-78J11-000
CAP,BLEEDER PLUG
|
55156-78J11-000 |
— | ||
|
5
|
5
55206-78J01-000
BOLT,PIN
|
55206-78J01-000 |
— | ||
|
6
|
6
55431-78J00-000
BRACKET,RR BRAKE
|
55431-78J00-000 |
— | ||
| replacement | |||||
|
6
|
6
55431-78J01-000
BRACKET,RR BRAKE
|
55431-78J01-000 |
— | ||
|
7
|
7
55800-78J01-000
Pad set,disc brake
07 MODEL |
55800-78J01-000 |
— | ||
| replacement | |||||
|
7
|
7
55800-78J03-000 PAD SET,DISC BRAKE07 MODEL |
55800-78J03-000 |
from US $231.46 |
||
|
8
|
8
55490-78J00-000
PIN SET,SLIDE
|
55490-78J00-000 |
— | ||
