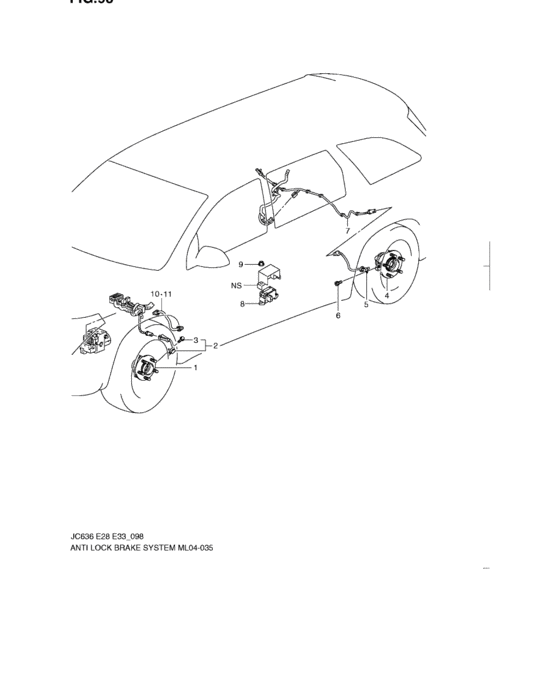

Anti lock brake system (ANTI LOCK BRAKE SYSTEM) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43421-78J01-000 HUB ASSY,FR WHL |
43421-78J01-000 |
US $665.28 |
||
|
2
|
2
56210-78J00-000
Sensor,fr wheel
|
56210-78J00-000 |
— | ||
| replacement | |||||
|
2
|
2
56210-78J01-000 SENSOR,FR WHEEL |
56210-78J01-000 |
US $147.57 |
||
|
3
|
3
43429-78J00-000
Bolt
|
43429-78J00-000 |
— | ||
|
4
|
4
43402-78J01-000 HUB ASSY,RR WHL |
43402-78J01-000 |
from US $577.28 |
||
|
5
|
5
56310-78J01-000 SENSOR,RR WHEEL |
56310-78J01-000 |
US $114.82 |
||
|
6
|
6
43429-78J00-000
Bolt
|
43429-78J00-000 |
— | ||
|
7
|
7
56410-78J10-000
HARNESS,RR WHL SENSOR
AWD |
56410-78J10-000 |
— | ||
|
8
|
8
43500-78J00-000
SENSOR ASSY,YAW
07 MODEL,08 MODEL |
43500-78J00-000 |
— | ||
|
8
|
8
43500-78J10-000
SENSOR,FR WHEEL
09 MODEL |
43500-78J10-000 |
— | ||
|
9
|
9
56118-78J00-000
NUT
|
56118-78J00-000 |
— | ||
|
10
|
10
56250-78J00-000 HARNESS,FR WHL SENSOR,R |
56250-78J00-000 |
US $156.40 |
||
|
11
|
11
56260-78J00-000 HARNESS,FR WHL SENSOR,L |
56260-78J00-000 |
US $158.98 |
||
