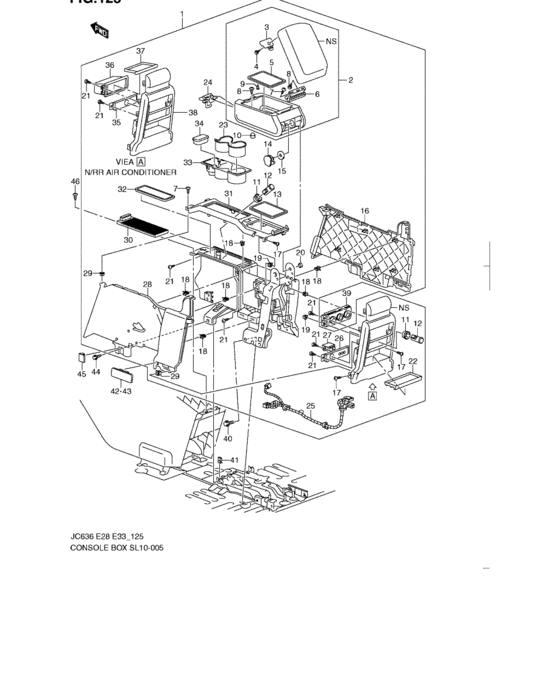

Console box (CONSOLE BOX) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75910-78J00-000
CONSOLE,FR FL
W/RR AIR CONDITIONER,W/CD TUNER,W/NAVI CD TUNER |
75910-78J00-000 |
— | ||
|
1
|
1
75910-78J10-000
CONSOLE,FR FL
W/RR AIR CONDITIONER,W/CD TUNER,W/NAVI CD TUNER |
75910-78J10-000 |
— | ||
|
1
|
1
75910-78J20-000
CONSOLE,FR FL
W/RR AIR CONDITIONER,W/DVD TUNER |
75910-78J20-000 |
— | ||
|
1
|
1
75910-78J30-000
CONSOLE,FR FL
W/RR AIR CONDITIONER,W/DVD TUNER |
75910-78J30-000 |
— | ||
|
1
|
1
75910-78J41-000
CONSOLE,FR FL(GRAY)
N/RR AIR CONDITIONER,W/DVD TUNER |
75910-78J41-000 |
— | ||
|
1
|
1
75910-78J51-000
CONSOLE,FR FL(BEIGE)
N/RR AIR CONDITIONER,W/DVD TUNER |
75910-78J51-000 |
— | ||
|
1
|
1
75910-78J90-000
CONSOLE,FR FL
N/RR AIR CONDITIONER,W/CD TUNER,W/NAVI CD TUNER |
75910-78J90-000 |
— | ||
|
1
|
1
75910-78J80-000
CONSOLE,FR FL
N/RR AIR CONDITIONER,W/CD TUNER,W/NAVI CD TUNER |
75910-78J80-000 |
— | ||
|
2
|
2
75943-78J00-000
ARMREST,FR FLOOR CONSOLE
|
75943-78J00-000 |
— | ||
|
2
|
2
75943-78J10-000
ARMREST,FR FLOOR CONSOLE
|
75943-78J10-000 |
— | ||
|
3
|
3
75941-78J00-000
LATCH,FR FLR CSL UPR(BEIGE)
|
75941-78J00-000 |
— | ||
|
3
|
3
75941-78J10-000 LATCH,FR FLR CSL UPR(GRAY) |
75941-78J10-000 |
US $12.03 |
||
|
4
|
4
71719-78J00-000
BOLT,M4.2X1.41X20
|
71719-78J00-000 |
— | ||
|
5
|
5
75961-78J00-000
MAT,FR FL CONSOLE
|
75961-78J00-000 |
— | ||
|
6
|
6
75944-78J00-000
HINGE
|
75944-78J00-000 |
— | ||
|
7
|
7
75946-78J00-000
SCREW
|
75946-78J00-000 |
— | ||
|
8
|
8
73319-78J01-000
SCREW
|
73319-78J01-000 |
— | ||
|
9
|
9
75947-78J00-000
Cushion,armrest console
|
75947-78J00-000 |
— | ||
| replacement | |||||
|
9
|
9
75947-78J01-000
CUSHION,ARMREST CONSOLE
|
75947-78J01-000 |
— | ||
|
10
|
10
75947-78J10-000
CUSHION,ARMREST CONSOLE LOWER
|
75947-78J10-000 |
— | ||
|
11
|
11
39419-78J00-000
RETAINER
|
39419-78J00-000 |
— | ||
|
12
|
12
39410-78J00-000
Receptacle
|
39410-78J00-000 |
— | ||
| replacement | |||||
|
12
|
12
39410-78J01-000
RECEPTACLE
|
39410-78J01-000 |
— | ||
|
13
|
13
75962-78J00-000
LINER,FR FLOOR CONSOLE
|
75962-78J00-000 |
— | ||
|
14
|
14
75949-78J00-000
CAM,ARMREST
|
75949-78J00-000 |
— | ||
|
15
|
15
75948-78J00-000
WASHER
|
75948-78J00-000 |
— | ||
|
16
|
16
75918-78J00-000
PANEL,FR FLOOR CONSOLE
|
75918-78J00-000 |
— | ||
|
16
|
16
75918-78J10-000
PANEL,FR FLOOR CONSOLE
|
75918-78J10-000 |
— | ||
|
17
|
17
75946-78J10-000
SCREW
|
75946-78J10-000 |
— | ||
|
18
|
18
73113-78J00-000
CLIP
|
73113-78J00-000 |
— | ||
| replacement | |||||
|
18
|
18
76138-78J00-000
CLIP
|
76138-78J00-000 |
— | ||
|
19
|
19
35102-78J00-000
NUT,M4.2X1.41
|
35102-78J00-000 |
— | ||
|
20
|
20
75919-78J00-000
NUT
|
75919-78J00-000 |
— | ||
|
21
|
21
75915-78J00-000
Screw
|
75915-78J00-000 |
— | ||
| replacement | |||||
|
21
|
21
75915-78J01-000
SCREW
|
75915-78J01-000 |
— | ||
|
22
|
22
75957-78J00-000
MAT,FR FL CONSOLE
|
75957-78J00-000 |
— | ||
|
23
|
23
75828-78J00-000
LINER
|
75828-78J00-000 |
— | ||
| replacement | |||||
|
23
|
23
75828-78J10-000
LINER
|
75828-78J10-000 |
— | ||
|
23
|
23
75828-78J10-000
LINER
|
75828-78J10-000 |
— | ||
|
24
|
24
75945-78J00-000
LATCH,ARMREST LWR
|
75945-78J00-000 |
— | ||
|
24
|
24
75945-78J10-000
LATCH,ARMREST LWR
|
75945-78J10-000 |
— | ||
|
25
|
25
75916-78J01-000
HARNESS,FR FLOOR CONSOLE
07 MODEL,08 MODEL,W/RR A/C,W/CD TUNER, NAVI CD RADIO |
75916-78J01-000 |
— | ||
|
25
|
25
75916-78J10-000
HARNESS,FR FLOOR CONSOLE
07 MODEL,W/RR A/C, W/DVD TUNER |
75916-78J10-000 |
— | ||
|
25
|
25
75916-78J50-000
HARNESS,FR FLOOR CONSOLE
08 MODEL,W/RR A/C, W/DVD TUNER |
75916-78J50-000 |
— | ||
|
25
|
25
75916-78J21-000
HARNESS,FR FLOOR CONSOLE
07 MODEL,N/RR A/C, W/CD TUNER,NAVI CD TUNER |
75916-78J21-000 |
— | ||
|
25
|
25
75916-78J41-000
Harness, front floor console
07 MODEL,N/RR A/C, W/DVD TUNER |
75916-78J41-000 |
— | ||
|
25
|
25
75916-78J60-000
Harness, front floor console
09 MODEL |
75916-78J60-000 |
— | ||
|
26
|
26
75959-78J00-000
BEZEL,FR FLOOR CONSOLE TRAY
W/RR AIR CONDITIONER,W/DVD TUNER |
75959-78J00-000 |
— | ||
|
26
|
26
75959-78J10-000
BEZEL,FR FLOOR CONSOLE TRAY
W/RR AIR CONDITIONER,W/DVD TUNER |
75959-78J10-000 |
— | ||
|
27
|
27
75958-78J00-000
ADAPTER
|
75958-78J00-000 |
— | ||
|
28
|
28
75917-78J00-000
PANEL,FR FLOOR CONSOLE
|
75917-78J00-000 |
— | ||
|
28
|
28
75917-78J10-000
PANEL,FR FLOOR CONSOLE
|
75917-78J10-000 |
— | ||
|
29
|
29
28168-78J00-000
NUT
07 MODEL,08 MODEL |
28168-78J00-000 |
— | ||
|
29
|
29
75953-78J00-000
NUT
09 MODEL |
75953-78J00-000 |
— | ||
|
30
|
30
75847-78J00-000
DOOR,CUP HOLDER
|
75847-78J00-000 |
— | ||
|
31
|
31
75920-78J01-000
BEZEL,FR FLOOR
|
75920-78J01-000 |
— | ||
|
32
|
32
75846-78J00-000
LINER
|
75846-78J00-000 |
— | ||
|
33
|
33
75820-78J00-000
Holder,cup
|
75820-78J00-000 |
— | ||
| replacement | |||||
|
33
|
33
75820-78J01-000
New Genuine Part
|
75820-78J01-000 |
— | ||
|
34
|
34
75829-78J00-000
LINER
|
75829-78J00-000 |
— | ||
|
35
|
35
75956-78J00-000
BEZEL,TRAY
W/CD TUNER,W/NAVI CD TUNER |
75956-78J00-000 |
— | ||
|
35
|
35
75956-78J10-000
BEZEL,TRAY
W/CD TUNER,W/NAVI CD TUNER |
75956-78J10-000 |
— | ||
|
36
|
36
75955-78J00-000
TRAY,REAR PANEL
|
75955-78J00-000 |
— | ||
|
36
|
36
75955-78J10-000
TRAY,PANEL
|
75955-78J10-000 |
— | ||
|
37
|
37
75957-78J10-000
MAT,RR FL
|
75957-78J10-000 |
— | ||
|
38
|
38
75954-78J10-000
PANEL,FR FL COSOLE RR(GRAY)
|
75954-78J10-000 |
— | ||
|
38
|
38
75954-78J00-000
PANEL,FR FL COSOLE RR(BEIGE)
|
75954-78J00-000 |
— | ||
|
39
|
39
39510-78J00-000 PANEL UNIT,AUTO A/C |
39510-78J00-000 |
US $353.28 |
||
|
40
|
40
76418-78J00-000
Bolt
|
76418-78J00-000 |
— | ||
|
41
|
41
13762-78J00-000
NUT,M6
|
13762-78J00-000 |
— | ||
|
42
|
42
75849-78J00-000
CAP,R
|
75849-78J00-000 |
— | ||
|
42
|
42
75849-78J10-000
CAP,R
|
75849-78J10-000 |
— | ||
|
43
|
43
75845-78J00-000
CAP,L
|
75845-78J00-000 |
— | ||
|
43
|
43
75845-78J10-000
CAP,L
|
75845-78J10-000 |
— | ||
|
44
|
44
56119-78J00-000
Bolt
|
56119-78J00-000 |
— | ||
| replacement | |||||
|
44
|
44
38458-78J00-000
BOLT,M6X1X20
|
38458-78J00-000 |
— | ||
|
45
|
45
75848-78J00-000
CAP
|
75848-78J00-000 |
— | ||
|
45
|
45
75848-78J10-000
CAP
|
75848-78J10-000 |
— | ||
|
46
|
46
73114-78J00-000
BOLT,M4.2X1.41X25
|
73114-78J00-000 |
— | ||
