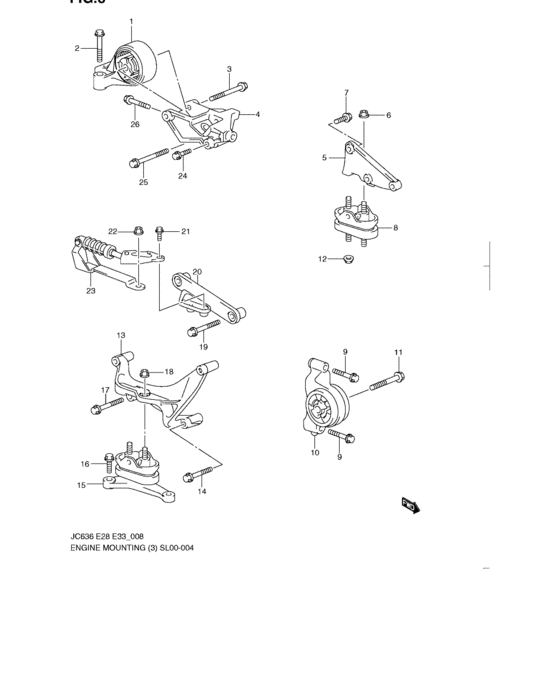

Engine mounting (07,08 MODEL:AWD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11710-78J01-000 MOUNTING,ENG RR |
11710-78J01-000 |
from US $93.02 |
||
|
2
|
2
11621-78J01-000
Bolt
|
11621-78J01-000 |
— | ||
|
3
|
3
11743-78J00-000
BOLT,12X135.9
|
11743-78J00-000 |
— | ||
|
4
|
4
11741-78J00-000
BRACKET,ENG RR MTG
|
11741-78J00-000 |
— | ||
|
5
|
5
11671-78J00-000 BRACKET,ENG,L |
11671-78J00-000 |
US $104.51 |
||
|
6
|
6
11623-78J00-000 NUT,M10 |
11623-78J00-000 |
US $9.35 |
||
|
7
|
7
11673-78J01-000
BOLT,10X50
|
11673-78J01-000 |
— | ||
|
8
|
8
11650-78J01-000 MOUNTING,ENG,L |
11650-78J01-000 |
from US $180.32 |
||
|
9
|
9
11621-78J01-000
Bolt
|
11621-78J01-000 |
— | ||
|
10
|
10
11620-78J00-000
MOUNTING,TRANS FR
|
11620-78J00-000 |
— | ||
|
11
|
11
11622-78J00-000
BOLT,12X115.9
|
11622-78J00-000 |
— | ||
|
12
|
12
11623-78J00-000 NUT,M10 |
11623-78J00-000 |
US $9.35 |
||
|
13
|
13
11760-78J01-000
BRACKET,ENG MTG,R
|
11760-78J01-000 |
— | ||
|
14
|
14
11762-78J00-000
BOLT,10X95
|
11762-78J00-000 |
— | ||
|
15
|
15
11720-78J02-000 MOUNTING,ENG,R |
11720-78J02-000 |
from US $122.40 |
||
|
16
|
16
11722-78J00-000
BOLT,10X45
|
11722-78J00-000 |
— | ||
|
17
|
17
11752-78J00-000
BOLT,12X108.4
|
11752-78J00-000 |
— | ||
|
18
|
18
11623-78J00-000 NUT,M10 |
11623-78J00-000 |
US $9.35 |
||
|
19
|
19
11752-78J00-000
BOLT,12X108.4
|
11752-78J00-000 |
— | ||
|
20
|
20
11750-78J00-000
BRACKET,ENG MTG SNUBBER
|
11750-78J00-000 |
— | ||
|
21
|
21
11732-78J00-000
BOLT,8X29
|
11732-78J00-000 |
— | ||
|
22
|
22
11733-78J00-000
NUT,M12
|
11733-78J00-000 |
— | ||
|
23
|
23
11730-78J02-000 SNUBBER,ENG MTG |
11730-78J02-000 |
US $193.20 |
||
|
24
|
24
11673-78J01-000
BOLT,10X50
|
11673-78J01-000 |
— | ||
|
25
|
25
11743-78J00-000
BOLT,12X135.9
|
11743-78J00-000 |
— | ||
|
26
|
26
11621-78J01-000
Bolt
|
11621-78J01-000 |
— |
