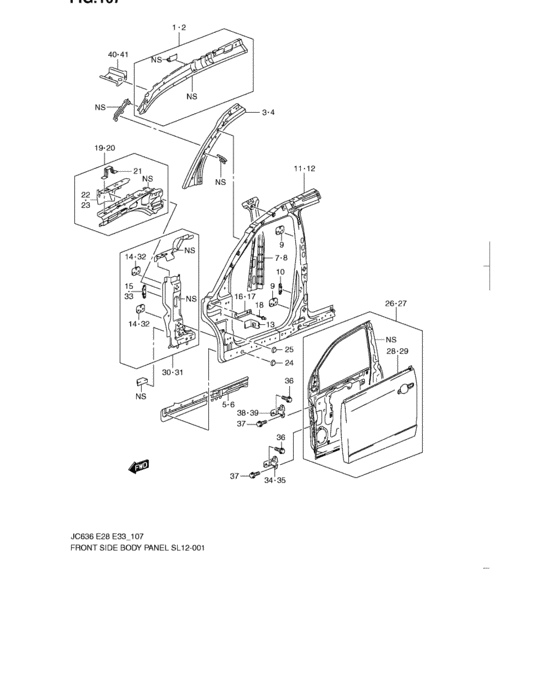

Front side body panel (FRONT SIDE BODY PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63110-78J01-000
PANEL,ROOF SIDE INR,R
|
63110-78J01-000 |
— | ||
|
2
|
2
63510-78J01-000
PANEL,ROOF SIDE INR,L
|
63510-78J01-000 |
— | ||
|
3
|
3
63131-78J01-000
REINFORCEMENT,FR PILLAR,R
|
63131-78J01-000 |
— | ||
|
4
|
4
63531-78J01-000
REINFORCEMENT,FR PILLAR,L
|
63531-78J01-000 |
— | ||
|
5
|
5
63211-78J00-000
EXTENSION,SIDE SILL,R
|
63211-78J00-000 |
— | ||
|
6
|
6
63611-78J00-000
EXTENSION,SIDE SILL,L
|
63611-78J00-000 |
— | ||
|
7
|
7
63221-78J00-000
PANEL,CTR PILLAR INNER,R
|
63221-78J00-000 |
— | ||
|
8
|
8
63621-78J00-000
PANEL,CTR PILLAR INNER,L
|
63621-78J00-000 |
— | ||
|
9
|
9
63243-78J00-000
RETAINER,DOOR HINGE
|
63243-78J00-000 |
— | ||
|
10
|
10
63149-78J00-000
RETAINER,FR DOOR
|
63149-78J00-000 |
— | ||
|
11
|
11
64110-78J00-000
PANEL,SIDE BODY OUTER FR,R
|
64110-78J00-000 |
— | ||
|
12
|
12
64510-78J00-000
PANEL,SIDE BODY OUTER FR,L
|
64510-78J00-000 |
— | ||
|
13
|
13
64117-78J00-000
BRACKET,FR FENDER
|
64117-78J00-000 |
— | ||
|
14
|
14
63243-78J00-000
RETAINER,DOOR HINGE
|
63243-78J00-000 |
— | ||
|
15
|
15
63149-78J00-000
RETAINER,FR DOOR
|
63149-78J00-000 |
— | ||
|
16
|
16
64115-78J00-000
REINFORCEMENT,FR PILLAR OTR,R
|
64115-78J00-000 |
— | ||
|
17
|
17
64116-78J00-000
REINFORCEMENT,FR PILLAR OTR,L
|
64116-78J00-000 |
— | ||
|
18
|
18
64114-78J00-000
RIVET
|
64114-78J00-000 |
— | ||
|
19
|
19
64130-78J01-000
MEMBER,FR BODY SIDE,R
|
64130-78J01-000 |
— | ||
|
20
|
20
64530-78J02-000
MEMBER,FR BODY SIDE,L
|
64530-78J02-000 |
— | ||
|
21
|
21
64139-78J00-000
BRACKET,FR SIDE MEMBER
|
64139-78J00-000 |
— | ||
|
22
|
22
64137-78J02-000
REINFORCEMENT,FR SIDE MEMBER,R
|
64137-78J02-000 |
— | ||
|
23
|
23
64138-78J02-000
REINFORCEMENT,FR SIDE MEMBER,L
|
64138-78J02-000 |
— | ||
|
24
|
24
64128-78J00-000
CAP
|
64128-78J00-000 |
— | ||
|
25
|
25
64119-78J00-000
CAP
|
64119-78J00-000 |
— | ||
|
26
|
26
68001-78J02-000
PANEL ASSY,FRONT DOOR,R
|
68001-78J02-000 |
— | ||
|
27
|
27
68002-78J02-000 PANEL ASSY,FRONT DOOR,L |
68002-78J02-000 |
US $577.28 |
||
|
28
|
28
68111-78J02-000
PANEL,FR DOOR OUTER,R
|
68111-78J02-000 |
— | ||
|
29
|
29
68311-78J02-000
PANEL,FR DOOR OUTER,L
|
68311-78J02-000 |
— | ||
|
30
|
30
63140-78J00-000
REINFORCEMENT,FR PILLAR,R
|
63140-78J00-000 |
— | ||
|
31
|
31
63540-78J00-000
REINFORCEMENT,FR PILLAR,L
|
63540-78J00-000 |
— | ||
|
32
|
32
63243-78J00-000
RETAINER,DOOR HINGE
|
63243-78J00-000 |
— | ||
|
33
|
33
63149-78J00-000
RETAINER,FR DOOR
|
63149-78J00-000 |
— | ||
|
34
|
34
69310-78J00-000 HINGE,DOOR |
69310-78J00-000 |
US $61.09 |
||
|
35
|
35
69320-78J00-000 HINGE,DOOR |
69320-78J00-000 |
US $61.09 |
||
|
36
|
36
69312-78J00-000
Bolt
|
69312-78J00-000 |
— | ||
|
37
|
37
69311-78J01-000
Bolt
|
69311-78J01-000 |
— | ||
|
38
|
38
69320-78J00-000 HINGE,DOOR |
69320-78J00-000 |
US $61.09 |
||
|
39
|
39
69310-78J00-000 HINGE,DOOR |
69310-78J00-000 |
US $61.09 |
||
|
40
|
40
63119-78J00-000
SUPPORT,ROOF SIDE PANEL,R
|
63119-78J00-000 |
— | ||
|
41
|
41
63519-78J00-000
SUPPORT,ROOF SIDE PANEL,L
|
63519-78J00-000 |
— |
