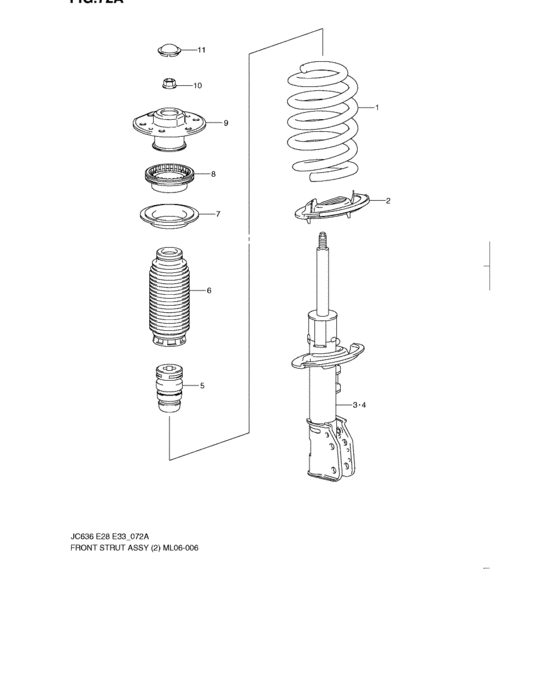

Front strut assy (08,09 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-78J00-000
SPRING,FRONT COIL
|
41111-78J00-000 |
— | ||
|
2
|
2
41240-78J00-000 SEAT,COIL SPRING LOWER |
41240-78J00-000 |
US $23.55 |
||
|
3
|
3
41602-78J20-000 STRUT ASSY,FR SUSPENSION,L |
41602-78J20-000 |
US $270.48 |
||
|
4
|
4
41601-78J20-000 STRUT ASSY,FR SUSPENSION,R |
41601-78J20-000 |
from US $195.03 |
||
|
5
|
5
42111-78J00-000
Stopper, bump
|
42111-78J00-000 |
— | ||
| replacement | |||||
|
5
|
5
42111-78J01-000
STOPPER,BUMP
|
42111-78J01-000 |
— | ||
|
6
|
6
41931-78J00-000
Cover,strut dust
|
41931-78J00-000 |
— | ||
| replacement | |||||
|
6
|
6
41931-78J01-000 COVER,STRUT DUST |
41931-78J01-000 |
US $9.02 |
||
|
7
|
7
41230-78J00-000
Seat, coil spring upper
|
41230-78J00-000 |
— | ||
| replacement | |||||
|
7
|
7
41230-78J02-000 SEAT,COIL SPRING UPPER |
41230-78J02-000 |
US $31.83 |
||
|
8
|
8
41741-78J00-000
Bearing, front strut
|
41741-78J00-000 |
— | ||
| replacement | |||||
|
8
|
8
41741-78J01-000 BEARING,FR STRUT |
41741-78J01-000 |
from US $112.98 |
||
|
9
|
9
41810-78J00-000 SUPPORT,FRONT STRUT |
41810-78J00-000 |
US $161.92 |
||
|
10
|
10
46118-78J00-000
NUT
|
46118-78J00-000 |
— | ||
|
11
|
11
41951-78J00-000
CAP
|
41951-78J00-000 |
— | ||
