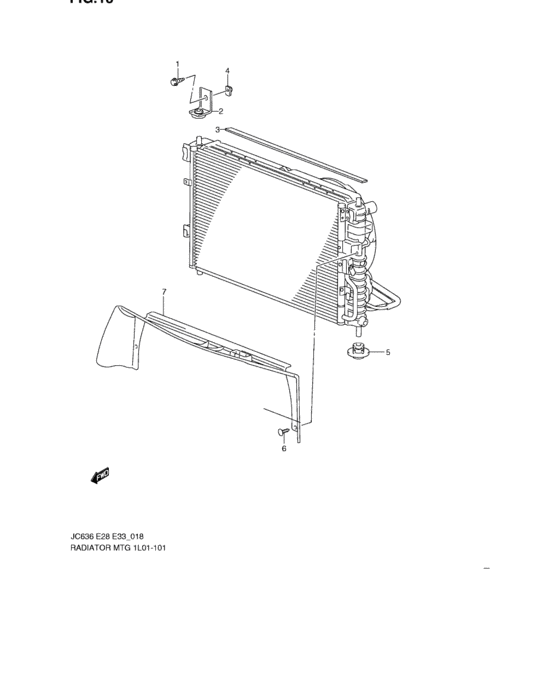

Radiator mounting (RADIATOR MOUNTING) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33616-78J00-000
Bolt
|
33616-78J00-000 |
— | ||
|
2
|
2
17811-78J00-000
BRACKET,RDTR SUPPORT
W/CUSHION |
17811-78J00-000 |
— | ||
|
3
|
3
17812-78J00-000
CUSHION,RDTR UPPER
|
17812-78J00-000 |
— | ||
|
4
|
4
17815-78J00-000
NUT,SUP BRKT
|
17815-78J00-000 |
— | ||
|
5
|
5
17813-78J00-000
CUSHION,RDTR LOWER,M8
|
17813-78J00-000 |
— | ||
|
6
|
6
17794-78J00-000
CLIP,DEFLECTOR
|
17794-78J00-000 |
— | ||
|
7
|
7
17790-78J00-000
DEFLECTOR,RDTR
|
17790-78J00-000 |
— |
