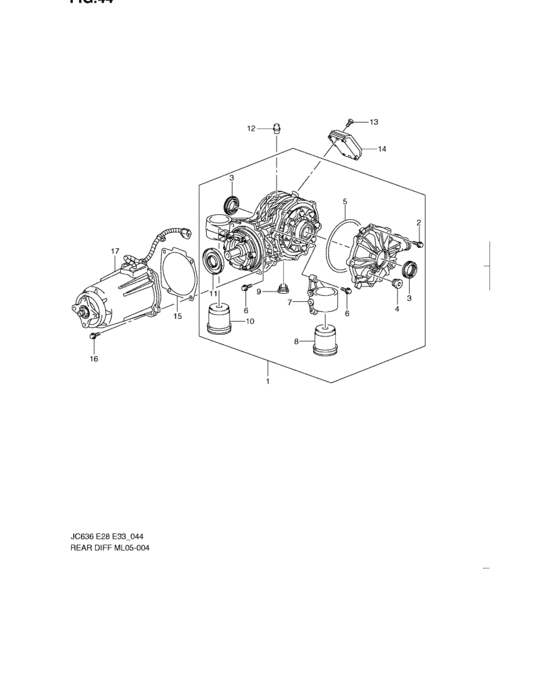

Rear differential (REAR DIFFERENTIAL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27301-78J00-000
DIFFERENTIAL ASSY,RR
|
27301-78J00-000 |
— | ||
| replacement | |||||
|
1
|
1
27301-78J03-000
DIFFERENTIAL ASSY,RR
|
27301-78J03-000 |
— | ||
|
2
|
2
29528-78J00-000
BOLT,8X30
|
29528-78J00-000 |
— | ||
|
3
|
3
27403-78J00-000 SEAL |
27403-78J00-000 |
US $230 |
||
|
4
|
4
29513-78J00-000
PLUG,LEVEL
|
29513-78J00-000 |
— | ||
|
5
|
5
27401-78J00-000
SEAL
|
27401-78J00-000 |
— | ||
|
6
|
6
29528-78J00-000
BOLT,8X30
|
29528-78J00-000 |
— | ||
|
7
|
7
29611-78J00-000
BUSH
|
29611-78J00-000 |
— | ||
|
8
|
8
27550-78J00-000 BUSH |
27550-78J00-000 |
US $60.72 |
||
|
9
|
9
29512-78J00-000
PLUG,DRAIN
|
29512-78J00-000 |
— | ||
|
10
|
10
27550-78J00-000 BUSH |
27550-78J00-000 |
US $60.72 |
||
|
11
|
11
27405-78J00-000 SEAL |
27405-78J00-000 |
US $96.78 |
||
|
12
|
12
27404-78J00-000
VENT,REAR DIFF
|
27404-78J00-000 |
— | ||
|
13
|
13
27901-78J00-000
Bolt
|
27901-78J00-000 |
— | ||
|
14
|
14
27900-78J01-000
Module,rr diff clutch cont
|
27900-78J01-000 |
— | ||
| replacement | |||||
|
14
|
14
27900-78J04-000 MODULE,RR DIFF CLUTCH CONT |
27900-78J04-000 |
US $1,162.72 |
||
|
15
|
15
27402-78J00-000 SEAL |
27402-78J00-000 |
US $9.02 |
||
|
16
|
16
29528-78J00-000
BOLT,8X30
|
29528-78J00-000 |
— | ||
|
17
|
17
27600-78J02-000
Housing assy,rr wheel drive
|
27600-78J02-000 |
— | ||
| replacement | |||||
|
17
|
17
27600-78J03-000
HOUSING ASSY,RR WHL DRIVE
|
27600-78J03-000 |
— | ||
