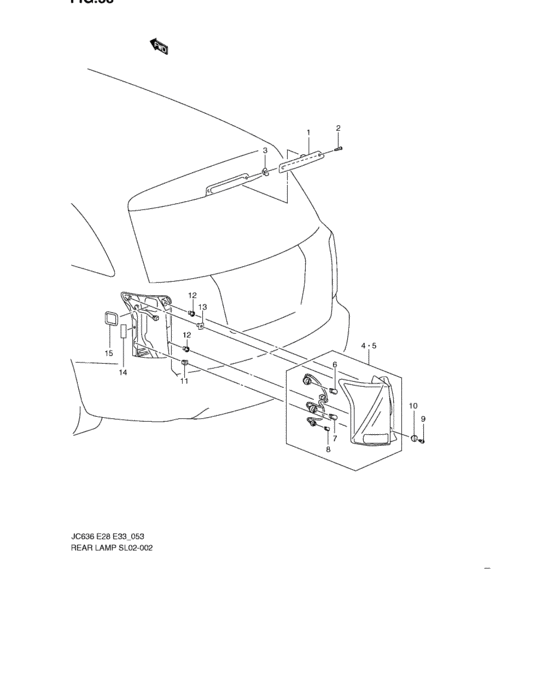

Rear lamp (REAR LAMP) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35810-78J01-000 LAMP ASSY,HIGH MT STOP |
35810-78J01-000 |
US $129.90 |
||
|
2
|
2
35899-78J00-000
Bolt
|
35899-78J00-000 |
— | ||
|
3
|
3
35102-78J00-000
NUT,M4.2X1.41
|
35102-78J00-000 |
— | ||
|
4
|
4
35603-78J10-000 LAMP ASSY,RR COMB,R |
35603-78J10-000 |
US $327.52 |
||
|
5
|
5
35604-78J10-000 LAMP ASSY,RR COMB,L |
35604-78J10-000 |
from US $289.80 |
||
|
6
|
6
35006-78J01-000 BULB |
35006-78J01-000 |
US $6.70 |
||
|
7
|
7
35006-78J01-000 BULB |
35006-78J01-000 |
US $6.70 |
||
|
8
|
8
35008-78J00-000
Bulb(12.8v 1.4a)
|
35008-78J00-000 |
— | ||
| replacement | |||||
|
8
|
8
35008-78J01-000 BULB,12.8V 1.4A |
35008-78J01-000 |
US $7.88 |
||
|
9
|
9
35619-78J00-000
BOLT,M5X1.81X16
|
35619-78J00-000 |
— | ||
|
10
|
10
35610-78J00-000
COVER
07 MODEL |
35610-78J00-000 |
— | ||
|
10
|
10
35610-78J10-000
COVER
08 MODEL,09 MODEL |
35610-78J10-000 |
— | ||
|
11
|
11
35153-78J00-000
GROMMET
|
35153-78J00-000 |
— | ||
|
12
|
12
35639-78J00-000
NUT,RR COMB LAMP
|
35639-78J00-000 |
— | ||
|
13
|
13
35153-78J11-000
GROMMET
|
35153-78J11-000 |
— | ||
|
14
|
14
36930-78J00-000
SEAL
|
36930-78J00-000 |
— | ||
|
15
|
15
36930-78J10-000
CAP
|
36930-78J10-000 |
— | ||
