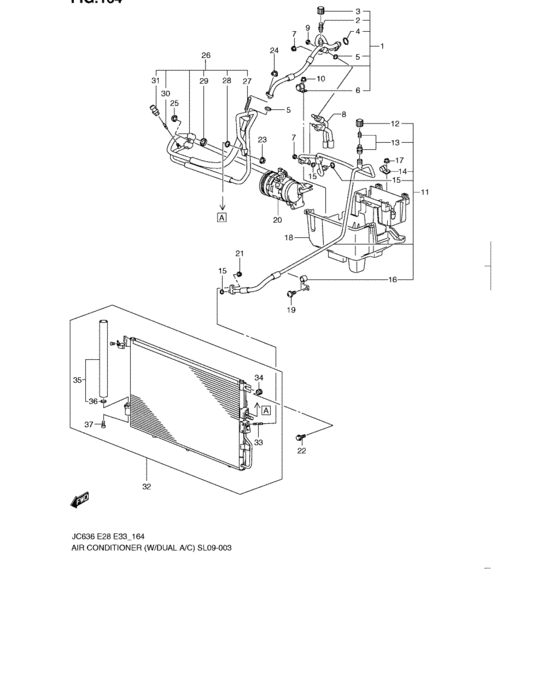

Air conditioner (W/DUAL AIR CONDITIONER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95710-78J10-000
HOSE,SUCTION
|
95710-78J10-000 |
— | ||
|
2
|
2
95711-78J00-000
VALVE
|
95711-78J00-000 |
— | ||
|
3
|
3
95712-78J00-000
CAP
07 MODEL,09 MODEL |
95712-78J00-000 |
— | ||
|
3
|
3
95734-78J00-000
CAP
08 MODEL |
95734-78J00-000 |
— | ||
|
4
|
4
95713-78J00-000 O-RING |
95713-78J00-000 |
US $17.44 |
||
|
5
|
5
95722-78J00-000
O-RING
|
95722-78J00-000 |
— | ||
|
6
|
6
95714-78J00-000
BRACKET
|
95714-78J00-000 |
— | ||
|
7
|
7
95715-78J00-000
NUT
|
95715-78J00-000 |
— | ||
|
8
|
8
74125-78J00-000
Pipe,evapo
|
74125-78J00-000 |
— | ||
| replacement | |||||
|
8
|
8
74125-78J01-000
PIPE,EVAPORATOR
|
74125-78J01-000 |
— | ||
|
9
|
9
95715-78J00-000
NUT
|
95715-78J00-000 |
— | ||
|
10
|
10
22911-78J00-000
NUT
|
22911-78J00-000 |
— | ||
|
11
|
11
95751-78J00-000
PIPE,LIQUID
|
95751-78J00-000 |
— | ||
|
12
|
12
95712-78J00-000
CAP
07 MODEL,09 MODEL |
95712-78J00-000 |
— | ||
|
12
|
12
95734-78J00-000
CAP
08 MODEL |
95734-78J00-000 |
— | ||
|
13
|
13
95732-78J00-000
CORE
|
95732-78J00-000 |
— | ||
|
14
|
14
95736-78J00-000
BRACKET
|
95736-78J00-000 |
— | ||
|
15
|
15
95735-78J00-000
O-RING
|
95735-78J00-000 |
— | ||
|
16
|
16
95737-78J00-000
Clip
|
95737-78J00-000 |
— | ||
|
17
|
17
22911-78J00-000
NUT
|
22911-78J00-000 |
— | ||
|
18
|
18
33660-78J01-000 TRAY,BATTERY |
33660-78J01-000 |
US $59.25 |
||
|
19
|
19
95715-78J00-000
NUT
|
95715-78J00-000 |
— | ||
|
20
|
20
95200-78J01-000
COMPRESSOR ASSY
|
95200-78J01-000 |
— | ||
|
21
|
21
95715-78J00-000
NUT
|
95715-78J00-000 |
— | ||
|
22
|
22
95738-78J00-000
Screw
|
95738-78J00-000 |
— | ||
|
23
|
23
95715-78J00-000
NUT
|
95715-78J00-000 |
— | ||
|
24
|
24
95715-78J00-000
NUT
|
95715-78J00-000 |
— | ||
|
25
|
25
95715-78J00-000
NUT
|
95715-78J00-000 |
— | ||
|
26
|
26
95720-78J01-000 HOSE,DISCHARGE |
95720-78J01-000 |
US $362.48 |
||
|
27
|
27
95716-78J00-000
BOLT,STUD
|
95716-78J00-000 |
— | ||
|
28
|
28
95735-78J00-000
O-RING
|
95735-78J00-000 |
— | ||
|
29
|
29
95722-78J00-000
O-RING
|
95722-78J00-000 |
— | ||
|
30
|
30
95721-78J00-000
Sensor
|
95721-78J00-000 |
— | ||
| replacement | |||||
|
30
|
30
95721-78J02-000
SENSOR
|
95721-78J02-000 |
— | ||
|
31
|
31
95711-78J00-000
VALVE
|
95711-78J00-000 |
— | ||
|
32
|
32
95310-78J01-000
Condenser
|
95310-78J01-000 |
— | ||
| replacement | |||||
|
32
|
32
95310-78J02-000 CONDENSER |
95310-78J02-000 |
US $675.84 |
||
|
33
|
33
95716-78J00-000
BOLT,STUD
|
95716-78J00-000 |
— | ||
|
34
|
34
95312-78J00-000
CUSHION
|
95312-78J00-000 |
— | ||
|
35
|
35
95330-78J01-000
Receiver, dryer
07 MODEL,08 MODEL |
95330-78J01-000 |
— | ||
| replacement | |||||
|
35
|
35
95330-78J11-000
RECEIVER DRYER
07 MODEL,08 MODEL |
95330-78J11-000 |
— | ||
|
35
|
35
95330-78J10-000
Receiver, dryer
09 MODEL |
95330-78J10-000 |
— | ||
|
36
|
36
95331-78J00-000 O-RING |
95331-78J00-000 |
US $10.01 |
||
|
37
|
37
95332-78J10-000
Bolt
|
95332-78J10-000 |
— | ||
