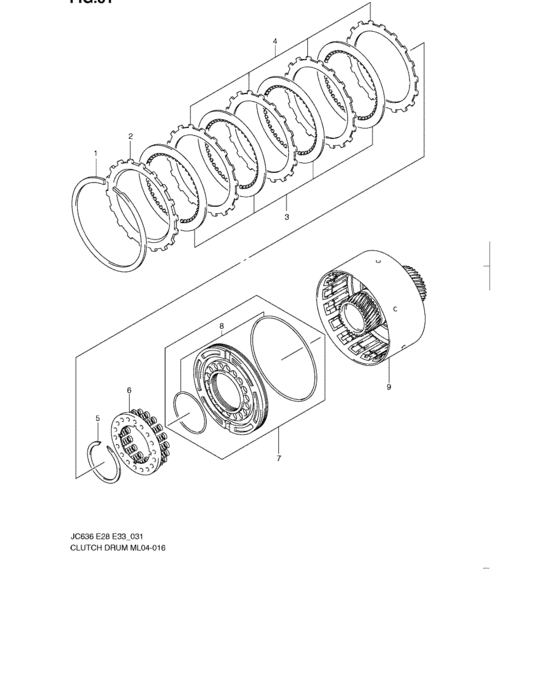

Clutch drum (07,08 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26915-78J00-000
RING,4-5 CLUTCH BRAKE PLATE
|
26915-78J00-000 |
— | ||
|
2
|
2
26913-78J00-036
PLATE,4-5 CL BRAKE T:3.6
|
26913-78J00-036 |
— | ||
|
2
|
2
26913-78J00-038
PLATE,4-5 CL BRAKE T:3.8
|
26913-78J00-038 |
— | ||
|
2
|
2
26913-78J00-040
PLATE,4-5 CL BRAKE T:4.0
|
26913-78J00-040 |
— | ||
|
3
|
3
26911-78J00-000
PLATE SET,4-5 CL FIBER
|
26911-78J00-000 |
— | ||
|
4
|
4
26912-78J00-000
PLATE SET,4-5 CL STEEL
|
26912-78J00-000 |
— | ||
|
5
|
5
26924-78J00-000
RING,4-5 CLUTCH PSTN SPR
|
26924-78J00-000 |
— | ||
|
6
|
6
26923-78J00-000
SPRING,4-5 CLUTCH PSTN
|
26923-78J00-000 |
— | ||
|
7
|
7
26921-78J00-000
PISTON SET,4-5 CL
|
26921-78J00-000 |
— | ||
|
8
|
8
26922-78J00-000
SEAL KIT,4-5 CLUTCH PSTN
|
26922-78J00-000 |
— | ||
|
9
|
9
26916-78J00-000
DRUM,4-5 CLU
|
26916-78J00-000 |
— |
