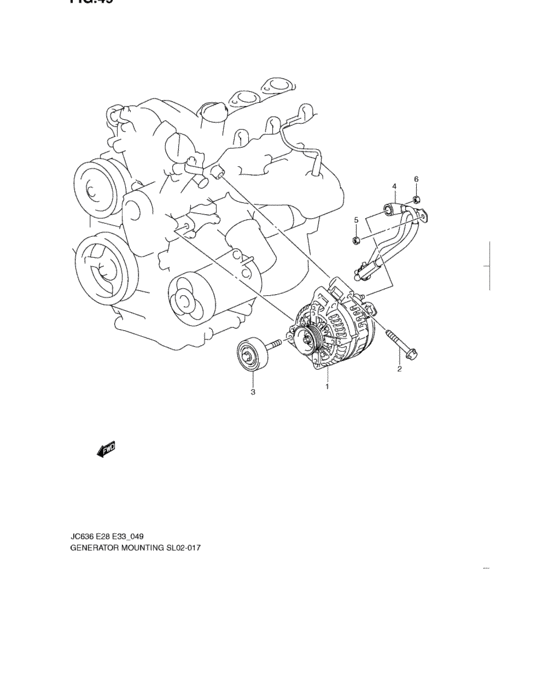

Generator mounting (GENERATOR MOUNTING) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-78J00-000
Generator assy
2ROW SEAT |
31400-78J00-000 |
— | ||
| replacement | |||||
|
1
|
1
31400-78J01-000
GENERATOR ASSY
2ROW SEAT |
31400-78J01-000 |
— | ||
|
1
|
1
31400-78J10-000
GENERATOR ASSY
3ROW SEAT |
31400-78J10-000 |
— | ||
| replacement | |||||
|
1
|
1
31400-78J11-000 GENERATOR ASSY3ROW SEAT |
31400-78J11-000 |
US $770.88 |
||
|
2
|
2
31419-78J00-000
Bolt
|
31419-78J00-000 |
— | ||
|
3
|
3
17530-78J01-000 PULLEY,BELT IDLER |
17530-78J01-000 |
US $114.45 |
||
|
4
|
4
31499-78J00-000
HARNESS ASSY,GENERATOR
|
31499-78J00-000 |
— | ||
|
5
|
5
33627-78J00-000
NUT,M8X1.25X6
|
33627-78J00-000 |
— | ||
|
6
|
6
31418-78J00-000
NUT
|
31418-78J00-000 |
— | ||
