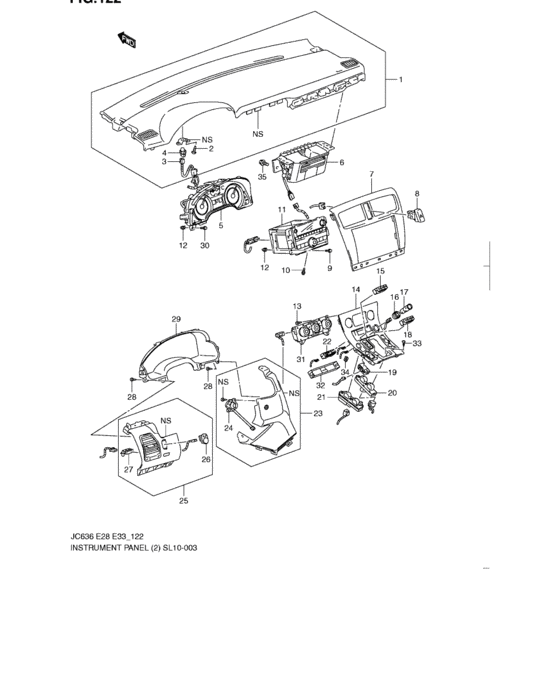

Instrument panel (2) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-78J02-000
PANEL,INSTR UPPER
|
73111-78J02-000 |
— | ||
|
2
|
2
73116-78J00-000
Bolt
|
73116-78J00-000 |
— | ||
|
3
|
3
38689-78J00-000
HARNESS,LIGHT SENSOR
|
38689-78J00-000 |
— | ||
|
4
|
4
38680-78J10-000
SENSOR,LIGHT
|
38680-78J10-000 |
— | ||
|
5
|
5
34100-78J23-000
Speedometer assy
07 MODEL:MILE |
34100-78J23-000 |
— | ||
| replacement | |||||
|
5
|
5
34100-78J24-000
SPEEDOMETER ASSY
07 MODEL:MILE |
34100-78J24-000 |
— | ||
|
5
|
5
34100-78J33-000
Speedometer assy
07 MODEL:KILOMETER |
34100-78J33-000 |
— | ||
| replacement | |||||
|
5
|
5
34100-78J34-000 SPEEDOMETER ASSY07 MODEL:KILOMETER |
34100-78J34-000 |
US $637.12 |
||
|
5
|
5
34100-78J71-000
SPEEDOMETER ASSY
08 MODEL:MILE |
34100-78J71-000 |
— | ||
| replacement | |||||
|
5
|
5
34100-78J80-000
Speedometer assy
08 MODEL:MILE |
34100-78J80-000 |
— | ||
|
5
|
5
34100-78J53-000
Speedometer assy
08 MODEL:KILOMETER |
34100-78J53-000 |
— | ||
| replacement | |||||
|
5
|
5
34100-78J90-000
SPEEDOMETER ASSY,KILO/MILE
08 MODEL:KILOMETER |
34100-78J90-000 |
— | ||
|
5
|
5
34100-78J80-000
Speedometer assy
09 MODEL:MILE |
34100-78J80-000 |
— | ||
|
5
|
5
34100-78J90-000
SPEEDOMETER ASSY,KILO/MILE
09 MODEL:KILOMETER |
34100-78J90-000 |
— | ||
|
6
|
6
73920-78J02-000
MODULE,PASS A/B
|
73920-78J02-000 |
— | ||
|
7
|
7
73821-78J00-000
GARNISH,CENTER
|
73821-78J00-000 |
— | ||
|
8
|
8
37430-78J00-000 SWITCH,HAZARD WARNING |
37430-78J00-000 |
US $40.11 |
||
|
9
|
9
73114-78J00-000
BOLT,M4.2X1.41X25
|
73114-78J00-000 |
— | ||
|
10
|
10
48159-78J01-000
Bolt
|
48159-78J01-000 |
— | ||
|
11
|
11
39101-78J50-000
TUNER ASSY,AM/FM CD N/MP3
07 MODEL,CD TUNER,N/MP3 |
39101-78J50-000 |
— | ||
|
11
|
11
39101-78J74-000
TUNER ASSY,AM/FM CD N/MP3
08 MODEL,CD TUNER,N/MP3 |
39101-78J74-000 |
— | ||
|
11
|
11
39101-78JE0-000
TUNER,AM/FM CD N/MP3
09 MODEL,CD TUNER,N/MP3 |
39101-78JE0-000 |
— | ||
|
11
|
11
39101-78J60-000
Tuner assy
CD TUNER,W/MP3 |
39101-78J60-000 |
— | ||
|
11
|
11
39101-78J41-000
TUNER ASSY,AM/FM CD DVD
DVD TUNER,N/MP3 |
39101-78J41-000 |
— | ||
|
12
|
12
39109-78J00-000
NUT,M4.2X1.41
|
39109-78J00-000 |
— | ||
|
13
|
13
73619-78J00-000
SCREW
|
73619-78J00-000 |
— | ||
|
14
|
14
73830-78J01-000
GARNISH,I/P CTR LWR
|
73830-78J01-000 |
— | ||
|
15
|
15
34609-78J00-000
SWITCH,INFORMATION DISPLAY
California |
34609-78J00-000 |
— | ||
|
15
|
15
34609-78J10-000
Indicator, i/p module
Canada |
34609-78J10-000 |
— | ||
|
16
|
16
39419-78J00-000
RETAINER
|
39419-78J00-000 |
— | ||
|
17
|
17
39410-78J00-000
Receptacle
|
39410-78J00-000 |
— | ||
| replacement | |||||
|
17
|
17
39410-78J01-000
RECEPTACLE
|
39410-78J01-000 |
— | ||
|
18
|
18
37370-78J00-000
SWITCH,RR WIPER&FR FOG
OPT,W/FOG LAMP |
37370-78J00-000 |
— | ||
|
18
|
18
37370-78J10-000
SWITCH,RR WIPER
OPT,N/FOG LAMP |
37370-78J10-000 |
— | ||
|
19
|
19
34610-78J00-000
INDICATOR,TRANS CONT
|
34610-78J00-000 |
— | ||
|
20
|
20
37990-78J00-000 SWITCH,SIDE WINDOW,R |
37990-78J00-000 |
US $71.39 |
||
|
21
|
21
37995-78J00-000
SWITCH,SIDE WINDOW,L
|
37995-78J00-000 |
— | ||
|
22
|
22
34600-78J00-000
SWITCH,DRIVE INFORMATION CTR
|
34600-78J00-000 |
— | ||
|
23
|
23
73832-78J71-000 PANEL,I/P LOWER,R(GRAY)07 MODEL,BASE,LUXURY PKG,LUXURY DVD PKG,JX |
73832-78J71-000 |
US $252.08 |
||
|
23
|
23
73832-78J61-000
PANEL,I/P LOWER,R(BEIGE)
07 MODEL,BASE,LUXURY PKG,LUXURY DVD PKG,JX |
73832-78J61-000 |
— | ||
|
23
|
23
73832-78J51-000
PANEL,I/P LOWER,R(GRAY)
LIMITED DVD PKG,07 MODEL,LIMITED PLATINUM PKG,JLX,JLX DVD,JLX NAVI |
73832-78J51-000 |
— | ||
|
23
|
23
73832-78J41-000
PANEL,I/P LOWER,R(BEIGE)
07 MODEL,LIMITED DVD PKG,LIMITED PLATINUM PKG,JLX,JLX DVD,JLX NAVI |
73832-78J41-000 |
— | ||
|
24
|
24
95656-78J00-000
ASPIRATOR
W/AUTO AIR CONDITIONER |
95656-78J00-000 |
— | ||
|
25
|
25
73831-78J71-000
PANEL,I/P LOWER,L(GRAY)
07 MODEL,BASE,LUXURY PKG,LUXURY DVD PKG,JX |
73831-78J71-000 |
— | ||
|
25
|
25
73831-78J61-000
PANEL,I/P LOWER,L(BEIGE)
07 MODEL,BASE,LUXURY PKG,LUXURY DVD PKG,JX |
73831-78J61-000 |
— | ||
|
25
|
25
73831-78J51-000
PANEL,I/P LOWER,L(GRAY)
07 MODEL,LIMITED DVD PKG,LIMITED PLATINUM PKG,JLX,JLX DVD,JLX NAVI |
73831-78J51-000 |
— | ||
|
25
|
25
73831-78J41-000
PANEL,I/P LOWER,L(BEIGE)
07 MODEL,LIMITED DVD PKG,LIMITED PLATINUM PKG,JLX,JLX DVD,JLX NAVI |
73831-78J41-000 |
— | ||
|
26
|
26
37950-78J00-000
SWITCH,RR VIEW MIRROR
OPT |
37950-78J00-000 |
— | ||
|
26
|
26
37950-78J10-000
SWITCH,RR VIEW MIRROR
OPT |
37950-78J10-000 |
— | ||
|
27
|
27
34608-78J10-000
SWITCH,I/P LAMP DIMR
OPT |
34608-78J10-000 |
— | ||
|
27
|
27
34608-78J20-000
SWITCH,I/P LAMP DIMR
OPT |
34608-78J20-000 |
— | ||
|
28
|
28
73116-78J00-000
Bolt
|
73116-78J00-000 |
— | ||
|
29
|
29
73311-78J01-000
PANEL,INSTR CLST
|
73311-78J01-000 |
— | ||
|
30
|
30
34109-78J00-000
BOLT,CLUSTER
|
34109-78J00-000 |
— | ||
|
31
|
31
95610-78J03-000
Control,air conditioner
07 MODEL,08 MODEL,W/RR AIR CONDITIONER,N/SEAT HEATER |
95610-78J03-000 |
— | ||
| replacement | |||||
|
31
|
31
95610-78JB0-000
CONTROL,AIR CONDITIONER
07 MODEL,08 MODEL,W/RR AIR CONDITIONER,N/SEAT HEATER |
95610-78JB0-000 |
— | ||
|
31
|
31
95610-78J81-000
CONTROL,AIR CONDITIONER
07 MODEL,08 MODEL Canada,W/RR AIR CONDITIONER,N/SEAT HEATER |
95610-78J81-000 |
— | ||
|
31
|
31
95610-78J23-000
CONTROL,AIR CONDITIONER
07 MODEL,08 MODEL California,W/RR AIR CONDITIONER,W/SEAT HEATER |
95610-78J23-000 |
— | ||
| replacement | |||||
|
31
|
31
95610-78JD0-000
CONTROL,AIR CONDITIONER
07 MODEL,08 MODEL California,W/RR AIR CONDITIONER,W/SEAT HEATER |
95610-78JD0-000 |
— | ||
|
31
|
31
95610-78J33-000
CONTROL,AIR CONDITIONER
07 MODEL,08 MODEL Canada,W/SEAT HEATER |
95610-78J33-000 |
— | ||
|
31
|
31
95610-78J44-000
CONTROL,AIR CONDITIONER
07 MODEL,08 MODEL California,N/RR AIR CONDITIONER,W/SEAT HEATER |
95610-78J44-000 |
— | ||
|
31
|
31
95610-78J92-000
CONTROL,AIR CONDITIONER
07 MODEL,08 MODEL California,N/RR AIR CONDITIONER,N/SEAT HEATER |
95610-78J92-000 |
— | ||
|
31
|
31
95610-78JA2-000
Control, air conditioner
08 MODEL Canada,N/RR AIR CONDITIONER,N/SEAT HEATER |
95610-78JA2-000 |
— | ||
|
31
|
31
95610-78JB0-000
CONTROL,AIR CONDITIONER
09 MODEL California,N/SEAT HEATER |
95610-78JB0-000 |
— | ||
|
31
|
31
95610-78JD0-000
CONTROL,AIR CONDITIONER
09 MODEL California,W/SEAT HEATER |
95610-78JD0-000 |
— | ||
|
31
|
31
95610-78JF0-000
CONTROL,AIR CONDITIONER
09 MODEL Canada,N/RR AIR CONDITIONER,W/SEAT HEATER |
95610-78JF0-000 |
— | ||
|
31
|
31
95610-78JE0-000
CONTROL,AIR CONDITIONER
09 MODEL Canada,W/RR AIR CONDITIONER |
95610-78JE0-000 |
— | ||
|
32
|
32
73830-78J10-000
BEZEL,I/P LOWER
|
73830-78J10-000 |
— | ||
|
33
|
33
73834-78J00-000
SCREW,I/P CENTER LOWER
|
73834-78J00-000 |
— | ||
|
34
|
34
73829-78J00-000
CLIP
|
73829-78J00-000 |
— | ||
|
35
|
35
38458-78J00-000
BOLT,M6X1X20
|
38458-78J00-000 |
— | ||
