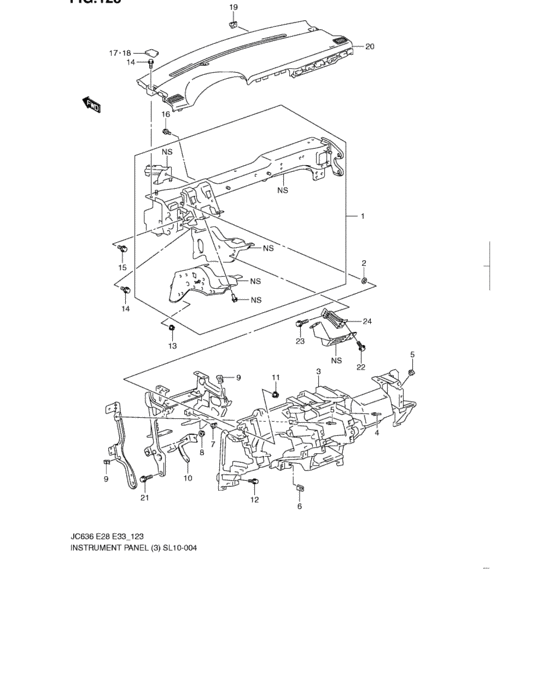

Instrument panel (3) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73200-78J10-000
Bar,i/p tie
|
73200-78J10-000 |
— | ||
| replacement | |||||
|
1
|
1
73200-78J00-000
BAR,INSTRUMENT PANEL TIE
|
73200-78J00-000 |
— | ||
|
2
|
2
73117-78J00-000
INSULATOR,I/P
|
73117-78J00-000 |
— | ||
|
3
|
3
73112-78J02-000
RETAINER,I/P
|
73112-78J02-000 |
— | ||
|
4
|
4
73209-78J00-000
RIVET
|
73209-78J00-000 |
— | ||
|
5
|
5
73118-78J00-000
NUT
|
73118-78J00-000 |
— | ||
|
6
|
6
73115-78J00-000
NUT
|
73115-78J00-000 |
— | ||
|
7
|
7
73206-78J00-000
NUT
|
73206-78J00-000 |
— | ||
|
8
|
8
73206-78J00-000
NUT
|
73206-78J00-000 |
— | ||
|
9
|
9
76229-78J01-000
NUT
|
76229-78J01-000 |
— | ||
|
10
|
10
73261-78J02-000
NUT
|
73261-78J02-000 |
— | ||
|
11
|
11
56118-78J00-000
NUT
|
56118-78J00-000 |
— | ||
|
12
|
12
73207-78J00-000
Bolt
|
73207-78J00-000 |
— | ||
|
13
|
13
73205-78J00-000
NUT
|
73205-78J00-000 |
— | ||
|
14
|
14
28174-78J00-000
BOLT,8X25
|
28174-78J00-000 |
— | ||
|
15
|
15
73208-78J00-000
Bolt
|
73208-78J00-000 |
— | ||
|
16
|
16
73202-78J00-000
Bolt
|
73202-78J00-000 |
— | ||
|
17
|
17
73813-78J00-000
CAP,INSTRUMENT PANEL,R
|
73813-78J00-000 |
— | ||
|
18
|
18
73812-78J00-000
CAP,INSTRUMENT PANEL,L
|
73812-78J00-000 |
— | ||
|
19
|
19
73121-78J00-000
RETAINER,I/P UPPER
|
73121-78J00-000 |
— | ||
|
20
|
20
73111-78J02-000
PANEL,INSTR UPPER
|
73111-78J02-000 |
— | ||
|
21
|
21
28174-78J00-000
BOLT,8X25
|
28174-78J00-000 |
— | ||
|
22
|
22
56119-78J00-000
Bolt
|
56119-78J00-000 |
— | ||
| replacement | |||||
|
22
|
22
38458-78J00-000
BOLT,M6X1X20
|
38458-78J00-000 |
— | ||
|
23
|
23
73208-78J10-000
Bolt
|
73208-78J10-000 |
— | ||
|
24
|
24
73209-78J10-000
REINF,I/P DR KNEEBOLSTER,R
|
73209-78J10-000 |
— | ||
|
24
|
24
73209-78J20-000
REINF,I/P DR KNEEBOLSTER,L
|
73209-78J20-000 |
— | ||
