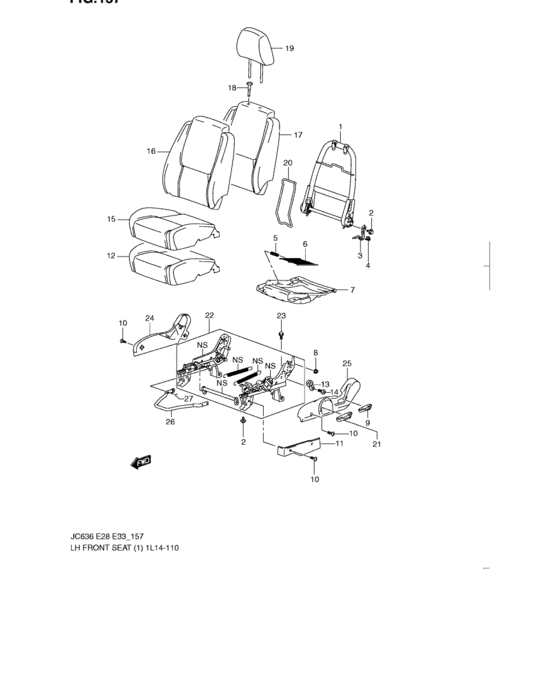

Lh front seat (W/CLOTH) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85803-78J00-000
FRAME,FR SEAT BACK,L
|
85803-78J00-000 |
— | ||
|
2
|
2
85815-78J00-000
Bolt
|
85815-78J00-000 |
— | ||
|
3
|
3
85816-78J00-000
LEVER,RCLNG,L
|
85816-78J00-000 |
— | ||
|
4
|
4
85112-78J10-000
SPRING,RECLINING
|
85112-78J10-000 |
— | ||
|
5
|
5
85111-78J00-000
SPRING,CUSH PAD
|
85111-78J00-000 |
— | ||
|
6
|
6
85112-78J00-000
WIRE,CUSH PAD
|
85112-78J00-000 |
— | ||
|
7
|
7
85110-78J00-000
FRAME,CUSH,R
|
85110-78J00-000 |
— | ||
|
8
|
8
85114-78J00-000
NUT
|
85114-78J00-000 |
— | ||
|
9
|
9
85711-78J00-000
HANDLE,RECL,L
|
85711-78J00-000 |
— | ||
|
9
|
9
85711-78J10-000
HANDLE,RECL,L
|
85711-78J10-000 |
— | ||
|
10
|
10
85722-78J00-000
Bolt
|
85722-78J00-000 |
— | ||
|
11
|
11
85721-78J00-000
COVER,L
|
85721-78J00-000 |
— | ||
|
11
|
11
85721-78J10-000
COVER,L
|
85721-78J10-000 |
— | ||
|
12
|
12
85160-78J11-000
Pad, seat cushion
|
85160-78J11-000 |
— | ||
|
13
|
13
86646-78J00-000
PLATE,FR SEAT
|
86646-78J00-000 |
— | ||
|
14
|
14
84993-78J00-000
Bolt
|
84993-78J00-000 |
— | ||
|
15
|
15
85680-78J20-000
TRIM,SEAT CUSHION
|
85680-78J20-000 |
— | ||
|
15
|
15
85680-78J30-000
TRIM,SEAT CUSHION
|
85680-78J30-000 |
— | ||
|
16
|
16
85880-78J20-000
TRIM,SEAT BACK
|
85880-78J20-000 |
— | ||
|
16
|
16
85880-78J30-000
TRIM,SEAT BACK
|
85880-78J30-000 |
— | ||
|
17
|
17
85860-78J00-000
PAD,SEAT BACK
|
85860-78J00-000 |
— | ||
|
18
|
18
85341-78J02-000
GUIDE,HEADRESTRAINT
N/BUTTON |
85341-78J02-000 |
— | ||
|
18
|
18
85341-78J10-000
GUIDE,HEADRESTRAINT(N/BUTTON)
N/BUTTON |
85341-78J10-000 |
— | ||
|
18
|
18
85840-78J01-000
GUIDE,HEADRESTRAINT
W/BUTTON |
85840-78J01-000 |
— | ||
|
18
|
18
85840-78J21-000
Guide, headrestraint
W/BUTTON |
85840-78J21-000 |
— | ||
| replacement | |||||
|
18
|
18
85840-78J20-000
GUIDE,HEADRESTRAINT(W/BUTTON)
W/BUTTON |
85840-78J20-000 |
— | ||
|
19
|
19
86401-78J60-000
HEADRESTRAINT ASSY
07 MODEL |
86401-78J60-000 |
— | ||
|
19
|
19
86401-78J70-000
HEADRESTRAINT ASSY
07 MODEL |
86401-78J70-000 |
— | ||
|
19
|
19
86401-78JE0-000
Headrestraint assy
08 MODEL,09 MODEL |
86401-78JE0-000 |
— | ||
|
19
|
19
86401-78JF0-000
Headrestraint assy
08 MODEL,09 MODEL |
86401-78JF0-000 |
— | ||
|
20
|
20
85112-78J00-000
WIRE,CUSH PAD
|
85112-78J00-000 |
— | ||
|
21
|
21
85713-78J10-000
HANDLE,LIFTER
|
85713-78J10-000 |
— | ||
|
21
|
21
85713-78J30-000
HANDLE,LIFTER
|
85713-78J30-000 |
— | ||
|
22
|
22
86601-78J10-000
Adjuster assy
|
86601-78J10-000 |
— | ||
| replacement | |||||
|
22
|
22
86601-78J11-000
Adjuster assy
|
86601-78J11-000 |
— | ||
|
23
|
23
86717-78J20-000
Bolt
|
86717-78J20-000 |
— | ||
|
24
|
24
85740-78J30-000
COVER,ADJUSTER INSIDE
|
85740-78J30-000 |
— | ||
|
24
|
24
85740-78J20-000
COVER,ADJUSTER INSIDE
|
85740-78J20-000 |
— | ||
|
25
|
25
85720-78J20-000
COVER,RECL OUTSIDE,R
|
85720-78J20-000 |
— | ||
|
25
|
25
85720-78J30-000
COVER,RECL OUTSIDE,R
|
85720-78J30-000 |
— | ||
|
26
|
26
86691-78J10-000
HANDLE,ADJ
|
86691-78J10-000 |
— | ||
|
27
|
27
86692-78J00-000
WASHER
|
86692-78J00-000 |
— | ||
