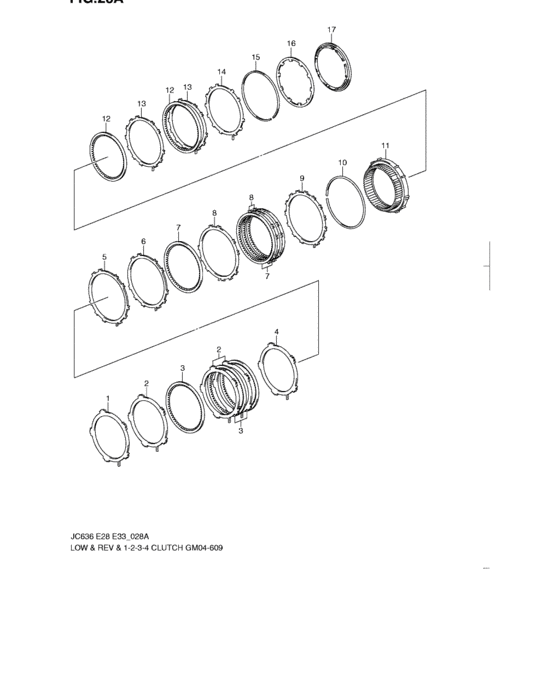

Low & rev & 1-2-3-4 clutch (09 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26845-78J20-000
SPRING,2-6 CLUTCH
|
26845-78J20-000 |
— | ||
|
2
|
2
26848-78J20-000
PLATE,2-6 CLUTCH
|
26848-78J20-000 |
— | ||
|
3
|
3
26849-78J20-000
PLATE,2-6 CLUTCH FRICTION
|
26849-78J20-000 |
— | ||
|
4
|
4
26844-78J20-000
PLATE,2-6 CLUTCH BKG
|
26844-78J20-000 |
— | ||
|
5
|
5
26843-78J20-000
PLATE,LOW&REV CL APPLY
|
26843-78J20-000 |
— | ||
|
6
|
6
26842-78J20-000
SPRING,LOW&REV CLUTCH WAVE
|
26842-78J20-000 |
— | ||
|
7
|
7
26846-78J20-000
PLATE,LOW&REV CL FRICTION
|
26846-78J20-000 |
— | ||
|
8
|
8
26847-78J20-000
PLATE,LOW&REV CLUTCH
|
26847-78J20-000 |
— | ||
|
9
|
9
26841-78J20-000
PLATE,LOW&REV CLUTCH BKG
|
26841-78J20-000 |
— | ||
|
10
|
10
26851-78J20-000
RING,LOW&REV CLUTCH RETURN
|
26851-78J20-000 |
— | ||
|
11
|
11
26852-78J20-000
CLUTCH,LOW&REV
|
26852-78J20-000 |
— | ||
|
12
|
12
26853-78J20-000
PLATE,1-2-3-4 CLUTCH FRICTION
|
26853-78J20-000 |
— | ||
|
13
|
13
26854-78J20-000
PLATE,1-2-3-4 CLUTCH
|
26854-78J20-000 |
— | ||
|
14
|
14
26855-78J20-000
PLATE,1-2-3-4 CLUTCH WAVE
|
26855-78J20-000 |
— | ||
|
15
|
15
26856-78J20-000
RING,1-2-3-4 CLUTCH SPRING RET
|
26856-78J20-000 |
— | ||
|
16
|
16
26857-78J20-000
SPRING,1-2-3-4 CLUTCH
|
26857-78J20-000 |
— | ||
|
17
|
17
26858-78J20-000
Piston, 1-2-3-4 clu
|
26858-78J20-000 |
— |
