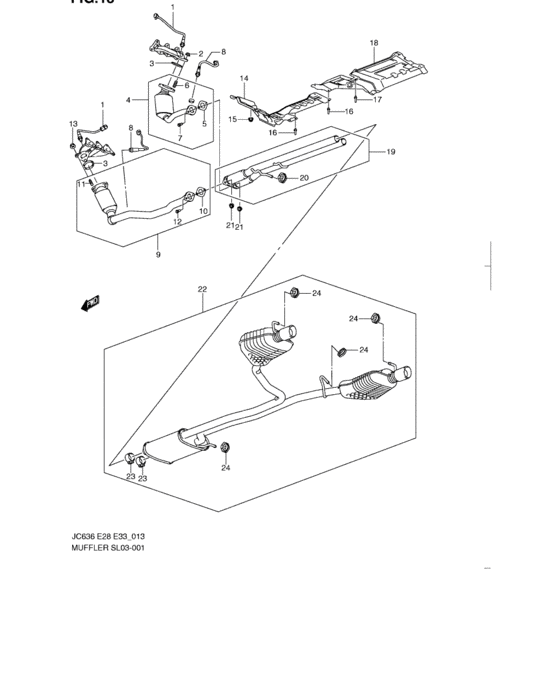

Muffler (MUFFLER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18213-78J00-000 SENSOR,OXYGEN |
18213-78J00-000 |
from US $480.94 |
||
|
2
|
2
11623-78J00-000 NUT,M10 |
11623-78J00-000 |
US $9.35 |
||
|
3
|
3
14184-78J00-000 GASKET,EXH MANF |
14184-78J00-000 |
US $32.38 |
||
|
4
|
4
14191-78J01-000
PIPE,EXHAUST,R
|
14191-78J01-000 |
— | ||
|
5
|
5
14184-78J11-000
GASKET,EXH PIPE
|
14184-78J11-000 |
— | ||
|
6
|
6
14195-78J00-000 STUD BOLT |
14195-78J00-000 |
US $9.02 |
||
|
7
|
7
14194-78J00-000
Bolt
|
14194-78J00-000 |
— | ||
|
8
|
8
18213-78J10-000 SENSOR,OXYGEN |
18213-78J10-000 |
US $531.52 |
||
|
9
|
9
14192-78J01-000
PIPE,EXHAUST,L
|
14192-78J01-000 |
— | ||
|
10
|
10
14184-78J11-000
GASKET,EXH PIPE
|
14184-78J11-000 |
— | ||
|
11
|
11
14195-78J00-000 STUD BOLT |
14195-78J00-000 |
US $9.02 |
||
|
12
|
12
14194-78J00-000
Bolt
|
14194-78J00-000 |
— | ||
|
13
|
13
11623-78J00-000 NUT,M10 |
11623-78J00-000 |
US $9.35 |
||
|
14
|
14
14231-78J00-000
SHIELD,HEAT NO.1
|
14231-78J00-000 |
— | ||
| replacement | |||||
|
14
|
14
14231-78J10-000
SHIELD,HEAT NO.1
|
14231-78J10-000 |
— | ||
|
14
|
14
14231-78J10-000
SHIELD,HEAT NO.1
SEE NOTE |
14231-78J10-000 |
— | ||
|
15
|
15
14234-78J00-000
NUT,M6
|
14234-78J00-000 |
— | ||
|
16
|
16
14235-78J00-000
RIVET
|
14235-78J00-000 |
— | ||
|
17
|
17
14235-78J00-000
RIVET
|
14235-78J00-000 |
— | ||
|
18
|
18
14232-78J00-000
SHIELD,HEAT NO.2
|
14232-78J00-000 |
— | ||
|
19
|
19
14250-78J01-000
PIPE,EXH CENTER
|
14250-78J01-000 |
— | ||
|
20
|
20
14281-78J00-000
MOUNTING
|
14281-78J00-000 |
— | ||
|
21
|
21
1411C-78J00-000 NUT,M8 |
1411C-78J00-000 |
US $12.44 |
||
|
22
|
22
14300-78J01-000
MUFFLER ASSY
|
14300-78J01-000 |
— | ||
|
23
|
23
14271-78J00-000
CLAMP,MUFFLER
|
14271-78J00-000 |
— | ||
|
24
|
24
14281-78J00-000
MOUNTING
|
14281-78J00-000 |
— | ||
