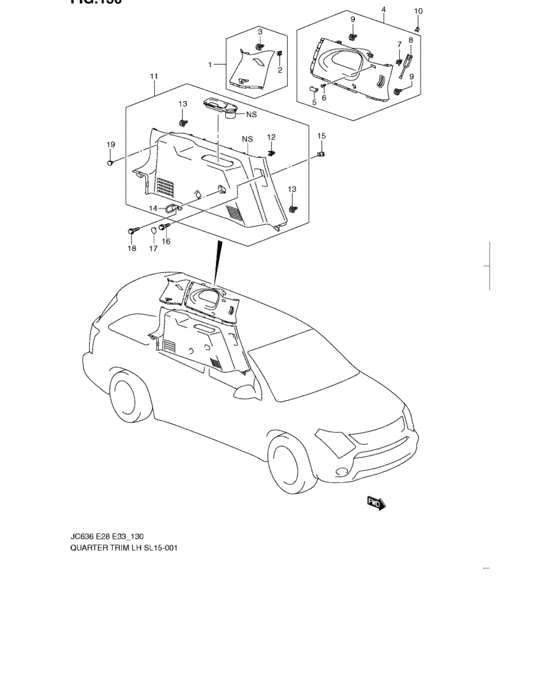

Quarter trim lh (QUARTER TRIM LH) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76299-78J40-000
TRIM,RR QTR UPR,L
2ROW SEAT |
76299-78J40-000 |
— | ||
|
1
|
1
76299-78J70-000
TRIM,RR QTR UPR,L
2ROW SEAT |
76299-78J70-000 |
— | ||
|
1
|
1
76299-78J50-000
TRIM,RR QTR UPR,L
3ROW SEAT |
76299-78J50-000 |
— | ||
|
1
|
1
76299-78J60-000
TRIM,RR QTR UPR,L
3ROW SEAT |
76299-78J60-000 |
— | ||
|
2
|
2
73113-78J00-000
CLIP
|
73113-78J00-000 |
— | ||
| replacement | |||||
|
2
|
2
76138-78J00-000
CLIP
|
76138-78J00-000 |
— | ||
|
3
|
3
83761-78J00-000
CLIP
|
83761-78J00-000 |
— | ||
|
4
|
4
76290-78J02-000
TRIM,RR QTR UPPER,R(GRAY)
|
76290-78J02-000 |
— | ||
|
4
|
4
76290-78J12-000
TRIM,RR QTR UPPER,R(BEIGE)
|
76290-78J12-000 |
— | ||
|
5
|
5
76294-78J00-000
CAP,RR QTR TRIM UPPER,L(GRAY)
|
76294-78J00-000 |
— | ||
|
5
|
5
76294-78J10-000
CAP,RR QTR TRIM UPR,L(BEIGE)
|
76294-78J10-000 |
— | ||
|
6
|
6
75946-78J10-000
SCREW
|
75946-78J10-000 |
— | ||
|
7
|
7
76296-78J00-000
CLIP
|
76296-78J00-000 |
— | ||
|
8
|
8
76297-78J00-000
RETAINER
|
76297-78J00-000 |
— | ||
|
9
|
9
83761-78J00-000
CLIP
|
83761-78J00-000 |
— | ||
|
10
|
10
76296-78J10-000
CLIP,QTR WINDOW OPENING FR
|
76296-78J10-000 |
— | ||
|
11
|
11
76220-78J51-000
TRIM,RR QTR LOWER,L
N/REAR A/C |
76220-78J51-000 |
— | ||
|
11
|
11
76220-78J71-000
TRIM,RR QTR LOWER,L
N/REAR A/C |
76220-78J71-000 |
— | ||
|
11
|
11
76220-78J41-000
TRIM,RR QTR LOWER,L
W/REAR A/C |
76220-78J41-000 |
— | ||
|
11
|
11
76220-78J60-000
TRIM,RR QTR LOWER,L
W/REAR A/C |
76220-78J60-000 |
— | ||
|
12
|
12
73113-78J00-000
CLIP
|
73113-78J00-000 |
— | ||
| replacement | |||||
|
12
|
12
76138-78J00-000
CLIP
|
76138-78J00-000 |
— | ||
|
13
|
13
76271-78J00-000
CLIP
|
76271-78J00-000 |
— | ||
|
14
|
14
75510-78J00-000
BRACKET,CARGO TIE
|
75510-78J00-000 |
— | ||
|
15
|
15
76229-78J01-000
NUT
|
76229-78J01-000 |
— | ||
|
16
|
16
71719-78J00-000
BOLT,M4.2X1.41X20
|
71719-78J00-000 |
— | ||
|
17
|
17
76295-78J00-000
COVER,BOLT
|
76295-78J00-000 |
— | ||
|
17
|
17
76295-78J10-000
COVER,BOLT
|
76295-78J10-000 |
— | ||
|
18
|
18
75489-78J00-000
Bolt
|
75489-78J00-000 |
— | ||
|
19
|
19
75488-78J00-000
RETAINER
|
75488-78J00-000 |
— | ||
