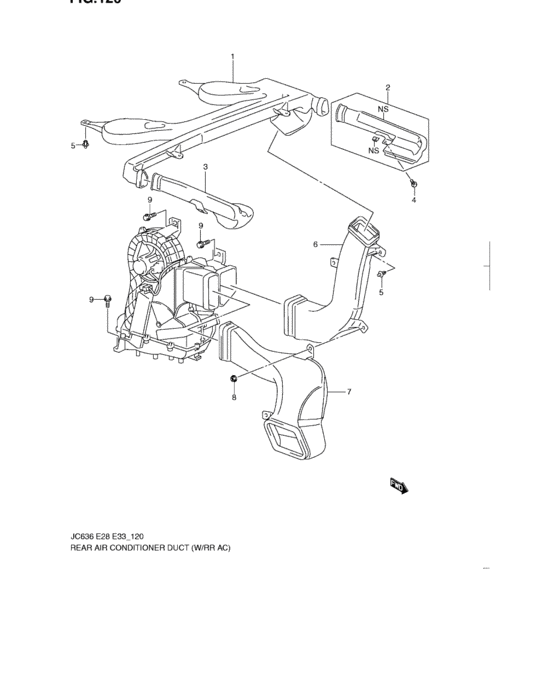

Rear air conditioner duct (W/REAR AIR CONDITIONER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74663-78J01-000
DUCT,RR A/C OUTLET
|
74663-78J01-000 |
— | ||
|
2
|
2
74664-78J00-000
DUCT,RR A/C,R
|
74664-78J00-000 |
— | ||
|
3
|
3
74665-78J00-000
DUCT,RR A/C,L
|
74665-78J00-000 |
— | ||
|
4
|
4
89222-78J00-000
Bolt
|
89222-78J00-000 |
— | ||
|
5
|
5
74629-78J00-000
CLIP
|
74629-78J00-000 |
— | ||
|
6
|
6
74661-78J00-000
DUCT,RR A/C UPR
|
74661-78J00-000 |
— | ||
|
7
|
7
74662-78J00-000
DUCT,RR A/C LWR
|
74662-78J00-000 |
— | ||
|
8
|
8
56118-78J00-000
NUT
|
56118-78J00-000 |
— | ||
|
9
|
9
48159-78J01-000
Bolt
|
48159-78J01-000 |
— |
