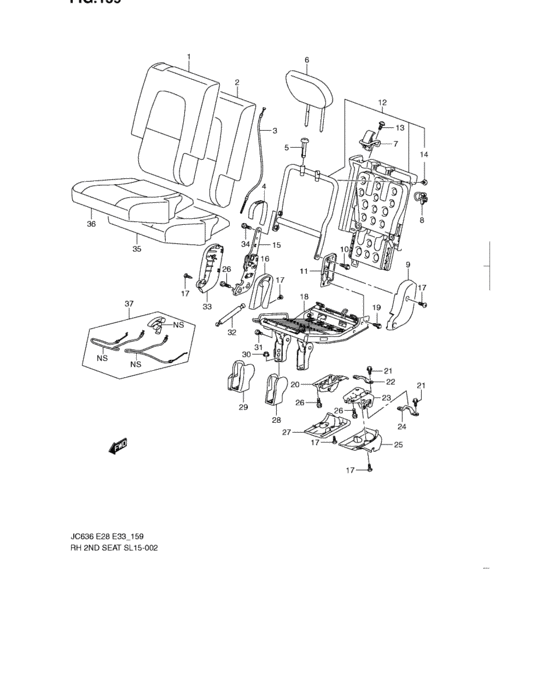

Rh 2nd seat (RH 2ND SEAT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87380-78J00-000
TRIM,2ND BACK,R
W/CLOTH:07 MODEL |
87380-78J00-000 |
— | ||
|
1
|
1
87380-78J10-000
TRIM,2ND BACK,R
W/CLOTH:07 MODEL,08 MODEL,09 MODEL |
87380-78J10-000 |
— | ||
|
1
|
1
87380-78J20-000
TRIM,2ND BACK,R
W/LEATHER:07 MODEL |
87380-78J20-000 |
— | ||
|
1
|
1
87380-78J30-000
TRIM,2ND BACK,R
W/LEATHER:07 MODEL |
87380-78J30-000 |
— | ||
|
1
|
1
87380-78J40-000
TRIM,2ND BACK,R
W/CLOTH:08 MODEL,09 MODEL |
87380-78J40-000 |
— | ||
|
1
|
1
87380-78J50-000
TRIM,2ND BACK,R
W/LEATHER:08 MODEL,09 MODEL |
87380-78J50-000 |
— | ||
|
1
|
1
87380-78J60-000
TRIM,2ND BACK,R
W/LEATHER:08 MODEL,09 MODEL |
87380-78J60-000 |
— | ||
|
2
|
2
87360-78J00-000
PAD,2ND BACK,R
|
87360-78J00-000 |
— | ||
|
3
|
3
87481-78J00-000
CABLE,RECLINING
07 MODEL |
87481-78J00-000 |
— | ||
|
3
|
3
87481-78J20-000
Cable, reclining
08 MODEL,09 MODEL |
87481-78J20-000 |
— | ||
|
4
|
4
87222-78J00-000
COVER,2ND OUTSIDE RECL CENTER
07 MODEL |
87222-78J00-000 |
— | ||
|
4
|
4
87222-78J10-000
COVER,2ND OUTSIDE RECL CENTER
07 MODEL |
87222-78J10-000 |
— | ||
|
4
|
4
87222-78J20-000
Cover, 2nd outside recl center
08 MODEL,09 MODEL |
87222-78J20-000 |
— | ||
|
4
|
4
87222-78J30-000
COVER,2ND OUTSIDE RECL CENTER
08 MODEL,09 MODEL |
87222-78J30-000 |
— | ||
|
5
|
5
85341-78J02-000
GUIDE,HEADRESTRAINT
N/BUTTON |
85341-78J02-000 |
— | ||
|
5
|
5
85341-78J10-000
GUIDE,HEADRESTRAINT(N/BUTTON)
N/BUTTON |
85341-78J10-000 |
— | ||
|
5
|
5
85840-78J01-000
GUIDE,HEADRESTRAINT
W/BUTTON |
85840-78J01-000 |
— | ||
|
5
|
5
85840-78J21-000
Guide, headrestraint
W/BUTTON |
85840-78J21-000 |
— | ||
| replacement | |||||
|
5
|
5
85840-78J20-000
GUIDE,HEADRESTRAINT(W/BUTTON)
W/BUTTON |
85840-78J20-000 |
— | ||
|
6
|
6
86401-78J90-000
HEADRESTRAINT ASSY
W/CLOTH:07 MODEL |
86401-78J90-000 |
— | ||
|
6
|
6
86401-78J80-000
HEADRESTRAINT ASSY
W/CLOTH:07 MODEL |
86401-78J80-000 |
— | ||
|
6
|
6
86401-78JB0-000
HEADRESTRAINT ASSY
W/LEATHER:07 MODEL |
86401-78JB0-000 |
— | ||
|
6
|
6
86401-78JA0-000
HEADRESTRAINT ASSY
W/LEATHER:07 MODEL |
86401-78JA0-000 |
— | ||
|
6
|
6
86401-78JJ0-000
Headrestraint assy
W/CLOTH:08 MODEL,09 MODEL |
86401-78JJ0-000 |
— | ||
|
6
|
6
86401-78JK0-000
Headrestraint assy
W/CLOTH:08 MODEL,09 MODEL |
86401-78JK0-000 |
— | ||
|
6
|
6
86401-78JL0-000
Headrestraint assy
W/LEATHER:08 MODEL,09 MODEL |
86401-78JL0-000 |
— | ||
|
6
|
6
86401-78JM0-000
Headrestraint assy
W/LEATHER:08 MODEL,09 MODEL |
86401-78JM0-000 |
— | ||
|
7
|
7
87482-78J00-000
HANDLE,RECLINING
|
87482-78J00-000 |
— | ||
|
7
|
7
87482-78J10-000
HANDLE,RECLINING
|
87482-78J10-000 |
— | ||
|
8
|
8
87312-78J10-000
GUIDE,CHILD SEAT
|
87312-78J10-000 |
— | ||
|
9
|
9
87240-78J00-000
COVER,2ND INSIDE RECLINING,R
|
87240-78J00-000 |
— | ||
|
9
|
9
87240-78J10-000
COVER,2ND INSIDE RECLINING,R
|
87240-78J10-000 |
— | ||
|
10
|
10
76119-78J50-000
Bolt
|
76119-78J50-000 |
— | ||
|
11
|
11
87230-78J00-000
BRACKET,2ND INSIDE,R
|
87230-78J00-000 |
— | ||
|
12
|
12
87311-78J00-000
FRAME,2ND BACK,R
|
87311-78J00-000 |
— | ||
|
13
|
13
76119-78J10-000
Bolt
|
76119-78J10-000 |
— | ||
|
14
|
14
76119-78J00-000
Bolt
|
76119-78J00-000 |
— | ||
| replacement | |||||
|
14
|
14
76119-78J01-000
Bolt
|
76119-78J01-000 |
— | ||
|
15
|
15
87210-78J00-000
RECLINING,2ND SEAT OUT,R
|
87210-78J00-000 |
— | ||
|
16
|
16
87221-78J00-000
COVER,2ND OUTSIDE RECL INNER,R
|
87221-78J00-000 |
— | ||
|
16
|
16
87221-78J10-000
COVER,2ND OUTSIDE RECL INNER,R
|
87221-78J10-000 |
— | ||
|
17
|
17
87223-78J01-000
Bolt
|
87223-78J01-000 |
— | ||
|
18
|
18
87110-78J00-000
FRAME,2ND CUSH,R
|
87110-78J00-000 |
— | ||
|
19
|
19
76119-78J50-000
Bolt
|
76119-78J50-000 |
— | ||
|
20
|
20
87484-78J00-000
LATCH,2ND SEAT OUTSIDE,R
|
87484-78J00-000 |
— | ||
|
21
|
21
87489-78J00-000
Bolt
|
87489-78J00-000 |
— | ||
|
22
|
22
61721-78J00-000
STRIKER,RR SEAT RR
|
61721-78J00-000 |
— | ||
|
22
|
22
61711-78J00-000
STRIKER,RR SEAT FR
|
61711-78J00-000 |
— | ||
|
23
|
23
87483-78J00-000
LATCH,2ND SEAT INSIDE,R
|
87483-78J00-000 |
— | ||
|
24
|
24
61721-78J00-000
STRIKER,RR SEAT RR
|
61721-78J00-000 |
— | ||
|
24
|
24
61711-78J00-000
STRIKER,RR SEAT FR
|
61711-78J00-000 |
— | ||
|
25
|
25
87171-78J00-000
COVER,2ND SEAT LATCH INSIDE,R
|
87171-78J00-000 |
— | ||
|
25
|
25
87171-78J10-000
COVER,2ND SEAT LATCH INSIDE,R
|
87171-78J10-000 |
— | ||
|
26
|
26
76119-78J60-000
Bolt
|
76119-78J60-000 |
— | ||
|
27
|
27
87172-78J00-000
COVER,2ND SEAT LATCH OUTSIDE,R
|
87172-78J00-000 |
— | ||
|
27
|
27
87172-78J10-000
COVER,2ND SEAT LATCH OUTSIDE,R
|
87172-78J10-000 |
— | ||
|
28
|
28
87491-78J00-000
COVER,2ND SEAT HINGE
|
87491-78J00-000 |
— | ||
|
28
|
28
87491-78J10-000
COVER,2ND SEAT HINGE
|
87491-78J10-000 |
— | ||
|
29
|
29
87491-78J00-000
COVER,2ND SEAT HINGE
|
87491-78J00-000 |
— | ||
|
29
|
29
87491-78J10-000
COVER,2ND SEAT HINGE
|
87491-78J10-000 |
— | ||
|
30
|
30
87151-78J01-000
NUT
|
87151-78J01-000 |
— | ||
|
31
|
31
76119-78J90-000
Bolt
|
76119-78J90-000 |
— | ||
|
32
|
32
87111-78J00-000
STRUT,2ND SEAT,R
|
87111-78J00-000 |
— | ||
|
33
|
33
87220-78J00-000
COVER,2ND OUTSIDE RECLINING,R
|
87220-78J00-000 |
— | ||
|
33
|
33
87220-78J10-000
COVER,2ND OUTSIDE RECLINING,R
|
87220-78J10-000 |
— | ||
|
34
|
34
87335-78J00-000
Bolt
|
87335-78J00-000 |
— | ||
|
35
|
35
87160-78J00-000
PAD,2ND CUSHION,R
|
87160-78J00-000 |
— | ||
|
36
|
36
87180-78J00-000
TRIM,2ND CUSHION,R
W/CLOTH:07 MODEL |
87180-78J00-000 |
— | ||
|
36
|
36
87180-78J10-000
TRIM,2ND CUSHION,R
W/CLOTH:07 MODEL |
87180-78J10-000 |
— | ||
|
36
|
36
87180-78J40-000
TRIM,2ND CUSHION,R
W/LEATHER:07 MODEL |
87180-78J40-000 |
— | ||
|
36
|
36
87180-78J20-000
TRIM,2ND CUSHION
W/LEATHER:07 MODEL |
87180-78J20-000 |
— | ||
|
36
|
36
87180-78J30-000
TRIM,2ND CUSHION
W/CLOTH:08 MODEL,09 MODEL |
87180-78J30-000 |
— | ||
|
36
|
36
87180-78J50-000
TRIM,2ND CUSHION,R
W/CLOTH:08 MODEL,09 MODEL |
87180-78J50-000 |
— | ||
|
36
|
36
87180-78J60-000
TRIM,2ND CUSHION,R
W/LEATHER:08 MODEL,09 MODEL |
87180-78J60-000 |
— | ||
|
36
|
36
87180-78J70-000
TRIM,2ND CUSHION,R
W/LEATHER:08 MODEL,09 MODEL |
87180-78J70-000 |
— | ||
|
37
|
37
87487-78J00-000
CABLE,2ND LATCH
|
87487-78J00-000 |
— | ||
