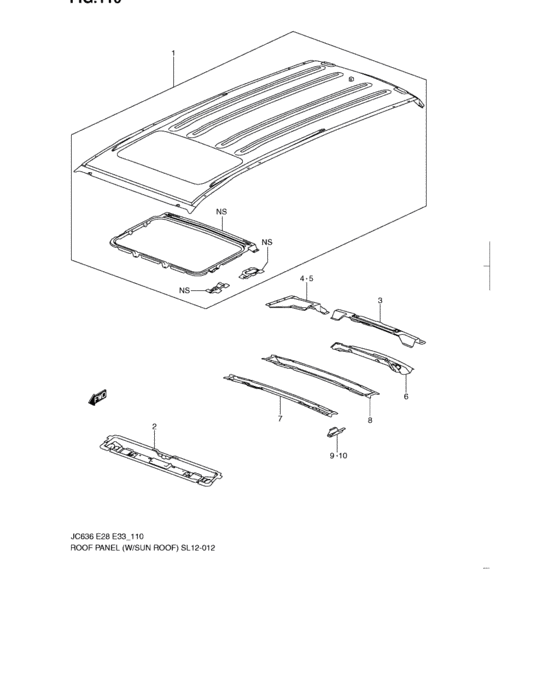

Roof panel (W/SUN ROOF) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65111-78J00-000
PANEL,ROOF
07 MODEL,08 MODEL |
65111-78J00-000 |
— | ||
| replacement | |||||
|
1
|
1
65111-78J01-000
PANEL,ROOF
07 MODEL,08 MODEL |
65111-78J01-000 |
— | ||
|
1
|
1
65111-78J01-000
PANEL,ROOF
09 MODEL |
65111-78J01-000 |
— | ||
|
2
|
2
65121-78J00-000
PANEL,ROOF FRONT INNER
|
65121-78J00-000 |
— | ||
|
3
|
3
65131-78J00-000
MEMBER,ROOF BACK UPR
|
65131-78J00-000 |
— | ||
|
4
|
4
65132-78J00-000
REINFORCEMENT,ROOF BACK,R
|
65132-78J00-000 |
— | ||
|
5
|
5
65133-78J00-000
REINFORCEMENT,ROOF BACK,L
|
65133-78J00-000 |
— | ||
|
6
|
6
65141-78J00-000
MEMBER,ROOF BACK LWR
|
65141-78J00-000 |
— | ||
|
7
|
7
65151-78J00-000
MEMBER,ROOF PANEL RR NO.1
|
65151-78J00-000 |
— | ||
|
8
|
8
65161-78J00-000
MEMBER,ROOF PANEL RR NO.2
|
65161-78J00-000 |
— | ||
|
9
|
9
65171-78J00-000
REINFORCEMENT,SUN ROOF,R
|
65171-78J00-000 |
— | ||
|
10
|
10
65172-78J00-000
REINFORCEMENT,SUN ROOF,L
|
65172-78J00-000 |
— | ||
