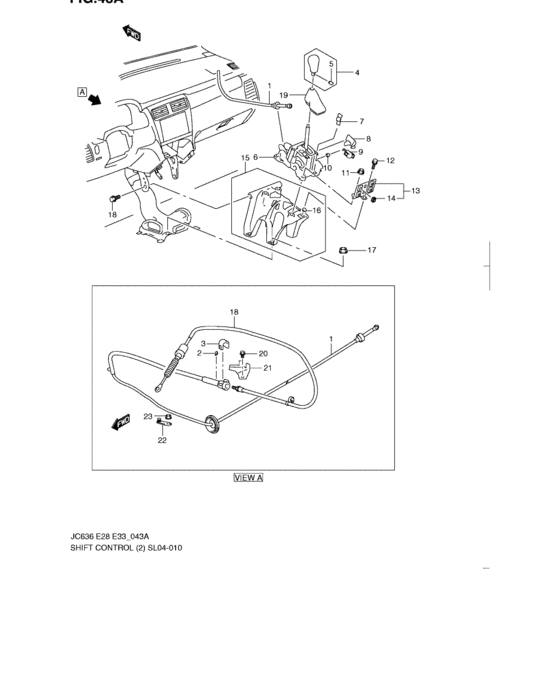

Shift control (09 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28210-78J12-000
CABLE,SELECT NO.1
|
28210-78J12-000 |
— | ||
|
2
|
2
28221-78J00-000
RING
|
28221-78J00-000 |
— | ||
|
3
|
3
28222-78J00-000
LOCK,ADJ
|
28222-78J00-000 |
— | ||
|
4
|
4
28160-78J10-NP5
KNOB,SELECT LEVER
|
28160-78J10-NP5 |
— | ||
|
4
|
4
28160-78J10-NK5
KNOB,SELECT LEVER
LEATHER |
28160-78J10-NK5 |
— | ||
|
5
|
5
28161-78J10-000
BOLT,SELECT LEVER
|
28161-78J10-000 |
— | ||
|
6
|
6
28166-78J00-000
BASE ASSY,SELECT
|
28166-78J00-000 |
— | ||
|
7
|
7
28162-78J00-000
SHIELD,SHF LOCK CONT SOL
|
28162-78J00-000 |
— | ||
|
8
|
8
28163-78J00-000
RETAINER,SHF LOCK PARK SW
|
28163-78J00-000 |
— | ||
|
9
|
9
28164-78J00-000
SOLENOID,SHF LOCK CONT
|
28164-78J00-000 |
— | ||
|
10
|
10
28169-78J00-000
BUMPER,SHF LOCK CONT ACTR
|
28169-78J00-000 |
— | ||
|
11
|
11
28165-78J00-000
NUT
|
28165-78J00-000 |
— | ||
|
12
|
12
73114-78J00-000
BOLT,M4.2X1.41X25
|
73114-78J00-000 |
— | ||
|
13
|
13
28167-78J11-000
RETAINER,FL CARPET
|
28167-78J11-000 |
— | ||
|
14
|
14
28168-78J00-000
NUT
|
28168-78J00-000 |
— | ||
|
15
|
15
28171-78J00-000
BRACKET,SELECT LEVER
|
28171-78J00-000 |
— | ||
|
16
|
16
28172-78J00-000
NUT
|
28172-78J00-000 |
— | ||
|
17
|
17
95715-78J00-000
NUT
|
95715-78J00-000 |
— | ||
|
18
|
18
28174-78J00-000
BOLT,8X25
|
28174-78J00-000 |
— | ||
|
19
|
19
28175-78J01-000
BOOT,SELECT LEVER
|
28175-78J01-000 |
— | ||
|
20
|
20
28223-78J00-000
BOLT,8X20
|
28223-78J00-000 |
— | ||
|
21
|
21
28224-78J20-000
BRACKET,SELECT CABLE
|
28224-78J20-000 |
— | ||
|
22
|
22
28225-78J20-000
LEVER,SELECT
|
28225-78J20-000 |
— | ||
|
23
|
23
95715-78J00-000
NUT
|
95715-78J00-000 |
— |
