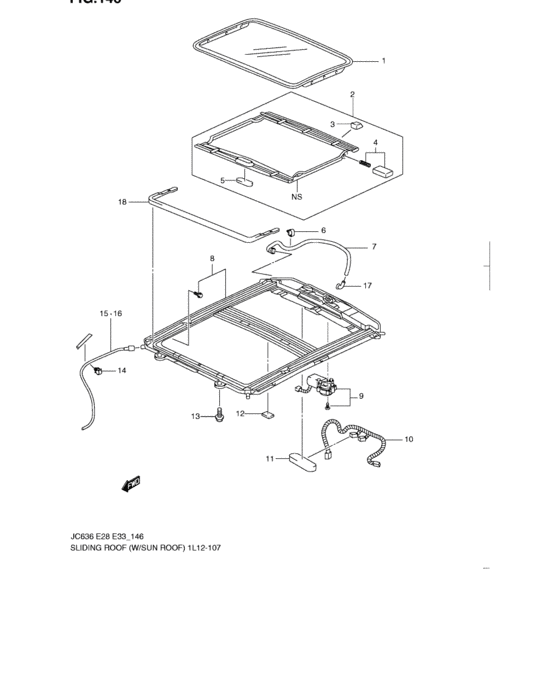

Sliding roof (W/SUN ROOF:07,08 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78711-78J10-000
Glass,sliding roof
|
78711-78J10-000 |
— | ||
| replacement | |||||
|
1
|
1
78711-78J00-000
GLASS,SLIDING ROOF
|
78711-78J00-000 |
— | ||
|
2
|
2
78718-78J11-000
TRIM,SUNSHADE
|
78718-78J11-000 |
— | ||
|
2
|
2
78718-78J01-000
TRIM,SUNSHADE
|
78718-78J01-000 |
— | ||
|
3
|
3
78725-78J00-000
STOPPER
|
78725-78J00-000 |
— | ||
|
4
|
4
78726-78J00-000
GUIDE KIT
|
78726-78J00-000 |
— | ||
|
5
|
5
78727-78J00-000
HANDLE,SUNSHADE
|
78727-78J00-000 |
— | ||
|
6
|
6
78833-78J00-000
CLAMP
|
78833-78J00-000 |
— | ||
|
7
|
7
78832-78J00-000
HOSE,RR DRAIN
|
78832-78J00-000 |
— | ||
|
7
|
7
78832-78J10-000
HOSE,RR DRAIN
|
78832-78J10-000 |
— | ||
|
8
|
8
78720-78J00-000
FRAME,SLIDING ROOF
|
78720-78J00-000 |
— | ||
|
9
|
9
78719-78J00-000
GEAR DRIVE MOTOR
|
78719-78J00-000 |
— | ||
|
10
|
10
36820-78J00-000
Wire, sun roof
|
36820-78J00-000 |
— | ||
| replacement | |||||
|
10
|
10
36820-78J01-000
HARNESS
|
36820-78J01-000 |
— | ||
|
11
|
11
78721-78J00-000
MODULE
|
78721-78J00-000 |
— | ||
|
12
|
12
78722-78J00-000
ADHESIVE
|
78722-78J00-000 |
— | ||
|
13
|
13
56119-78J00-000
Bolt
|
56119-78J00-000 |
— | ||
| replacement | |||||
|
13
|
13
38458-78J00-000
BOLT,M6X1X20
|
38458-78J00-000 |
— | ||
|
14
|
14
78833-78J00-000
CLAMP
|
78833-78J00-000 |
— | ||
|
15
|
15
78831-78J00-000
HOSE,FR DRAIN,R
|
78831-78J00-000 |
— | ||
|
16
|
16
78831-78J10-000
HOSE,FR DRAIN,L
|
78831-78J10-000 |
— | ||
|
17
|
17
78834-78J00-000
GROMMET
|
78834-78J00-000 |
— | ||
|
18
|
18
78717-78J00-000
DEFLECTOR,SLIDING ROOF
|
78717-78J00-000 |
— | ||
