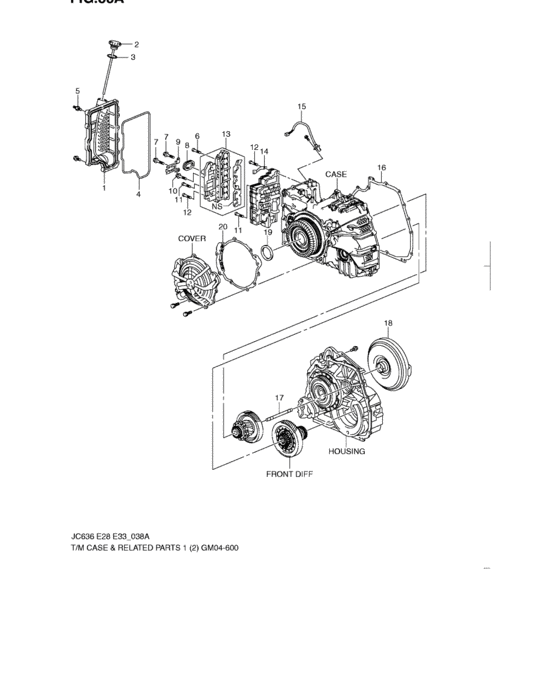

Transmission case & related parts (1; 09 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24751-78J20-000
COVER,VALVE BODY
|
24751-78J20-000 |
— | ||
|
2
|
2
24831-78J20-000
INDICATOR,FLUID LEVEL
|
24831-78J20-000 |
— | ||
|
3
|
3
24832-78J20-000
SEAL,LEVEL INDICATOR
|
24832-78J20-000 |
— | ||
|
4
|
4
24753-78J20-000
GASKET,VALVE BODY COVER
|
24753-78J20-000 |
— | ||
|
5
|
5
24754-78J20-000
STUD,VALVE BODY COVER
|
24754-78J20-000 |
— | ||
|
6
|
6
26441-78J20-000
BOLT,6X42
|
26441-78J20-000 |
— | ||
|
7
|
7
26442-78J20-000
BOLT,6X80
|
26442-78J20-000 |
— | ||
|
8
|
8
26443-78J20-000
SEAL,HOLE
|
26443-78J20-000 |
— | ||
|
9
|
9
26444-78J20-000
SPRING
|
26444-78J20-000 |
— | ||
|
10
|
10
26445-78J20-000
BOLT,6X95
|
26445-78J20-000 |
— | ||
|
11
|
11
26446-78J20-000
BOLT,6X55
|
26446-78J20-000 |
— | ||
|
12
|
12
26447-78J20-000
BOLT,6X65
|
26447-78J20-000 |
— | ||
|
13
|
13
26500-78J20-000
Valve,cont sol
|
26500-78J20-000 |
— | ||
| replacement | |||||
|
13
|
13
26500-78J21-000
VALVE,CONT SOL
|
26500-78J21-000 |
— | ||
|
14
|
14
25912-78J20-000
DETENT,MANUAL SHAFT
|
25912-78J20-000 |
— | ||
|
15
|
15
26143-78J20-000
Sensor, output speed
|
26143-78J20-000 |
— | ||
| replacement | |||||
|
15
|
15
26143-78J21-000
New Genuine Part
|
26143-78J21-000 |
— | ||
|
16
|
16
24755-78J20-000
GASKET,T/M CASE
|
24755-78J20-000 |
— | ||
|
17
|
17
26448-78J20-000
TUBE,LUB
|
26448-78J20-000 |
— | ||
|
18
|
18
22710-78J21-000
Converter,torque
|
22710-78J21-000 |
— | ||
| replacement | |||||
|
18
|
18
22710-78J22-000
CONVERTER,TORQUE
|
22710-78J22-000 |
— | ||
|
19
|
19
24757-78J20-000
BEARING,INPUT SFT THR
|
24757-78J20-000 |
— | ||
|
20
|
20
24756-78J20-000
GASKET,T/M COVER
|
24756-78J20-000 |
— | ||
