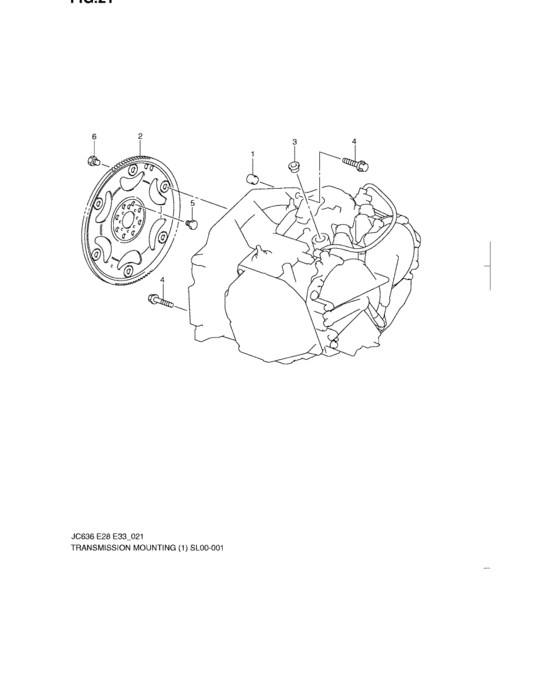

Transmission mounting (07,08 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1121C-78J00-000
PIN
|
1121C-78J00-000 |
— | ||
|
2
|
2
22620-78J11-000
PLATE,TC DRIVE
|
22620-78J11-000 |
— | ||
|
3
|
3
24716-78J00-000
WASHER,SHIFT SW
|
24716-78J00-000 |
— | ||
|
4
|
4
22651-78J00-000
BOLT,10X52
|
22651-78J00-000 |
— | ||
|
5
|
5
22651-78J10-000
BOLT,T/C DRIVE PLATE
|
22651-78J10-000 |
— | ||
|
6
|
6
22622-78J00-000
BOLT,T/C
|
22622-78J00-000 |
— |
