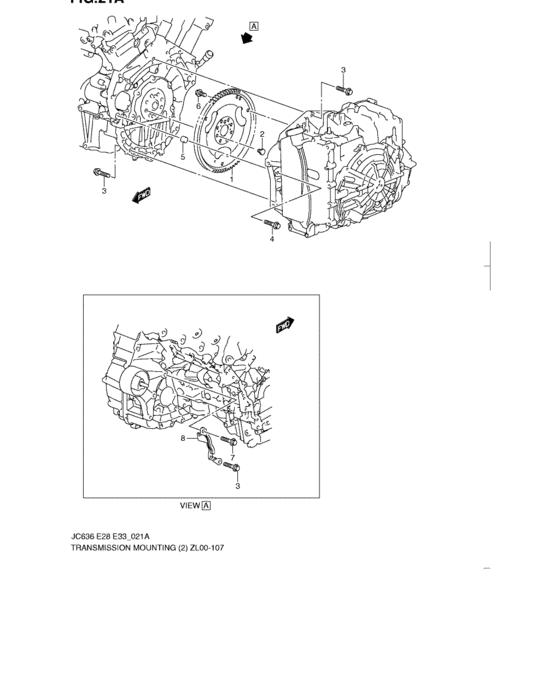

Transmission mounting (09 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22620-53L00-000
Plate, t/c drive
|
22620-53L00-000 |
— | ||
|
2
|
2
22651-78J10-000
BOLT,T/C DRIVE PLATE
|
22651-78J10-000 |
— | ||
|
3
|
3
87335-78J00-000
Bolt
|
87335-78J00-000 |
— | ||
|
4
|
4
22651-78J20-000
BOLT,10X65
|
22651-78J20-000 |
— | ||
|
5
|
5
1121C-78J00-000
PIN
|
1121C-78J00-000 |
— | ||
|
6
|
6
22622-78J20-000
BOLT,T/C
|
22622-78J20-000 |
— | ||
|
7
|
7
24793-78J20-000
BOLT,12X45
|
24793-78J20-000 |
— | ||
|
8
|
8
24792-78J20-000
COVER,T/C
|
24792-78J20-000 |
— |
