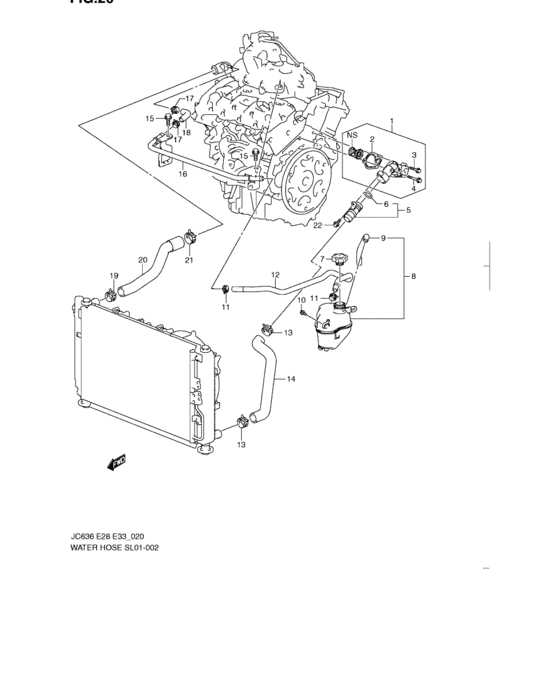

Water hose (WATER HOSE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17690-78J00-000
CASE,THERMOSTAT
07 MODEL,08 MODEL |
17690-78J00-000 |
— | ||
|
1
|
1
17690-78J10-000
Case, thermostat
09 MODEL |
17690-78J10-000 |
— | ||
| replacement | |||||
|
1
|
1
17690-78J12-000
CASE,THERMOSTAT
09 MODEL |
17690-78J12-000 |
— | ||
|
2
|
2
17699-78J00-000
Gasket,thermostat case
|
17699-78J00-000 |
— | ||
| replacement | |||||
|
2
|
2
17699-78J01-000 GASKET,THERMOSTAT CASE |
17699-78J01-000 |
US $20.98 |
||
|
3
|
3
1769A-78J00-000
BOLT,THERMOSTAT CASE NO.2
|
1769A-78J00-000 |
— | ||
|
4
|
4
1769A-78J00-000
BOLT,THERMOSTAT CASE NO.2
|
1769A-78J00-000 |
— | ||
|
5
|
5
17550-78J00-000
PIPE,WATER INLET
|
17550-78J00-000 |
— | ||
|
6
|
6
17553-78J00-000
O-ring,wtr inlet pipe
|
17553-78J00-000 |
— | ||
| replacement | |||||
|
6
|
6
17553-78J01-000 O-RING,WATER INLET PIPE |
17553-78J01-000 |
from US $12.87 |
||
|
7
|
7
17932-78J01-000 CAP,SURGE TANK |
17932-78J01-000 |
US $27.05 |
||
|
8
|
8
17931-78J00-000
TANK,RADIATOR SURGE
|
17931-78J00-000 |
— | ||
|
9
|
9
17936-78J00-000
HOSE,RSVR
|
17936-78J00-000 |
— | ||
|
10
|
10
56119-78J00-000
Bolt
|
56119-78J00-000 |
— | ||
| replacement | |||||
|
10
|
10
38458-78J00-000
BOLT,M6X1X20
|
38458-78J00-000 |
— | ||
|
11
|
11
17934-78J00-000
CLIP
|
17934-78J00-000 |
— | ||
|
12
|
12
17939-78J00-000
HOSE,RSVR
|
17939-78J00-000 |
— | ||
|
13
|
13
17853-78J00-000
CLIP
|
17853-78J00-000 |
— | ||
|
14
|
14
17854-78J00-000 HOSE,RDTR OUTLET07 MODEL,08 MODEL |
17854-78J00-000 |
US $75.07 |
||
|
14
|
14
17854-78J10-000
HOSE,RDTR OUTLET
09 MODEL |
17854-78J10-000 |
— | ||
|
15
|
15
14123-78J00-000
BOLT,6X20
|
14123-78J00-000 |
— | ||
|
16
|
16
17938-78J00-000 PIPE,ENG COOL AIR |
17938-78J00-000 |
US $115.18 |
||
|
17
|
17
17933-78J00-000
CLIP
|
17933-78J00-000 |
— | ||
|
18
|
18
17937-78J00-000
HOSE,ENG COOL AIR
|
17937-78J00-000 |
— | ||
|
19
|
19
17853-78J00-000
CLIP
|
17853-78J00-000 |
— | ||
|
20
|
20
17852-78J01-000 HOSE,RDTR INLET |
17852-78J01-000 |
US $325.68 |
||
|
21
|
21
17855-78J00-000
CLIP
|
17855-78J00-000 |
— | ||
|
22
|
22
1755B-78J00-000 BOLT,WTR INLET PIPE |
1755B-78J00-000 |
US $1.91 |
||
