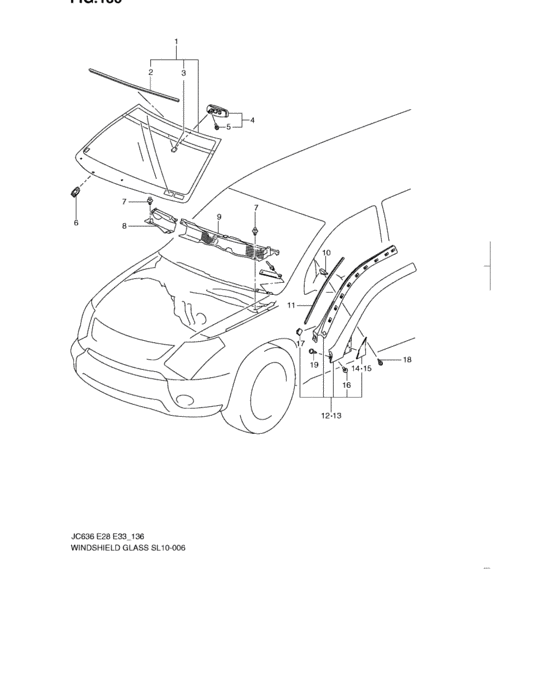

Windshield glass (WINDSHIELD GLASS) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- FWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84510-78J10-000 GLASS,WINDSHIELD |
84510-78J10-000 |
US $763.84 |
||
|
2
|
2
84611-78J02-000 MOLDING,WSHLD |
84611-78J02-000 |
from US $12.76 |
||
|
3
|
3
84590-78J00-000
BRACKET,ISRV MIRROR
|
84590-78J00-000 |
— | ||
|
4
|
4
84703-78J00-000
MIRROR ASSY,INS RR VIEW
W/COMPASS,W/AUTO TILT |
84703-78J00-000 |
— | ||
|
4
|
4
84703-78J10-000
MIRROR ASSY,INS RR VIEW
N/COMPASS,N/AUTO TILT |
84703-78J10-000 |
— | ||
|
4
|
4
84703-78J20-000
Mirror assy, inside rr view
N/COMPASS,W/AUTO TILT |
84703-78J20-000 |
— | ||
|
5
|
5
84711-78J10-000
Bolt
|
84711-78J10-000 |
— | ||
|
6
|
6
84618-78J00-000
STOPPER
07 MODEL |
84618-78J00-000 |
— | ||
|
7
|
7
59719-78J00-000
CLIP
|
59719-78J00-000 |
— | ||
|
8
|
8
59710-78J02-000
PANEL,COWL TOP,R
|
59710-78J02-000 |
— | ||
|
9
|
9
59720-78J04-000
PANEL,COWL TOP,L
|
59720-78J04-000 |
— | ||
|
10
|
10
77183-78J00-000
NUT
|
77183-78J00-000 |
— | ||
|
11
|
11
77184-78J00-000
SEAL
|
77184-78J00-000 |
— | ||
|
12
|
12
77174-78J00-000
GARNISH,FR,R
|
77174-78J00-000 |
— | ||
|
13
|
13
77194-78J01-000
GARNISH,FR,L
|
77194-78J01-000 |
— | ||
|
14
|
14
77181-78J00-000
GARNISH,FR PLR,R
|
77181-78J00-000 |
— | ||
|
15
|
15
77191-78J00-000
GARNISH,FR PLR,L
|
77191-78J00-000 |
— | ||
|
16
|
16
77186-78J00-000
Bolt
|
77186-78J00-000 |
— | ||
|
17
|
17
77189-78J00-000
CLIP
|
77189-78J00-000 |
— | ||
|
18
|
18
77179-78J00-000
Bolt
|
77179-78J00-000 |
— | ||
|
19
|
19
82211-78J00-000
Bolt
|
82211-78J00-000 |
— | ||
| replacement | |||||
|
19
|
19
82518-78J00-000
Screw
|
82518-78J00-000 |
— | ||
