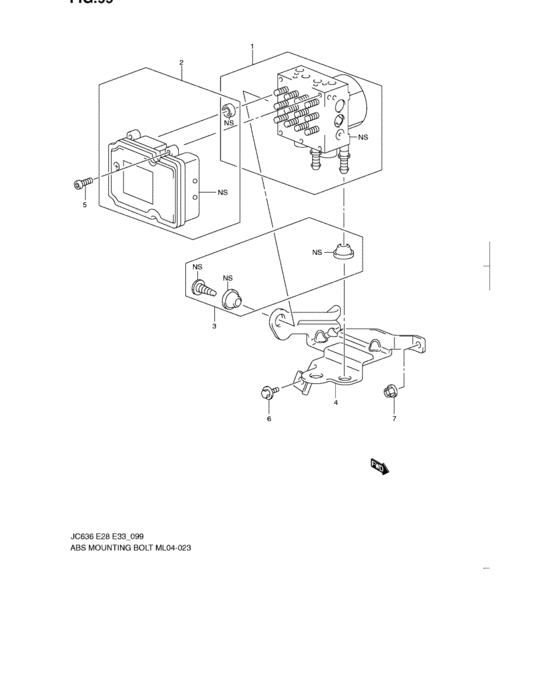

Brake modulator valve (BRAKE MODULATOR VALVE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-78J00-000 VALVE SET,BRAKE MODULATOR07 MODEL |
56110-78J00-000 |
US $858.88 |
||
|
1
|
1
56110-78J11-000
Valve set,brake modulator
08 MODEL,09 MODEL |
56110-78J11-000 |
— | ||
| replacement | |||||
|
1
|
1
56110-78J12-000
VALVE SET,BRAKE MODULATOR
08 MODEL,09 MODEL |
56110-78J12-000 |
— | ||
|
2
|
2
56120-78J00-000 MODULATOR SET,BK CONTROLLER07 MODEL |
56120-78J00-000 |
US $633.60 |
||
|
2
|
2
56120-78J10-000
MODULATOR SET,BK CONTROLLER
08 MODEL |
56120-78J10-000 |
— | ||
|
2
|
2
56120-78J20-000
Modulator set, bk controller
09 MODEL |
56120-78J20-000 |
— | ||
|
3
|
3
56130-78J00-000
DAMPER SET,BRAKE MODULATOR
|
56130-78J00-000 |
— | ||
|
4
|
4
56160-78J00-000
BRACKET,BRAKE MODULATOR
|
56160-78J00-000 |
— | ||
|
5
|
5
56117-78J00-000
Bolt
|
56117-78J00-000 |
— | ||
|
6
|
6
56119-78J00-000
Bolt
|
56119-78J00-000 |
— | ||
| replacement | |||||
|
6
|
6
38458-78J00-000
BOLT,M6X1X20
|
38458-78J00-000 |
— | ||
|
7
|
7
56118-78J00-000
NUT
|
56118-78J00-000 |
— | ||
