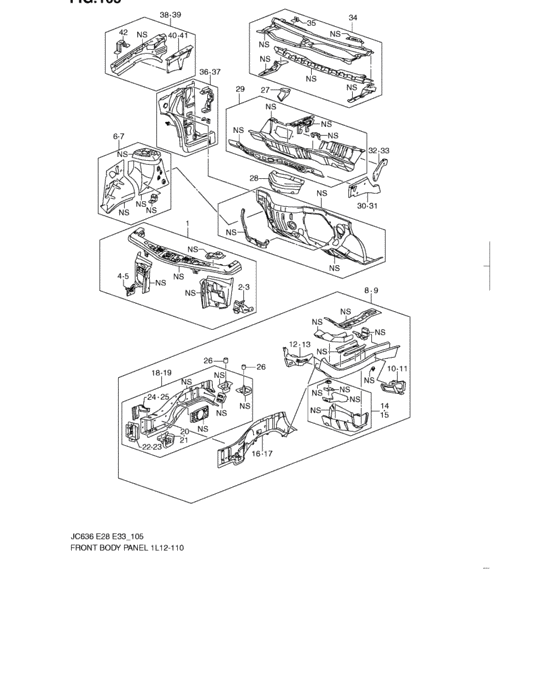

Front body panel (FRONT BODY PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58220-78J00-000 MEMBER,FR END UPR |
58220-78J00-000 |
US $725.12 |
||
|
2
|
2
57619-78J00-000
BRACKET,FR FENDER,R
|
57619-78J00-000 |
— | ||
|
3
|
3
57719-78J00-000
BRACKET,FR FENDER,L
|
57719-78J00-000 |
— | ||
|
4
|
4
58226-78J00-000
BRACKET,LAMP SUPPORT,R
|
58226-78J00-000 |
— | ||
|
5
|
5
58227-78J00-000
BRACKET,LAMP SUPPORT,L
|
58227-78J00-000 |
— | ||
|
6
|
6
58310-78J00-000
PANEL,FENDER APRON,R
|
58310-78J00-000 |
— | ||
|
7
|
7
58410-78J00-000
PANEL,FENDER APRON,L
|
58410-78J00-000 |
— | ||
|
8
|
8
58260-78J00-000
MEMBER,RR SIDE,R
|
58260-78J00-000 |
— | ||
|
9
|
9
58270-78J01-000
MEMBER,RR SIDE,L
|
58270-78J01-000 |
— | ||
|
10
|
10
58629-78J00-000
EXTENSION,RR SIDE MEMBER,R
|
58629-78J00-000 |
— | ||
|
11
|
11
58729-78J00-000
EXTENSION,RR SIDE MEMBER,L
|
58729-78J00-000 |
— | ||
|
12
|
12
58628-78J00-000
PANEL,RR SIDE MEMBER,R
|
58628-78J00-000 |
— | ||
|
13
|
13
58728-78J00-000
PANEL,RR SIDE MEMBER,L
|
58728-78J00-000 |
— | ||
|
14
|
14
58630-78J00-000
BRACKET,RR SIDE MEMBER,R
|
58630-78J00-000 |
— | ||
|
15
|
15
58730-78J00-000
BRACKET,RR SIDE MEMBER,L
|
58730-78J00-000 |
— | ||
|
16
|
16
58616-78J01-000
PANEL,FR SIDE OUTER,R
|
58616-78J01-000 |
— | ||
|
17
|
17
58716-78J00-000
PANEL,FR SIDE OUTER,L
|
58716-78J00-000 |
— | ||
|
18
|
18
58610-78J00-000
MEMBER,FR SIDE INR,R
|
58610-78J00-000 |
— | ||
|
19
|
19
58710-78J01-000
MEMBER,FR SIDE INR,L
|
58710-78J01-000 |
— | ||
|
20
|
20
58619-78J00-000
SUPPORT,FR SUSPENSION,R
|
58619-78J00-000 |
— | ||
|
21
|
21
58719-78J00-000
SUPPORT,FR SUSPENSION,L
|
58719-78J00-000 |
— | ||
|
22
|
22
58618-78J00-000
Bracket, front bumper rh
|
58618-78J00-000 |
— | ||
| replacement | |||||
|
22
|
22
58618-78J01-000
BRACKET,FR BUMPER,R
|
58618-78J01-000 |
— | ||
|
23
|
23
58718-78J00-000
Bracket, front bumper lh
|
58718-78J00-000 |
— | ||
| replacement | |||||
|
23
|
23
58718-78J02-000
BRACKET,FR BUMPER LH
|
58718-78J02-000 |
— | ||
|
24
|
24
58617-78J01-000
BRACKET,FR SIDE MEMBER,R
|
58617-78J01-000 |
— | ||
|
25
|
25
58717-78J01-000
Bracket, fr side member lh
|
58717-78J01-000 |
— | ||
| replacement | |||||
|
25
|
25
58717-78J00-000
Bracket-f/cmpt
|
58717-78J00-000 |
— | ||
|
26
|
26
58819-78J00-000
SPACER,ENG MOUNT,R
|
58819-78J00-000 |
— | ||
|
27
|
27
59215-78J00-000
PLUG,COWL UPPER
|
59215-78J00-000 |
— | ||
|
28
|
28
59120-78J00-000
REINFORCEMENT,DASH PANEL
|
59120-78J00-000 |
— | ||
|
29
|
29
59210-78J01-000
Panel, cowl upper
|
59210-78J01-000 |
— | ||
|
30
|
30
59216-78J00-000
Panel, dash fr extn rh
|
59216-78J00-000 |
— | ||
| replacement | |||||
|
30
|
30
59216-78J01-000
PANEL,DASH FR EXTN,R
|
59216-78J01-000 |
— | ||
|
31
|
31
59217-78J00-000
Panel, dash fr extn lh
|
59217-78J00-000 |
— | ||
| replacement | |||||
|
31
|
31
59217-78J01-000
PANEL,DASH FR EXTN,L
|
59217-78J01-000 |
— | ||
|
32
|
32
59218-78J00-000
PANEL,DASH RR EXTN,R
|
59218-78J00-000 |
— | ||
|
33
|
33
59219-78J00-000
PANEL,DASH RR EXTN,L
|
59219-78J00-000 |
— | ||
|
34
|
34
59310-78J01-000
PANEL,COWL TOP
|
59310-78J01-000 |
— | ||
|
35
|
35
59319-78J00-000
BRACKET,I/P SUPPORT
|
59319-78J00-000 |
— | ||
|
36
|
36
59380-78J00-000
PANEL,DASH SIDE,R
|
59380-78J00-000 |
— | ||
|
37
|
37
59390-78J00-000
PANEL,DASH SIDE,L
|
59390-78J00-000 |
— | ||
|
38
|
38
64130-78J01-000
MEMBER,FR BODY SIDE,R
|
64130-78J01-000 |
— | ||
|
39
|
39
64530-78J02-000
MEMBER,FR BODY SIDE,L
|
64530-78J02-000 |
— | ||
|
40
|
40
64137-78J02-000
REINFORCEMENT,FR SIDE MEMBER,R
|
64137-78J02-000 |
— | ||
|
41
|
41
64138-78J02-000
REINFORCEMENT,FR SIDE MEMBER,L
|
64138-78J02-000 |
— | ||
|
42
|
42
64139-78J00-000
BRACKET,FR SIDE MEMBER
|
64139-78J00-000 |
— | ||
