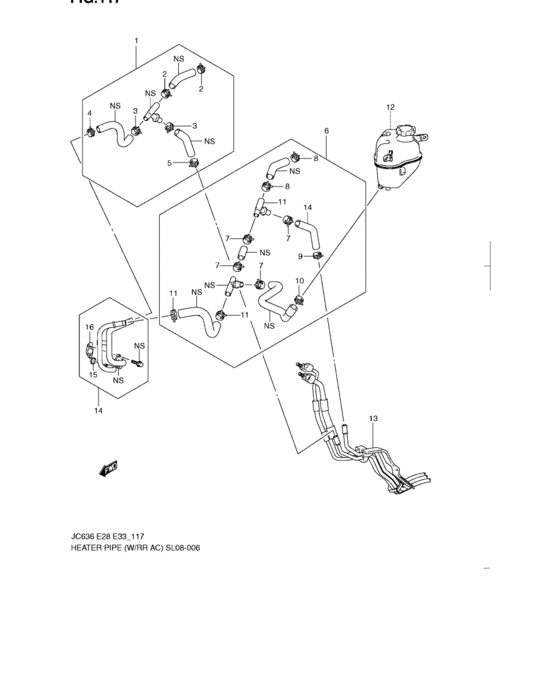

Heater pipe (W/REAR AIR CONDITIONER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95743-78J01-000 HOSE,HEATER07 MODEL,08 MODEL |
95743-78J01-000 |
US $143.52 |
||
|
1
|
1
17871-78J10-000
HOSE,HEATER INLET
09 MODEL |
17871-78J10-000 |
— | ||
|
2
|
2
74379-78J01-000
CLIP
|
74379-78J01-000 |
— | ||
|
3
|
3
17878-78J00-000
CLAMP
|
17878-78J00-000 |
— | ||
|
4
|
4
74379-78J01-000
CLIP
|
74379-78J01-000 |
— | ||
|
5
|
5
74379-78J01-000
CLIP
|
74379-78J01-000 |
— | ||
|
6
|
6
95742-78J00-000
HOSE
07 MODEL,08 MODEL |
95742-78J00-000 |
— | ||
|
6
|
6
95742-78J10-000
HOSE,HEATER OUTLET
09 MODEL |
95742-78J10-000 |
— | ||
|
7
|
7
17878-78J00-000
CLAMP
|
17878-78J00-000 |
— | ||
|
8
|
8
74379-78J01-000
CLIP
|
74379-78J01-000 |
— | ||
|
9
|
9
74379-78J01-000
CLIP
|
74379-78J01-000 |
— | ||
|
10
|
10
74379-78J01-000
CLIP
|
74379-78J01-000 |
— | ||
|
11
|
11
74379-78J01-000
CLIP
|
74379-78J01-000 |
— | ||
|
12
|
12
17931-78J00-000
TANK,RADIATOR SURGE
|
17931-78J00-000 |
— | ||
|
13
|
13
74125-78J00-000
Pipe,evapo
|
74125-78J00-000 |
— | ||
| replacement | |||||
|
13
|
13
74125-78J01-000
PIPE,EVAPORATOR
|
74125-78J01-000 |
— | ||
|
14
|
14
13450-78J00-000
PIPE,HEATER INLET/OUTLET
|
13450-78J00-000 |
— | ||
|
15
|
15
13459-78J01-000
SEAL
|
13459-78J01-000 |
— | ||
|
16
|
16
13458-78J00-000
Gasket
|
13458-78J00-000 |
— | ||
| replacement | |||||
|
16
|
16
13458-78J01-000 GASKET |
13458-78J01-000 |
US $9.27 |
||
