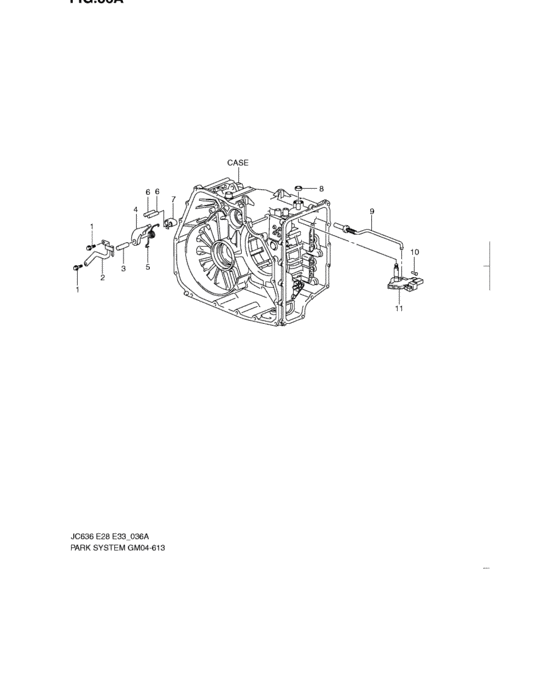

Park system (09 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26146-78J10-000
BOLT,6X25
|
26146-78J10-000 |
— | ||
|
2
|
2
25924-78J20-000
BRACKET,PARK PAWL ACTR
|
25924-78J20-000 |
— | ||
|
3
|
3
25925-78J20-000
SHAFT,PARK PAWL
|
25925-78J20-000 |
— | ||
|
4
|
4
25921-78J20-000
PAWL,PARK
|
25921-78J20-000 |
— | ||
|
5
|
5
25926-78J20-000
SPRING,PARK PAWL
|
25926-78J20-000 |
— | ||
|
6
|
6
25923-78J20-000
PIN
|
25923-78J20-000 |
— | ||
|
7
|
7
25928-78J20-000
GUIDE
|
25928-78J20-000 |
— | ||
|
8
|
8
25981-78J20-000
SEAL,MAIN SHIFT SHAFT
|
25981-78J20-000 |
— | ||
|
9
|
9
25922-78J20-000
ACTUATOR
|
25922-78J20-000 |
— | ||
|
10
|
10
25927-78J20-000
PIN,MAIN SHAFT
|
25927-78J20-000 |
— | ||
|
11
|
11
25911-78J20-000
Lever, main shaft
|
25911-78J20-000 |
— | ||
| replacement | |||||
|
11
|
11
25911-78J21-000
LEVER,MAIN SHAFT
|
25911-78J21-000 |
— | ||
