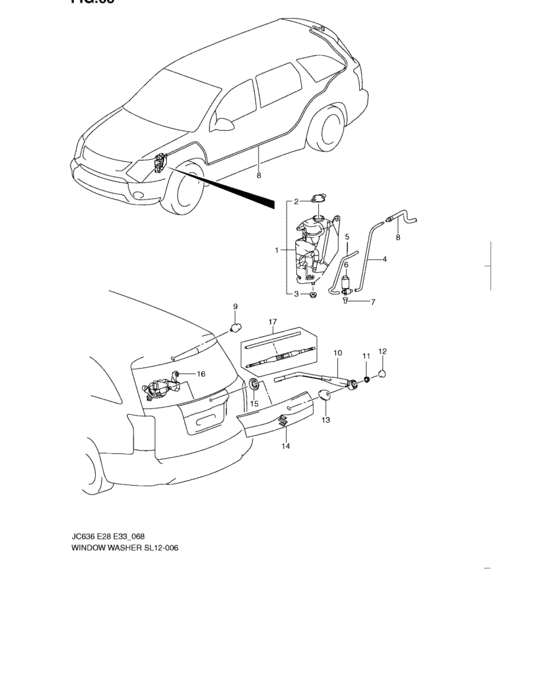

Window washer (WINDOW WASHER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- AWD
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-78J01-000
TANK ASSY,WASHER
|
38450-78J01-000 |
— | ||
|
2
|
2
38452-78J00-000
CAP,WASHER TANK
|
38452-78J00-000 |
— | ||
|
3
|
3
38453-78J00-000
GROMMET
|
38453-78J00-000 |
— | ||
|
4
|
4
38459-78J00-000
HOSE ASSY,WASHER
|
38459-78J00-000 |
— | ||
|
5
|
5
38459-78J11-000
HOSE,RR WINDOW WASHER
|
38459-78J11-000 |
— | ||
|
6
|
6
38410-78J01-000 PUMP ASSY,WASHER |
38410-78J01-000 |
US $118.86 |
||
|
7
|
7
38457-78J00-000
FILTER
|
38457-78J00-000 |
— | ||
|
8
|
8
38459-78J20-000
HOSE,RR WINDOW WASHER
|
38459-78J20-000 |
— | ||
|
9
|
9
38840-78J00-000
NOZZLE
|
38840-78J00-000 |
— | ||
|
10
|
10
38821-78J00-000 ARM ASSY,RR WIPER |
38821-78J00-000 |
US $51.82 |
||
|
11
|
11
95715-78J00-000
NUT
|
95715-78J00-000 |
— | ||
|
12
|
12
38315-78J00-000
CAP
|
38315-78J00-000 |
— | ||
|
13
|
13
83932-78J00-000
BEZEL
|
83932-78J00-000 |
— | ||
|
14
|
14
83930-78J01-000
GARNISH,BACK DR
|
83930-78J01-000 |
— | ||
|
15
|
15
38274-78J00-000
SEAL
|
38274-78J00-000 |
— | ||
|
16
|
16
38810-78J02-000
Motor assy, rear wiper
07 MODEL |
38810-78J02-000 |
— | ||
| replacement | |||||
|
16
|
16
38810-78J04-000
MOTOR ASSY,RR WIPER
07 MODEL |
38810-78J04-000 |
— | ||
|
16
|
16
38810-78J03-000
Motor assy,rear wiper
08 MODEL,09 MODEL |
38810-78J03-000 |
— | ||
| replacement | |||||
|
16
|
16
38810-78J04-000
MOTOR ASSY,RR WIPER
08 MODEL,09 MODEL |
38810-78J04-000 |
— | ||
|
17
|
17
38350-78J00-000 BLADE ASSY,RR WIPER |
38350-78J00-000 |
from US $19.19 |
||
