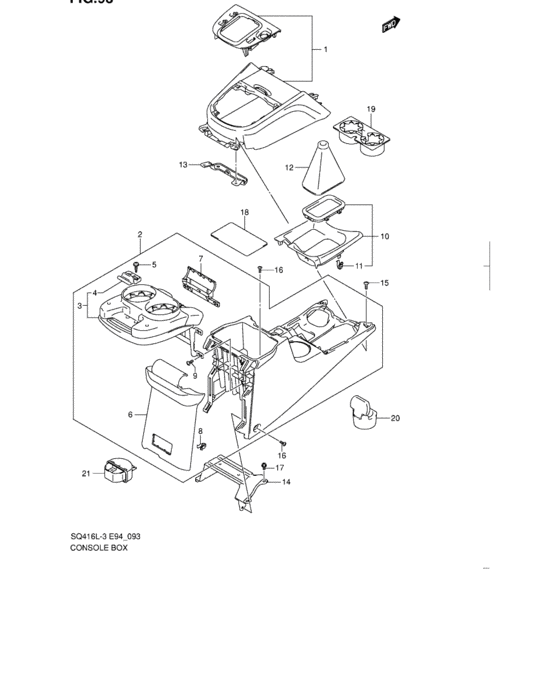

Console box (CONSOLE BOX) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- All regions
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75810-50J10-KU6
BOX,FLOOR CONSOLE FR
|
75810-50J10-KU6 |
— | ||
|
2
|
2
75910-50J00-KT1 BOX,FLOOR CONSOLE RR |
75910-50J00-KT1 |
US $454.08 |
||
|
3
|
3
75912-50J00-KT1 ARMREST,RR CONSOLE(GRAY/BLACK) |
75912-50J00-KT1 |
US $331.20 |
||
|
4
|
4
75917-50J00-000 LOCK,ARMREST |
75917-50J00-000 |
US $10.56 |
||
|
5
|
5
75918-50J00-000 SCREW,ARMREST LOCK |
75918-50J00-000 |
US $2.36 |
||
|
6
|
6
75914-50J00-P4Z PANEL,FLOOR CONSOLE RR |
75914-50J00-P4Z |
US $41.22 |
||
|
7
|
7
75915-50J00-P4Z GARNISH,FL CSL RR |
75915-50J00-P4Z |
US $20.24 |
||
|
8
|
8
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
9
|
9
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
10
|
10
75920-50J00-FC6 COVER,FL CONSOLE BOX |
75920-50J00-FC6 |
US $66.24 |
||
|
11
|
11
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
12
|
12
75930-50J00-5PK BOOT,TRANSFER LEVER |
75930-50J00-5PK |
US $65.87 |
||
|
13
|
13
75851-50J00-000 BRACKET,FLOOR CONSOLE BOX,FR~JSAFTD02V00200518 |
75851-50J00-000 |
US $11.22 |
||
|
14
|
14
75951-50J00-000 BRACKET,FLOOR CONSOLE BOX,RR |
75951-50J00-000 |
US $18.18 |
||
|
15
|
15
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
16
|
16
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
17
|
17
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
18
|
18
75961-50J00-000 SHEET,CONSOLE BOX INNER |
75961-50J00-000 |
US $4.16 |
||
|
19
|
19
75820-50J00-5PK HOLDER,CUP |
75820-50J00-5PK |
US $56.67 |
||
|
20
|
20
89810-50J01-5PK
アッシュトレー,フロント(ブラック)
|
89810-50J01-5PK |
— | ||
| replacement | |||||
|
20
|
20
89810-50J02-5PK ASHTRAY,FR |
89810-50J02-5PK |
US $48.58 |
||
|
21
|
21
89850-50J00-P4Z ASHTRAY,RR |
89850-50J00-P4Z |
US $19.50 |
||
