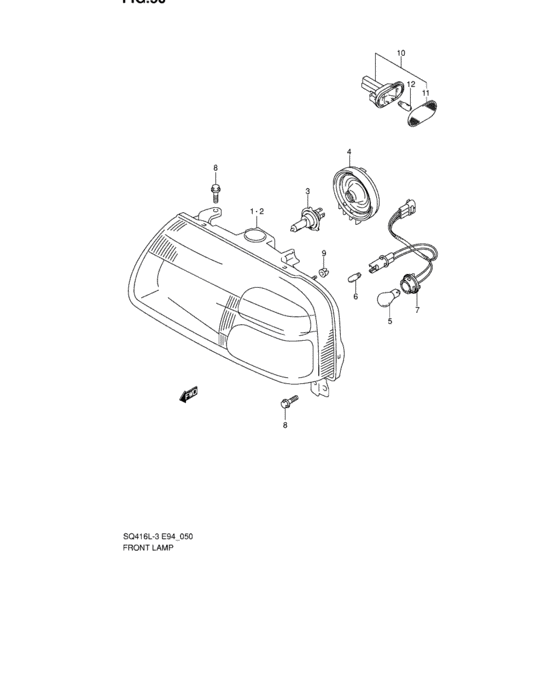

Front lamp (FRONT LAMP) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- All regions
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-65D11-000 UNIT,HEADLAMP,R |
35120-65D11-000 |
US $563.47 |
||
|
2
|
2
35320-65D11-000 UNIT,HEADLAMP,L |
35320-65D11-000 |
US $563.47 |
||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4) |
09471-12182-000 |
from US $31.92 |
||
|
4
|
4
35125-65D00-000 COVER,SOCKET |
35125-65D00-000 |
US $19.20 |
||
|
5
|
5
09471-12186-000 BULB(12V21W,AMBER) |
09471-12186-000 |
from US $17.09 |
||
|
6
|
6
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $4.32 |
||
|
7
|
7
35618-65D00-000 SOCKET&CORD ASSY |
35618-65D00-000 |
US $56 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
35153-60G00-000 GROMMET,LAMP |
35153-60G00-000 |
US $1.60 |
||
|
10
|
10
36410-75F01-000 LAMP ASSY,SIDE TURN SIG |
36410-75F01-000 |
US $16.45 |
||
|
11
|
11
36412-75F00-000 LENS,SIDE TURN |
36412-75F00-000 |
US $10.40 |
||
|
12
|
12
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $4.32 |
||
