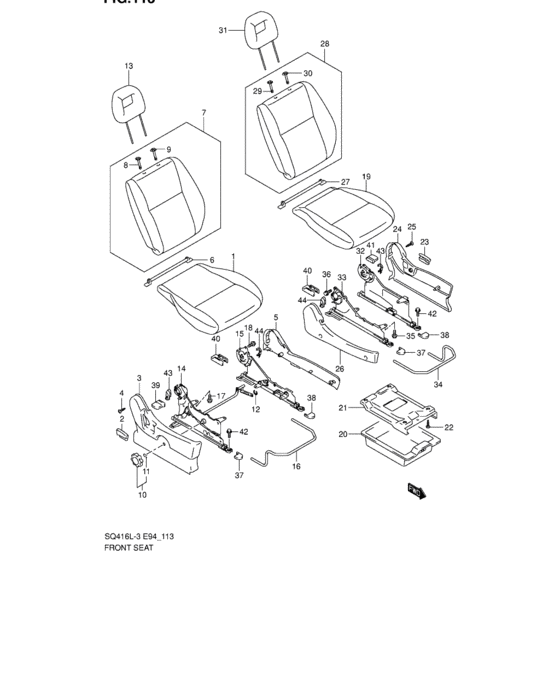

Front seat (FRONT SEAT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- All regions
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-50JG0-KK8
Cushion assy, front rh
|
85101-50JG0-KK8 |
— | ||
| replacement | |||||
|
1
|
1
85101-50JG0-BMT
Cushion assy,fr(black)
|
85101-50JG0-BMT |
— | ||
|
1
|
1
85101-50JG0-NM3
Cushion assy,fr(blue)
|
85101-50JG0-NM3 |
— | ||
|
2
|
2
85211-65DA0-P4Z KNOB,RECL,R |
85211-65DA0-P4Z |
US $4.67 |
||
|
3
|
3
85220-65DF0-P4Z
COVER,RCLNG OUTSIDE,R
|
85220-65DF0-P4Z |
— | ||
|
4
|
4
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
5
|
5
85241-65DA0-P4Z COVER,RECL INSIDE,R |
85241-65DA0-P4Z |
US $27.78 |
||
|
6
|
6
85250-65DA0-000 ROD,FR SEAT ADJUSTER |
85250-65DA0-000 |
US $15.53 |
||
|
7
|
7
85301-50JA0-KK8
Back assy, front lh
|
85301-50JA0-KK8 |
— | ||
| replacement | |||||
|
7
|
7
85301-50JA0-BMT
Back assy,fr(black)
|
85301-50JA0-BMT |
— | ||
|
7
|
7
85301-50JA0-NM3
BACK ASSY,FR(BLUE)
|
85301-50JA0-NM3 |
— | ||
|
8
|
8
85341-81A00-P4Z GUIDE,HEADRESTRAINT |
85341-81A00-P4Z |
US $6.04 |
||
|
9
|
9
85840-81A10-P4Z GUIDE,HEADRESTRAINT |
85840-81A10-P4Z |
US $11.63 |
||
|
10
|
10
86170-80G00-P4Z KNOB |
86170-80G00-P4Z |
US $11.74 |
||
|
11
|
11
78463-78000-000 SNAP |
78463-78000-000 |
US $1.60 |
||
|
12
|
12
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
12
|
12
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.90 |
||
|
12
|
12
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
13
|
13
86401-50JA0-R9P
Headrestraint assy
|
86401-50JA0-R9P |
— | ||
| replacement | |||||
|
13
|
13
86401-50JA1-R9P
HEADRESTRAINT ASSY
|
86401-50JA1-R9P |
— | ||
|
13
|
13
86401-50JA0-S3W
Headrestraint assy
|
86401-50JA0-S3W |
— | ||
| replacement | |||||
|
13
|
13
86401-50JA1-S3W
Headrestraint assy
|
86401-50JA1-S3W |
— | ||
|
14
|
14
86603-65D10-000
ADJUSTER ASSY,FR OUTSIDE,R
|
86603-65D10-000 |
— | ||
|
15
|
15
86601-65D10-000
Adjuster assy,fr inside,r
|
86601-65D10-000 |
— | ||
|
16
|
16
86691-65DA0-000 HANDLE,FR SEAT ADJ |
86691-65DA0-000 |
US $16.56 |
||
|
17
|
17
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
17
|
17
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
18
|
18
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
19
|
19
85101-50JA0-KK8
Cushion assy, front lh
|
85101-50JA0-KK8 |
— | ||
| replacement | |||||
|
19
|
19
85101-50JA0-BMT
CUSHION ASSY,FR(BLACK)
|
85101-50JA0-BMT |
— | ||
|
19
|
19
85101-50JA0-NM3
CUSHION ASSY,FR(BLUE)
|
85101-50JA0-NM3 |
— | ||
|
20
|
20
85150-80G10-000 TRAY ASSY,FR UNDER |
85150-80G10-000 |
US $79.20 |
||
|
21
|
21
86521-65DA0-000 BRACKET,UNDER TRAY |
86521-65DA0-000 |
US $91.20 |
||
|
22
|
22
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
23
|
23
85711-65DA0-P4Z KNOB,RECL,L |
85711-65DA0-P4Z |
US $4.67 |
||
|
24
|
24
85720-65DA0-P4Z COVER,RCLNG OUTSIDE,L |
85720-65DA0-P4Z |
US $46.37 |
||
|
25
|
25
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
25
|
25
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
26
|
26
85741-65DA0-P4Z COVER,RECL INSIDE,L |
85741-65DA0-P4Z |
US $27.78 |
||
|
27
|
27
85250-65DA0-000 ROD,FR SEAT ADJUSTER |
85250-65DA0-000 |
US $15.53 |
||
|
28
|
28
85301-50JA0-KK8
Back assy, front lh
|
85301-50JA0-KK8 |
— | ||
| replacement | |||||
|
28
|
28
85301-50JA0-BMT
Back assy,fr(black)
|
85301-50JA0-BMT |
— | ||
|
28
|
28
85301-50JA0-NM3
BACK ASSY,FR(BLUE)
|
85301-50JA0-NM3 |
— | ||
|
29
|
29
85341-81A00-P4Z GUIDE,HEADRESTRAINT |
85341-81A00-P4Z |
US $6.04 |
||
|
30
|
30
85840-81A10-P4Z GUIDE,HEADRESTRAINT |
85840-81A10-P4Z |
US $11.63 |
||
|
31
|
31
86401-50JA0-R9P
Headrestraint assy
|
86401-50JA0-R9P |
— | ||
| replacement | |||||
|
31
|
31
86401-50JA1-R9P
HEADRESTRAINT ASSY
|
86401-50JA1-R9P |
— | ||
|
31
|
31
86401-50JA0-S3W
Headrestraint assy
|
86401-50JA0-S3W |
— | ||
| replacement | |||||
|
31
|
31
86401-50JA1-S3W
Headrestraint assy
|
86401-50JA1-S3W |
— | ||
|
32
|
32
86604-65DA0-000 ADJUSTER ASSY,FR OUTSIDE,L |
86604-65DA0-000 |
US $261.28 |
||
|
33
|
33
86602-65DA0-000 ADJUSTER ASSY,FR INSIDE,L |
86602-65DA0-000 |
US $217.12 |
||
|
34
|
34
86891-65DA0-000 HANDLE,FR SEAT ADJUSTER |
86891-65DA0-000 |
US $16.56 |
||
|
35
|
35
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
35
|
35
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
36
|
36
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
36
|
36
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
37
|
37
85491-65DA0-P4Z COVER,FR INSIDE,R |
85491-65DA0-P4Z |
US $4.16 |
||
|
38
|
38
85492-65DA0-P4Z COVER,FR INSIDE,L |
85492-65DA0-P4Z |
US $4.16 |
||
|
39
|
39
85496-65DA0-P4Z COVER,ADJ BRKT OUTSIDE,R |
85496-65DA0-P4Z |
US $4.64 |
||
|
40
|
40
85495-65DA0-P4Z COVER,ADJUSTER BRACKET,INSIDE |
85495-65DA0-P4Z |
US $4.20 |
||
|
41
|
41
85996-65DA0-P4Z COVER,ADJ BRKT OUTSIDE,L |
85996-65DA0-P4Z |
US $4.64 |
||
|
42
|
42
01551-10253-000
Bolt
|
01551-10253-000 |
— | ||
| replacement | |||||
|
42
|
42
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
43
|
43
85222-50JA0-000
COVER,FR RCLNG INNER,R
|
85222-50JA0-000 |
— | ||
|
44
|
44
85242-50JA0-000
COVER,FR RCLNG INNER,L
|
85242-50JA0-000 |
— | ||
