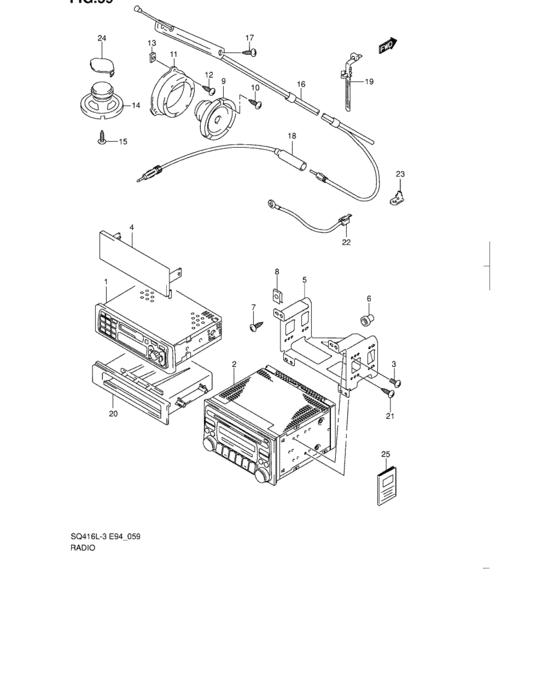

Radio (RADIO) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- All regions
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-82D60-000 TUNER ASSYW/1 DIN RADIO |
39101-82D60-000 |
US $795.52 |
||
|
2
|
2
39101-50J61-000
Tuner assy
W/2 DIN RADIO |
39101-50J61-000 |
— | ||
| replacement | |||||
|
2
|
2
39101-50J62-000
TUNER ASSY
W/2 DIN RADIO |
39101-50J62-000 |
— | ||
|
2
|
2
39101-50J71-000
Tuner assy
W/2 DIN RADIO |
39101-50J71-000 |
— | ||
|
2
|
2
39101-50J81-000
Tuner assy
W/2 DIN RADIO |
39101-50J81-000 |
— | ||
| replacement | |||||
|
2
|
2
39101-50J82-000
TUNER ASSY
W/2 DIN RADIO |
39101-50J82-000 |
— | ||
|
3
|
3
02142-05083-000
Screw
W/RADIO |
02142-05083-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0508A-000 SCREWScrew, cap W/RADIO |
02142-0508A-000 |
from US $0.80 |
||
|
4
|
4
39161-74G00-000 COVER,RADIO HOLEN/RADIO |
39161-74G00-000 |
US $8.65 |
||
|
5
|
5
39321-50J11-000
ブラケット,チューナ
N/RADIO,W/1 DIN RADIO |
39321-50J11-000 |
— | ||
| replacement | |||||
|
5
|
5
39321-50J02-000 BRACKET,TUNERN/RADIO,W/1 DIN RADIO |
39321-50J02-000 |
US $19.14 |
||
|
5
|
5
39321-50J00-000
Bracket, tuner
,W/2 DIN RADIO,FOR 39101-50J61,39101-50J71,39101-50J81 |
39321-50J00-000 |
— | ||
| replacement | |||||
|
5
|
5
39321-50J02-000 BRACKET,TUNER,W/2 DIN RADIO,FOR 39101-50J61,39101-50J71,39101-50J81 |
39321-50J02-000 |
US $19.14 |
||
|
6
|
6
34955-60E00-000 BUSH |
34955-60E00-000 |
US $2.39 |
||
|
7
|
7
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
7
|
7
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.61 |
||
|
8
|
8
09148-05045-000 NUT |
09148-05045-000 |
from US $0.81 |
||
|
9
|
9
39102-63G12-000 SPEAKER ASSYW/SPEAKER |
39102-63G12-000 |
US $36.06 |
||
|
10
|
10
03142-05163-000
Screw
W/SPEAKER |
03142-05163-000 |
— | ||
| replacement | |||||
|
10
|
10
03141-0516A-000 SCREWW/SPEAKER |
03141-0516A-000 |
from US $0.80 |
||
|
11
|
11
39350-82D00-000 BRACKET,FR SPKRW/SPEAKER |
39350-82D00-000 |
US $17.19 |
||
|
12
|
12
03242-06163-000
Screw
W/SPEAKER |
03242-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0616C-000 SCREWW/SPEAKER |
03241-0616C-000 |
from US $0.76 |
||
|
13
|
13
09148-06007-000 NUTW/SPEAKER |
09148-06007-000 |
from US $0.65 |
||
|
14
|
14
39102-63G12-000 SPEAKER ASSYW/SPEAKER |
39102-63G12-000 |
US $36.06 |
||
|
15
|
15
03142-05123-000
Screw
W/SPEAKER |
03142-05123-000 |
— | ||
| replacement | |||||
|
15
|
15
03141-0512A-000 SCREWScrew, belt cooling duct W/SPEAKER |
03141-0512A-000 |
from US $0.61 |
||
|
16
|
16
39250-67D00-000 ANTENNA ASSY |
39250-67D00-000 |
US $78.75 |
||
|
17
|
17
09129-04003-000 SCREW(4X12) |
09129-04003-000 |
US $15.10 |
||
|
18
|
18
39270-50J00-000
Feeder comp,pillar antenna
|
39270-50J00-000 |
— | ||
| replacement | |||||
|
18
|
18
39270-50JA0-000 FEEDER,PILLAR ANT |
39270-50JA0-000 |
US $28.52 |
||
|
19
|
19
09407-12404-000 CLAMP(L:140)N/RADIO |
09407-12404-000 |
US $30.40 |
||
|
20
|
20
39182-70E50-000
ポケット,チューナ
EXC/2 DIN TUNER |
39182-70E50-000 |
— | ||
| replacement | |||||
|
20
|
20
39182-70E51-000 POCKET,TUNEREXC/2 DIN TUNER |
39182-70E51-000 |
US $20 |
||
|
21
|
21
03242-05123-000
Screw, inner cover
EXC/2 DIN TUNER |
03242-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
03241-0512A-000 SCREWEXC/2 DIN TUNER |
03241-0512A-000 |
from US $0.68 |
||
|
22
|
22
39312-65D00-000 WIRE,NOISE SUPPR |
39312-65D00-000 |
US $3.90 |
||
|
23
|
23
36865-82000-000 TERMINAL,GND |
36865-82000-000 |
US $2.80 |
||
|
24
|
24
39239-50J00-000 CAP,TWEETER HOLE |
39239-50J00-000 |
US $2.69 |
||
|
25
|
25
39103-65D10-000 MANUAL,OWNER'SW/1 DIN RADIO,FOR 39101-82D60 |
39103-65D10-000 |
US $21.16 |
||
|
25
|
25
39103-55GA0-000
Manual, radio
W/2 DIN RADIO,FOR 39101-50J61 |
39103-55GA0-000 |
— | ||
| replacement | |||||
|
25
|
25
39103-76JA0-000 MANUAL,AUDIOW/2 DIN RADIO,FOR 39101-50J61 |
39103-76JA0-000 |
US $16.01 |
||
|
25
|
25
39103-55GB0-000
Manual, radio
W/2 DIN RADIO,FOR 39101-50J71 |
39103-55GB0-000 |
— | ||
| replacement | |||||
|
25
|
25
39103-76JB0-000
MANUAL,AUDIO
W/2 DIN RADIO,FOR 39101-50J71 |
39103-76JB0-000 |
— | ||
|
25
|
25
39103-55GF0-000
MANUAL,STEREO
W/2 DIN RADIO,FOR 39101-50J81 |
39103-55GF0-000 |
— | ||
