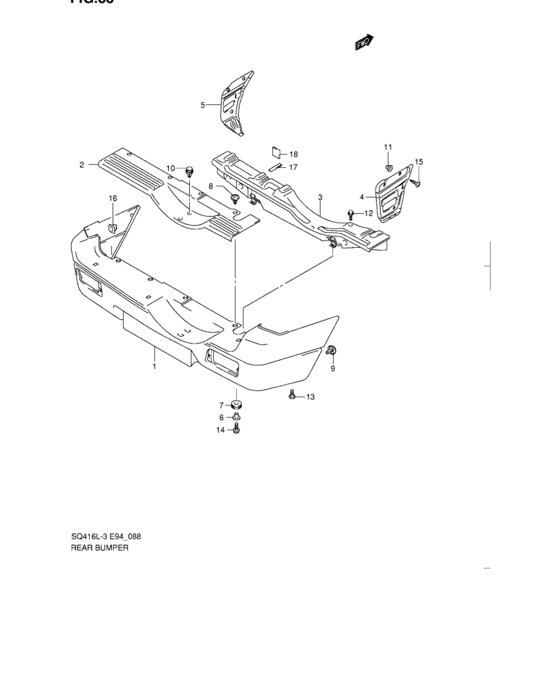

Rear bumper (REAR BUMPER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- All regions
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-65D41-799 BUMPER,RR(PRIMARY) |
71811-65D41-799 |
US $714.56 |
||
|
2
|
2
71812-65D01-5PK GARNISH,RR BPR |
71812-65D01-5PK |
US $168 |
||
|
3
|
3
71820-65D32-000 MEMBER,RR BUMPER |
71820-65D32-000 |
US $264.96 |
||
|
4
|
4
71831-65D00-000 BRACKET,RR BUMPER SIDE,R |
71831-65D00-000 |
US $58.53 |
||
|
5
|
5
71841-65D00-000 BRACKET,RR BUMPER SIDE,L |
71841-65D00-000 |
US $58.53 |
||
|
6
|
6
09169-06062-000 WASHERWasher |
09169-06062-000 |
from US $1.12 |
||
|
7
|
7
09320-09502-000 CUSHIONCushion, leg guard |
09320-09502-000 |
from US $2.88 |
||
|
8
|
8
09409-07325-5PK CLIP(BLACK) |
09409-07325-5PK |
from US $1.37 |
||
|
9
|
9
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
|
10
|
10
09409-08327-000 CLIP |
09409-08327-000 |
from US $1.13 |
||
|
11
|
11
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
12
|
12
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
12
|
12
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
12
|
12
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
13
|
13
09122-66004-000
Screw,6x14
|
09122-66004-000 |
— | ||
| replacement | |||||
|
13
|
13
09122-66007-000 SCREW(6X14) |
09122-66007-000 |
from US $0.80 |
||
|
14
|
14
02162-06203-000
Bolt
|
02162-06203-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.80 |
||
|
15
|
15
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
15
|
15
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
16
|
16
09410-00076-000 CLIP |
09410-00076-000 |
from US $1.19 |
||
|
17
|
17
71881-65D01-000 PAD |
71881-65D01-000 |
US $4.05 |
||
|
18
|
18
71882-65D00-000 PAD |
71882-65D00-000 |
US $3.42 |
||
