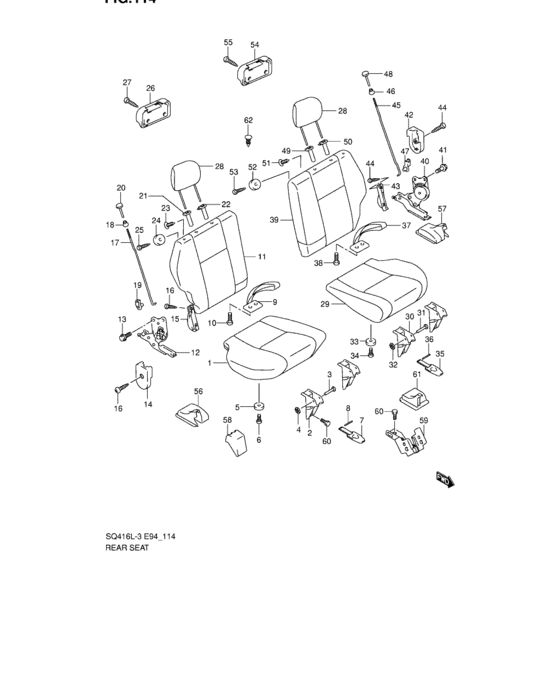

Rear seat (REAR SEAT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- All regions
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-50JA0-KK8
Cushion assy, rear rh
|
87101-50JA0-KK8 |
— | ||
| replacement | |||||
|
1
|
1
87101-50JA1-KK8
CUSHION ASSY,RR,R(BLACK)
|
87101-50JA1-KK8 |
— | ||
|
1
|
1
87101-50JA0-NM3
Cushion assy, rear rh
|
87101-50JA0-NM3 |
— | ||
| replacement | |||||
|
1
|
1
87101-50JA1-NM3
CUSHION ASSY,RR,R(BLUE)
|
87101-50JA1-NM3 |
— | ||
|
2
|
2
87151-65DL0-000
LEG,RR CUSH
|
87151-65DL0-000 |
— | ||
|
3
|
3
87259-65DL0-000
PIN,REAR CUSH
|
87259-65DL0-000 |
— | ||
| replacement | |||||
|
3
|
3
87259-65DL1-000
PIN,REAR CUSH
|
87259-65DL1-000 |
— | ||
|
4
|
4
09148-08002-000 NUT |
09148-08002-000 |
US $11 |
||
|
5
|
5
87159-65DA0-000 CUSHION,RR CUSH |
87159-65DA0-000 |
US $3.90 |
||
|
6
|
6
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
7
|
7
87420-65DA0-000 BAND,RR STOPPER |
87420-65DA0-000 |
US $18.77 |
||
|
8
|
8
87423-65DA0-000 PIN,REAR STOPPER BAND |
87423-65DA0-000 |
US $1.60 |
||
|
9
|
9
87460-65DA0-000 LOCK,RR CUSH |
87460-65DA0-000 |
US $29.62 |
||
|
10
|
10
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
87301-50JA0-KK8
BACK ASSY,RR,R
|
87301-50JA0-KK8 |
— | ||
|
11
|
11
87301-50JA0-NM3
BACK ASSY,RR,R(BLUE)
|
87301-50JA0-NM3 |
— | ||
|
12
|
12
87210-65D30-000
リクライニングアッシ,リヤ,ライト
|
87210-65D30-000 |
— | ||
| replacement | |||||
|
12
|
12
87210-65D31-000
RECLINING ASSY,RR,R
|
87210-65D31-000 |
— | ||
|
13
|
13
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
14
|
14
87221-65DL0-P4Z
COVER,RR RECL OUTSIDE,R
|
87221-65DL0-P4Z |
— | ||
|
15
|
15
87222-65DL0-P4Z
COVER
|
87222-65DL0-P4Z |
— | ||
|
16
|
16
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
16
|
16
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
16
|
16
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
17
|
17
87215-65DL0-000
ROD,RR RCLNG
|
87215-65DL0-000 |
— | ||
|
18
|
18
87319-80G00-000 SILENCER,RR RECLINING ROD |
87319-80G00-000 |
US $2.47 |
||
|
19
|
19
09403-04306-000 CLAMPConnector, choke rod |
09403-04306-000 |
US $20.20 |
||
|
20
|
20
87211-74G00-P4Z
Knob,3rd rclng(gray)
|
87211-74G00-P4Z |
— | ||
| replacement | |||||
|
20
|
20
87211-74G10-P4Z KNOB,RR BACK |
87211-74G10-P4Z |
from US $2.43 |
||
|
21
|
21
85341-81A00-P4Z GUIDE,HEADRESTRAINT |
85341-81A00-P4Z |
US $6.04 |
||
|
22
|
22
85840-81A10-P4Z GUIDE,HEADRESTRAINT |
85840-81A10-P4Z |
US $11.63 |
||
|
23
|
23
09409-10302-P4Z CLIP(GRAY) |
09409-10302-P4Z |
US $12.90 |
||
|
24
|
24
87429-65DA0-P4Z GUIDE,STOPPER BAND |
87429-65DA0-P4Z |
US $3.64 |
||
|
25
|
25
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
25
|
25
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
25
|
25
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
26
|
26
87428-65DA0-000
ストライカ,トノカバー
|
87428-65DA0-000 |
— | ||
|
27
|
27
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
27
|
27
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
27
|
27
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
28
|
28
86401-50JA0-R9P
Headrestraint assy
|
86401-50JA0-R9P |
— | ||
| replacement | |||||
|
28
|
28
86401-50JA1-R9P
HEADRESTRAINT ASSY
|
86401-50JA1-R9P |
— | ||
|
28
|
28
86401-50JA0-S3W
Headrestraint assy
|
86401-50JA0-S3W |
— | ||
| replacement | |||||
|
28
|
28
86401-50JA1-S3W
Headrestraint assy
|
86401-50JA1-S3W |
— | ||
|
29
|
29
87102-50JA0-KK8
Cushion assy, rear lh
|
87102-50JA0-KK8 |
— | ||
| replacement | |||||
|
29
|
29
87102-50JA1-KK8
CUSHION ASSY,RR,L(BLACK)
|
87102-50JA1-KK8 |
— | ||
|
29
|
29
87102-50JA0-NM3
Cushion assy, rear lh
|
87102-50JA0-NM3 |
— | ||
| replacement | |||||
|
29
|
29
87102-50JA1-NM3
CUSHION ASSY,RR,L(BLUE)
|
87102-50JA1-NM3 |
— | ||
|
30
|
30
87151-65DL0-000
LEG,RR CUSH
|
87151-65DL0-000 |
— | ||
|
31
|
31
87259-65DL0-000
PIN,REAR CUSH
|
87259-65DL0-000 |
— | ||
| replacement | |||||
|
31
|
31
87259-65DL1-000
PIN,REAR CUSH
|
87259-65DL1-000 |
— | ||
|
32
|
32
09148-08002-000 NUT |
09148-08002-000 |
US $11 |
||
|
33
|
33
87159-65DA0-000 CUSHION,RR CUSH |
87159-65DA0-000 |
US $3.90 |
||
|
34
|
34
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
34
|
34
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
35
|
35
87420-65DA0-000 BAND,RR STOPPER |
87420-65DA0-000 |
US $18.77 |
||
|
36
|
36
87423-65DA0-000 PIN,REAR STOPPER BAND |
87423-65DA0-000 |
US $1.60 |
||
|
37
|
37
87460-65DA0-000 LOCK,RR CUSH |
87460-65DA0-000 |
US $29.62 |
||
|
38
|
38
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
38
|
38
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
39
|
39
87302-50JA0-KK8
BACK ASSY,RR,L
|
87302-50JA0-KK8 |
— | ||
|
39
|
39
87302-50JA0-NM3
Back assy,rr,l(blue)
|
87302-50JA0-NM3 |
— | ||
|
40
|
40
87710-65D30-000
リクライニングアッシ,リヤ,レフト
|
87710-65D30-000 |
— | ||
| replacement | |||||
|
40
|
40
87710-65D31-000
RECLINING ASSY,RR,L
|
87710-65D31-000 |
— | ||
|
41
|
41
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
41
|
41
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
42
|
42
87721-65DL0-P4Z
COVER,RR RECL OUTSIDE,L
|
87721-65DL0-P4Z |
— | ||
|
43
|
43
87722-65DL0-P4Z
COVER,RR RECL INSIDE,L
|
87722-65DL0-P4Z |
— | ||
|
44
|
44
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
44
|
44
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
44
|
44
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
45
|
45
87715-65DL0-000
ROD,RR RCLNG,L
|
87715-65DL0-000 |
— | ||
|
46
|
46
87319-80G00-000 SILENCER,RR RECLINING ROD |
87319-80G00-000 |
US $2.47 |
||
|
47
|
47
09403-04306-000 CLAMPConnector, choke rod |
09403-04306-000 |
US $20.20 |
||
|
48
|
48
87211-74G00-P4Z
Knob,3rd rclng(gray)
|
87211-74G00-P4Z |
— | ||
| replacement | |||||
|
48
|
48
87211-74G10-P4Z KNOB,RR BACK |
87211-74G10-P4Z |
from US $2.43 |
||
|
49
|
49
85341-81A00-P4Z GUIDE,HEADRESTRAINT |
85341-81A00-P4Z |
US $6.04 |
||
|
50
|
50
85840-81A10-P4Z GUIDE,HEADRESTRAINT |
85840-81A10-P4Z |
US $11.63 |
||
|
51
|
51
09409-10302-P4Z CLIP(GRAY) |
09409-10302-P4Z |
US $12.90 |
||
|
52
|
52
87429-65DA0-P4Z GUIDE,STOPPER BAND |
87429-65DA0-P4Z |
US $3.64 |
||
|
53
|
53
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
53
|
53
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
53
|
53
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
54
|
54
87428-65DA0-000
ストライカ,トノカバー
|
87428-65DA0-000 |
— | ||
|
55
|
55
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
55
|
55
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
55
|
55
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
56
|
56
87222-65D10-P4Z
COVER,RR RECL BKT,R
|
87222-65D10-P4Z |
— | ||
|
57
|
57
87722-65D10-P4Z
COVER,RR RECL BKT,L
|
87722-65D10-P4Z |
— | ||
|
58
|
58
87285-65D11-P4Z
COVER,RR CUSH LEG
|
87285-65D11-P4Z |
— | ||
|
59
|
59
87950-65D10-000 HINGE,RR BACK CTR |
87950-65D10-000 |
US $32.20 |
||
|
60
|
60
01551-10203-000
Bolt, 3rd striker
|
01551-10203-000 |
— | ||
| replacement | |||||
|
60
|
60
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
|
61
|
61
87995-65D10-P4Z COVER,RR CENTER HINGE |
87995-65D10-P4Z |
US $6.84 |
||
|
62
|
62
09409-10302-P4Z CLIP(GRAY) |
09409-10302-P4Z |
US $12.90 |
||
