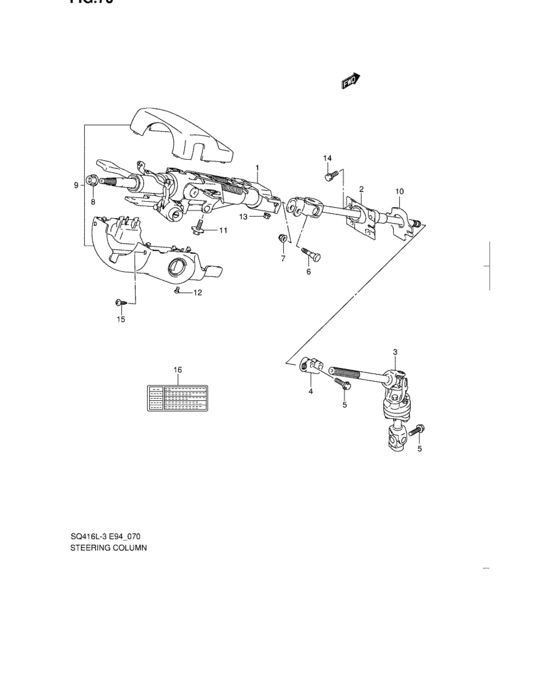

Steering column (STEERING COLUMN) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- All regions
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-50J00-P4Z COLUMN ASSY,STRG |
48200-50J00-P4Z |
US $725.12 |
||
|
2
|
2
48210-50J00-000 SHAFT,STEERING MIDDLE |
48210-50J00-000 |
US $347.76 |
||
|
3
|
3
48220-65D20-000 SHAFT ASSY,STEERING LOWER |
48220-65D20-000 |
US $285.20 |
||
|
4
|
4
48230-65D00-000 JOINT,STEERING SHAFT |
48230-65D00-000 |
US $40.48 |
||
| replacement | |||||
|
4
|
4
48230-65D10-000 JOINT,STEERING SHAFT |
48230-65D10-000 |
US $40.48 |
||
|
5
|
5
09117-08068-000 BOLT(8X30) |
09117-08068-000 |
US $17.30 |
||
|
6
|
6
09119-08087-000 BOLT(8X37) |
09119-08087-000 |
US $23.90 |
||
|
7
|
7
09159-08083-000 NUT |
09159-08083-000 |
from US $1.28 |
||
|
8
|
8
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
9
|
9
48400-50J00-P4Z COVER,STRG COLUMN |
48400-50J00-P4Z |
US $54.83 |
||
|
10
|
10
48491-65D00-000 SEAL,STRG COLUMN LOWER |
48491-65D00-000 |
US $4.97 |
||
|
11
|
11
09116-08120-000 BOLT(8X28) |
09116-08120-000 |
from US $6.38 |
||
|
12
|
12
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
US $0.96 |
||
|
13
|
13
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-08135-000 NUT |
09159-08135-000 |
US $1.12 |
||
|
14
|
14
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
14
|
14
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
14
|
14
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
15
|
15
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
15
|
15
03211-0512A-000 SCREW |
03211-0512A-000 |
US $0.80 |
||
|
16
|
16
79172-50G73-000
ラベル,ステアリングコラムエアバッグ
W/AIR BAG |
79172-50G73-000 |
— | ||
| replacement | |||||
|
16
|
16
79172-80G02-000 LABEL,STRG JOINTW/AIR BAG |
79172-80G02-000 |
US $4.48 |
||
