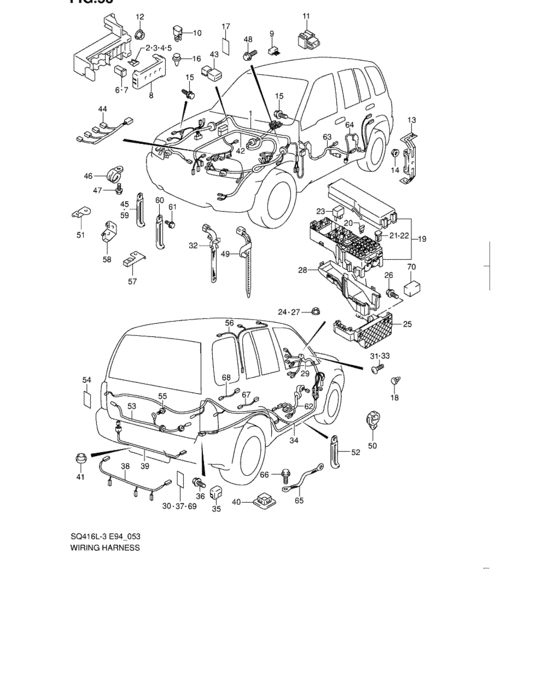

Wiring harness (WIRING HARNESS) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- All regions
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36601-51JB0-000
Harness assy,main
N/ABS |
36601-51JB0-000 |
— | ||
|
1
|
1
36601-51JB2-000
Harness assy,main
N/ABS:JSAFTD02V00200061~ |
36601-51JB2-000 |
— | ||
|
1
|
1
36601-51JB3-000
Harness assy,main
N/ABS:JSAFTD02V00200209~ |
36601-51JB3-000 |
— | ||
|
1
|
1
36601-51JG0-000
Harness assy,main
W/ABS |
36601-51JG0-000 |
— | ||
|
1
|
1
36601-51JG1-000
Harness assy,main
W/ABS:JSAFTD02V00200209~ |
36601-51JG1-000 |
— | ||
|
2
|
2
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.06 |
||
|
3
|
3
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $3.25 |
||
|
4
|
4
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $2.28 |
||
|
5
|
5
09481-25501-000 FUSE(25A) |
09481-25501-000 |
from US $2.28 |
||
|
6
|
6
09481-30401-000 FUSE(30A) |
09481-30401-000 |
from US $5.96 |
||
|
7
|
7
09481-40401-000 FUSE(40A) |
09481-40401-000 |
from US $3.83 |
||
|
8
|
8
36717-50J00-000 COVER,FUSE BOX |
36717-50J00-000 |
US $8.13 |
||
|
9
|
9
33459-61B10-000 DIODE |
33459-61B10-000 |
US $15.57 |
||
|
10
|
10
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
11
|
11
38610-84F21-000 RELAY,TURN SIGNAL |
38610-84F21-000 |
US $59.62 |
||
|
12
|
12
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
36614-65D00-000 BRACKET,MAIN HARN CONNECTOR |
36614-65D00-000 |
US $4.20 |
||
|
14
|
14
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
15
|
15
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
16
|
16
09148-05042-000 CLIP |
09148-05042-000 |
US $1.12 |
||
|
17
|
17
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
18
|
18
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
19
|
19
36740-52J11-000 BOX ASSY,MAIN FUSE |
36740-52J11-000 |
US $121.44 |
||
|
20
|
20
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $3.25 |
||
|
21
|
21
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $2.28 |
||
|
22
|
22
09481-60401-000 FUSE(60A) |
09481-60401-000 |
from US $3.92 |
||
|
23
|
23
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
24
|
24
08361-35063-000
Nut
|
08361-35063-000 |
— | ||
| replacement | |||||
|
24
|
24
08361-3506A-000 NUT |
08361-3506A-000 |
from US $0.77 |
||
|
25
|
25
36737-50J00-000 BRACKET,MAIN FUSE BOX,L |
36737-50J00-000 |
US $28.52 |
||
|
26
|
26
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
27
|
27
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
27
|
27
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
28
|
28
36749-50J00-000 COVER,MAIN FUSE BOX UNDER |
36749-50J00-000 |
US $30.73 |
||
|
29
|
29
36602-50J50-000
Harness assy,inp
N/ABS |
36602-50J50-000 |
— | ||
|
29
|
29
36602-50J51-000
Harness assy,instrument pnl
N/ABS:JSAFTD02V00200101~ |
36602-50J51-000 |
— | ||
|
29
|
29
36902-50J50-000
Harness assy,instrument panel
N/ABS:JSAFTD02V00200209~ |
36902-50J50-000 |
— | ||
|
29
|
29
36602-50J71-000
Harness assy,inp
W/ABS |
36602-50J71-000 |
— | ||
|
29
|
29
36902-50J70-000
Harness assy,instrument panel
W/ABS:JSAFTD02V00200209~ |
36902-50J70-000 |
— | ||
|
30
|
30
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
31
|
31
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
31
|
31
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
32
|
32
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
33
|
33
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
33
|
33
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
34
|
34
36603-52J40-000
Harness assy, wiring floor
|
36603-52J40-000 |
— | ||
|
35
|
35
33459-82000-000 DIODE |
33459-82000-000 |
US $15.57 |
||
|
36
|
36
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
36
|
36
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
37
|
37
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
38
|
38
36640-65D11-000
HARNESS ASSY,WRG RR LAMP
|
36640-65D11-000 |
— | ||
|
39
|
39
36840-65D00-000 WIRE,FUELN/ABS |
36840-65D00-000 |
US $100.46 |
||
|
39
|
39
36840-65D20-000 WIRE,FUELW/ABS |
36840-65D20-000 |
US $120.70 |
||
|
40
|
40
75411-60A00-000 CAP,TAIL MEMBER LOWER |
75411-60A00-000 |
US $2.56 |
||
|
41
|
41
09250-35003-000 CAP(OD:45)Cap, frame bridge |
09250-35003-000 |
from US $5.41 |
||
|
42
|
42
36605-50J31-000
HARNESS ASSY,ENGINE
|
36605-50J31-000 |
— | ||
|
43
|
43
33553-52E00-000 FILTER,NOISE SUPPR |
33553-52E00-000 |
US $57.76 |
||
|
44
|
44
36670-66D01-000
HARNESS ASSY,INJ
|
36670-66D01-000 |
— | ||
|
45
|
45
09404-06431-000
CLAMP(L:65)
|
09404-06431-000 |
— | ||
| replacements | |||||
|
45
|
45
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
45
|
45
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
45
|
45
09404-06038-000 Clamp(L:65) |
09404-06038-000 |
from US $2.40 |
||
|
46
|
46
36649-50F60-000 CLAMP,HARN |
36649-50F60-000 |
US $4.34 |
||
|
47
|
47
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
47
|
47
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
47
|
47
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
48
|
48
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
48
|
48
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
48
|
48
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
49
|
49
36990-52D00-000 CLAMP,MAIN HARN |
36990-52D00-000 |
US $2.87 |
||
|
50
|
50
09403-35301-000 CLAMP |
09403-35301-000 |
US $14 |
||
|
51
|
51
36651-51G00-000 BRACKET,ENG HARN |
36651-51G00-000 |
US $2.36 |
||
|
52
|
52
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
53
|
53
36845-65D01-000 WIRE,BACK DR |
36845-65D01-000 |
US $132.48 |
||
|
54
|
54
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
55
|
55
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
US $11.40 |
||
|
56
|
56
36820-65D21-000 WIRE,ROOM LAMP |
36820-65D21-000 |
US $65.50 |
||
|
57
|
57
36995-66D00-000 BRACKET,INJECTOR HARN |
36995-66D00-000 |
US $6.59 |
||
|
58
|
58
36995-70E20-000 BRACKET,ENG HARN |
36995-70E20-000 |
US $6.07 |
||
|
59
|
59
09404-08207-000
CLAMP(L:80)
|
09404-08207-000 |
— | ||
| replacement | |||||
|
59
|
59
09404-08212-000 Clamp |
09404-08212-000 |
from US $1.22 |
||
|
60
|
60
09404-10417-000 CLAMP(L:97) |
09404-10417-000 |
from US $3.71 |
||
|
61
|
61
01550-10163-000
Bolt
|
01550-10163-000 |
— | ||
| replacements | |||||
|
61
|
61
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $0.96 |
||
|
61
|
61
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
62
|
62
36756-52JA0-000
Wire, front door rh
|
36756-52JA0-000 |
— | ||
| replacement | |||||
|
62
|
62
36756-52JA1-000
WIRE,FR DR DRVR
|
36756-52JA1-000 |
— | ||
|
63
|
63
36757-52J30-000
WIRE,SUB DR
|
36757-52J30-000 |
— | ||
|
64
|
64
36751-65D10-000 WIRE,RR DR |
36751-65D10-000 |
US $70.29 |
||
|
65
|
65
39312-77E10-000 WIRE,HORN GND |
39312-77E10-000 |
US $6.92 |
||
|
66
|
66
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
66
|
66
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
67
|
67
36611-50J00-000
WIRE,CONSOLE
|
36611-50J00-000 |
— | ||
|
68
|
68
36611-50J10-000
WIRE,CONSOLE
|
36611-50J10-000 |
— | ||
|
69
|
69
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
70
|
70
76551-52D00-000 PAD |
76551-52D00-000 |
US $6.73 |
||
