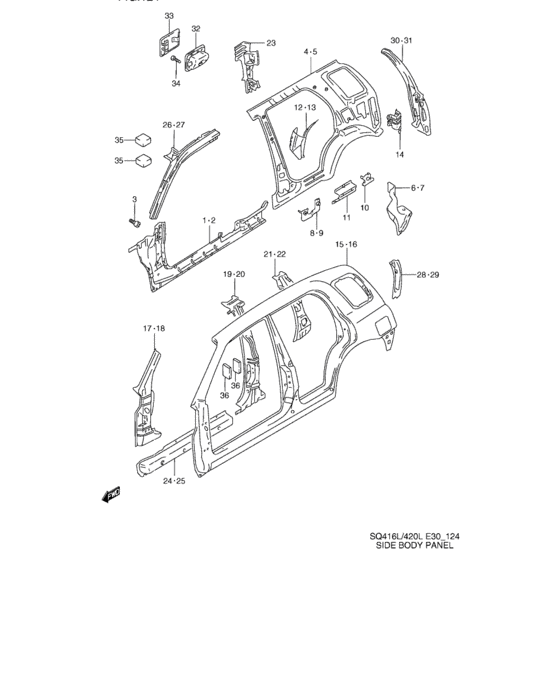

Side body panel (SIDE BODY PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61480-65D40-000
Panel, fr plr inner lower rh
|
61480-65D40-000 |
— | ||
| replacement | |||||
|
1
|
1
61480-65D70-000 PANEL,FR PILLAR INNER LWR,R |
61480-65D70-000 |
US $215.28 |
||
|
2
|
2
61580-65D40-000
Panel, fr plr inner lower lh
|
61580-65D40-000 |
— | ||
| replacement | |||||
|
2
|
2
61580-65D90-000
PANEL,FR PILLAR INNER LWR,L
|
61580-65D90-000 |
— | ||
|
3
|
3
09119-06090-000 Bolt |
09119-06090-000 |
US $11.40 |
||
|
4
|
4
63111-65D01-000
Panel, side body inner rh
|
63111-65D01-000 |
— | ||
| replacement | |||||
|
4
|
4
63111-65D03-000
PANEL,SIDE BODY INNER,R
|
63111-65D03-000 |
— | ||
|
5
|
5
63511-65D01-000
Panel, side body inner lh
|
63511-65D01-000 |
— | ||
| replacement | |||||
|
5
|
5
63511-65D02-000
PANEL,SIDE BODY INNER,L
|
63511-65D02-000 |
— | ||
|
6
|
6
63121-65D00-000 PANEL,RR WHEEL HSG OTR RR,R |
63121-65D00-000 |
US $75.81 |
||
|
7
|
7
63521-65D00-000 PANEL,RR WHEEL HSG OTR RR,L |
63521-65D00-000 |
US $75.81 |
||
|
8
|
8
63131-65D00-000 REINF,CTR PILLAR RETRACTOR,R |
63131-65D00-000 |
US $10.75 |
||
|
9
|
9
63531-65D00-000 REINFORCEMENT,CTR PLR RETR,L |
63531-65D00-000 |
US $10.75 |
||
|
10
|
10
63141-65D00-000 REINFORCEMENT,SEAT BELT RETR |
63141-65D00-000 |
US $5.48 |
||
|
11
|
11
63151-65D00-000
リンフォースメント,サイドシル,リヤ
|
63151-65D00-000 |
— | ||
| replacement | |||||
|
11
|
11
63151-65D10-000 REINFORCEMENT,SIDE SILL RR |
63151-65D10-000 |
US $16.80 |
||
|
12
|
12
63210-65D00-000 EXT,RR WHL HSG OTR,R |
63210-65D00-000 |
US $37.90 |
||
|
13
|
13
63610-65D00-000 EXT,RR WHL HSG OTR,L |
63610-65D00-000 |
US $37.90 |
||
|
14
|
14
63551-65D01-000 BRACKET,JACK |
63551-65D01-000 |
US $42.69 |
||
|
15
|
15
64111-65D11-000
Panel, side body outer rh
|
64111-65D11-000 |
— | ||
| replacements | |||||
|
15
|
15
64231-65D12-000 PANEL,BACK PILLAR OUTER,R |
64231-65D12-000 |
US $115.92 |
||
|
15
|
15
77191-76F00-000 FILM |
77191-76F00-000 |
US $1.60 |
||
|
16
|
16
64511-65D11-000
Panel, side body outer lh
|
64511-65D11-000 |
— | ||
| replacements | |||||
|
16
|
16
64630-52D02-000 PANEL,BACK PILLAR OUTER,L |
64630-52D02-000 |
US $138.74 |
||
|
16
|
16
77191-76F00-000 FILM |
77191-76F00-000 |
US $1.60 |
||
|
17
|
17
64120-65D00-000
リンフォースメント,フロントピラー,ライト
|
64120-65D00-000 |
— | ||
| replacement | |||||
|
17
|
17
64120-65D01-000 REINFORCEMENT,FR PILLAR,R |
64120-65D01-000 |
US $172.96 |
||
|
18
|
18
64520-65D00-000
リンフォースメント,フロントピラー,レフト
|
64520-65D00-000 |
— | ||
| replacement | |||||
|
18
|
18
64520-65D01-000 REINFORCEMENT,FR PILLAR,L |
64520-65D01-000 |
US $172.96 |
||
|
19
|
19
64130-65D01-000
Reinf, ctr pillar rh
|
64130-65D01-000 |
— | ||
| replacement | |||||
|
19
|
19
64130-65D03-000 REINFORCEMENT,CTR PILLAR,R |
64130-65D03-000 |
US $241.04 |
||
|
20
|
20
64530-65D01-000
リンフォースメント,センタピラー,レフト
|
64530-65D01-000 |
— | ||
| replacement | |||||
|
20
|
20
64530-65D03-000 REINFORCEMENT,CTR PILLAR,L |
64530-65D03-000 |
US $200.56 |
||
|
21
|
21
64140-65D01-000 REINFORCEMENT,RR PILLAR,R |
64140-65D01-000 |
US $123.65 |
||
|
22
|
22
64540-65D01-000 REINFORCEMENT,RR PILLAR,L |
64540-65D01-000 |
US $123.65 |
||
|
23
|
23
64150-65D00-000
Reinf, back pillar rh
|
64150-65D00-000 |
— | ||
|
24
|
24
64161-65D00-000
リンフォースメント,サイドシル,ライト
|
64161-65D00-000 |
— | ||
| replacement | |||||
|
24
|
24
64161-65D11-000 REINFORCEMENT,SIDE SILL,R |
64161-65D11-000 |
US $85.60 |
||
|
25
|
25
64561-65D00-000
リンフォースメント,サイドシル,レフト
|
64561-65D00-000 |
— | ||
| replacement | |||||
|
25
|
25
64561-65D11-000 REINFORCEMENT,SIDE SILL,L |
64561-65D11-000 |
US $85.60 |
||
|
26
|
26
64210-65D01-000
パネル,フロントピラーインナ,ライト
|
64210-65D01-000 |
— | ||
| replacements | |||||
|
26
|
26
64210-65D03-000 PANEL,FR PILLAR INNER,R |
64210-65D03-000 |
US $143.89 |
||
|
26
|
26
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
27
|
27
64610-65D01-000
パネル,フロントピラーインナ,レフト
|
64610-65D01-000 |
— | ||
| replacements | |||||
|
27
|
27
64610-65D03-000 PANEL,FR PILLAR INNER,L |
64610-65D03-000 |
US $143.89 |
||
|
27
|
27
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
28
|
28
64221-65D01-000 PANEL,AIR OUTLET,R |
64221-65D01-000 |
US $15.42 |
||
|
29
|
29
64621-65D01-000 PANEL,AIR OUTLET,L |
64621-65D01-000 |
US $15.42 |
||
|
30
|
30
64231-65D00-000
Panel, back pillar outer rh
|
64231-65D00-000 |
— | ||
| replacements | |||||
|
30
|
30
64231-65D12-000 PANEL,BACK PILLAR OUTER,R |
64231-65D12-000 |
US $115.92 |
||
|
30
|
30
77191-76F00-000 FILM |
77191-76F00-000 |
US $1.60 |
||
|
31
|
31
64630-65D01-000
Panel, back pillar outer lh
|
64630-65D01-000 |
— | ||
| replacements | |||||
|
31
|
31
64630-52D02-000 PANEL,BACK PILLAR OUTER,L |
64630-52D02-000 |
US $138.74 |
||
|
31
|
31
77191-76F00-000 FILM |
77191-76F00-000 |
US $1.60 |
||
|
32
|
32
64241-65D00-000 BOX,FUEL INLET |
64241-65D00-000 |
US $45.63 |
||
|
33
|
33
65950-65D00-000
Lid, fuel inlet
|
65950-65D00-000 |
— | ||
| replacement | |||||
|
33
|
33
65950-65D04-000 LID,FUEL INLET |
65950-65D04-000 |
US $54.40 |
||
|
34
|
34
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
34
|
34
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
35
|
35
83921-82C00-000 PAD |
83921-82C00-000 |
US $4.16 |
||
|
36
|
36
75242-82300-000
パッド
|
75242-82300-000 |
— | ||
| replacement | |||||
|
36
|
36
75242-8230V-000 PAD |
75242-8230V-000 |
US $3.20 |
||
