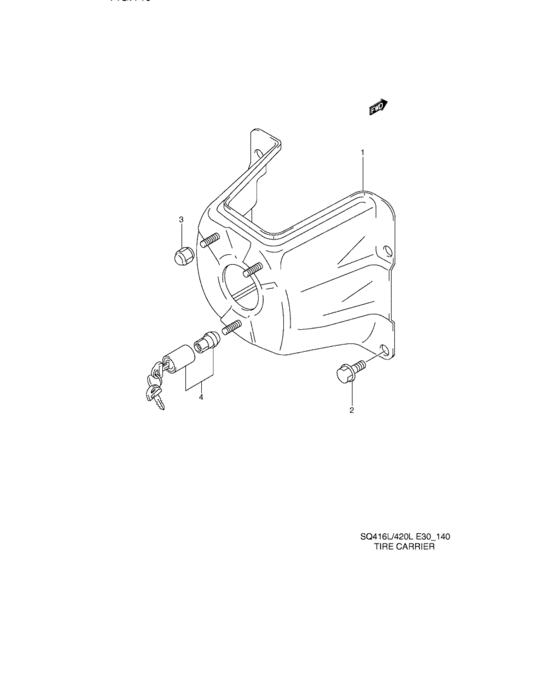

Tire carrier (TIRE CARRIER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83961-65D00-000
CARRIER,SPARE TIRE
|
83961-65D00-000 |
— | ||
|
2
|
2
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $5.59 |
||
|
2
|
2
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
3
|
3
09159-12024-000 NUT |
09159-12024-000 |
from US $2.40 |
||
|
4
|
4
83900-60820-000
KEY ASSY,SPARE TIRE NUT LOCK
|
83900-60820-000 |
— | ||
