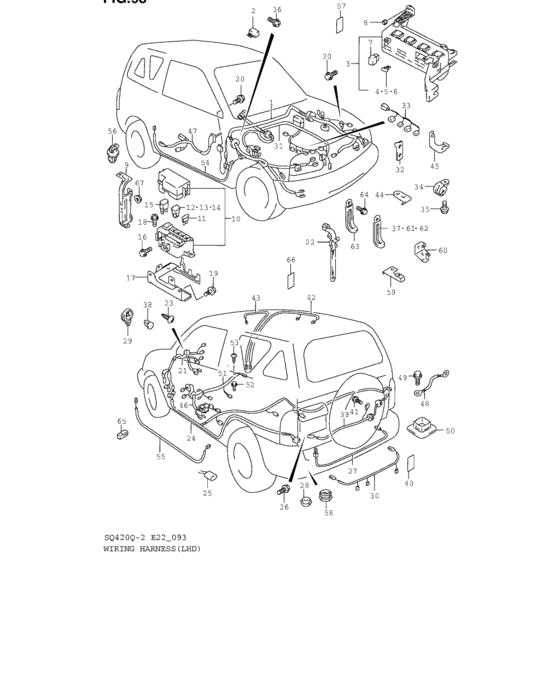

Wiring harness (LHD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36910-68D70-000
Harness assy, wiring main
EC,Brazil:AT |
36910-68D70-000 |
— | ||
|
1
|
1
36910-68DB0-000
Harness assy, wiring main
Germany,Israel:AT:N/ABS:N/KEYLESS ENTRY |
36910-68DB0-000 |
— | ||
|
1
|
1
36901-68DF0-000
Harness assy, wiring main
Germany:AT:N/ABS:W/KEYLESS ENTRY |
36901-68DF0-000 |
— | ||
|
1
|
1
36910-68DA0-000
Harness assy, wiring main
Germany,Israel:AT:W/ABS:N/KEYLESS ENTRY |
36910-68DA0-000 |
— | ||
|
1
|
1
36901-68DE0-000
Harness assy, wiring main
Germany:AT:W/ABS:W/KEYLESS ENTRY |
36901-68DE0-000 |
— | ||
|
1
|
1
36910-68DM0-000
Harness assy, wiring main
Saudi Arabia:AT,N/ABS |
36910-68DM0-000 |
— | ||
|
1
|
1
36910-68DL0-000
Harness assy, wiring main
Saudi Arabia:AT,W/ABS |
36910-68DL0-000 |
— | ||
|
2
|
2
33459-61B10-000 DIODE |
33459-61B10-000 |
US $15.57 |
||
|
3
|
3
36710-67D00-000
BOX ASSY,JUNCTION
|
36710-67D00-000 |
— | ||
|
4
|
4
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.06 |
||
|
5
|
5
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $3.25 |
||
|
6
|
6
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $2.28 |
||
|
7
|
7
09481-30401-000 FUSE(30A) |
09481-30401-000 |
from US $5.96 |
||
|
8
|
8
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
9
|
9
36614-67D00-000
Bracket,main harness connector
|
36614-67D00-000 |
— | ||
|
10
|
10
36740-65D00-000 BOX ASSY,MAIN FUSE |
36740-65D00-000 |
US $138.40 |
||
|
11
|
11
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
12
|
12
09481-30203-000 FUSE(30A) |
09481-30203-000 |
US $13.92 |
||
|
13
|
13
09481-50203-000 FUSE(50A) |
09481-50203-000 |
US $15.36 |
||
|
14
|
14
09481-60202-000 FUSE(60A) |
09481-60202-000 |
from US $5.47 |
||
|
15
|
15
09481-80301-000 FUSE(80A) |
09481-80301-000 |
from US $5.74 |
||
|
16
|
16
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
17
|
17
36737-67D00-000
Bracket, main fuse
|
36737-67D00-000 |
— | ||
| replacement | |||||
|
17
|
17
36737-65D00-000 BRACKET,MAIN FUSE |
36737-65D00-000 |
US $11.85 |
||
|
18
|
18
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
18
|
18
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
19
|
19
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
20
|
20
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
20
|
20
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
21
|
21
36620-68DP0-000
Harness assy, instrument panel
01 MODEL,02 MODEL:Chile,Saudi Arabia |
36620-68DP0-000 |
— | ||
|
21
|
21
36620-68DQ0-000
Harness assy, instrument panel
01 MODEL,02 MODEL:EC,Germany,Brazil,Israel |
36620-68DQ0-000 |
— | ||
|
21
|
21
36602-68D80-000
HARNESS ASSY,I/P
03 MODEL,04 MODEL,W/KEYLESS ENTRY |
36602-68D80-000 |
— | ||
|
22
|
22
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
23
|
23
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
23
|
23
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
24
|
24
36603-68DB1-000
Harness assy, wiring floor
Chile |
36603-68DB1-000 |
— | ||
|
24
|
24
36630-68DE1-000
Harness assy, wiring floor
EC |
36630-68DE1-000 |
— | ||
|
24
|
24
36603-68D31-000
Harness assy, wiring floor
Germany,N/ABS,N/SEAT HEATER |
36603-68D31-000 |
— | ||
|
24
|
24
36603-68D51-000
Harness assy, wiring floor
Germany,N/ABS,W/SEAT HEATER |
36603-68D51-000 |
— | ||
|
24
|
24
36603-68D21-000
Harness assy, wiring floor
Germany,W/ABS,N/SEAT HEATER |
36603-68D21-000 |
— | ||
|
24
|
24
36603-68D41-000
Harness assy, wiring floor
Germany,W/ABS,W/SEAT HEATER |
36603-68D41-000 |
— | ||
|
24
|
24
36603-68DC1-000
Harness assy, wiring floor
Saudi Arabia,W/ABS |
36603-68DC1-000 |
— | ||
|
25
|
25
36639-74F00-000 DIODE |
36639-74F00-000 |
US $20.98 |
||
|
26
|
26
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
26
|
26
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
27
|
27
36840-67D10-000
Wire comp,fuel
N/ABS |
36840-67D10-000 |
— | ||
|
27
|
27
36840-67D30-000
WIRE,FUEL
W/ABS |
36840-67D30-000 |
— | ||
|
28
|
28
09250-35003-000 CAP(OD:45)Cap, frame bridge |
09250-35003-000 |
from US $5.41 |
||
|
29
|
29
09403-35301-000 CLAMP |
09403-35301-000 |
US $14 |
||
|
30
|
30
36640-67D10-000
Harness assy, rear lamp
EC |
36640-67D10-000 |
— | ||
|
30
|
30
36640-67D00-000
Harness assy,wrg,rr lamp
Germany,Brazil,Israel |
36640-67D00-000 |
— | ||
|
31
|
31
36950-66DD0-000
Harness assy, wiring engine
SQ416Q:AT:EC,Brazil,Saudi Arabia MODEL,01 MODEL |
36950-66DD0-000 |
— | ||
|
31
|
31
36950-66DH0-000
Harness assy,wrg,eng
SQ416Q:AT:Germany,Israel MODEL,01 MODEL |
36950-66DH0-000 |
— | ||
|
31
|
31
36650-66DQ0-000
Harness assy, wiring engine
SQ416Q:AT:EC MODEL,02 MODEL,03 MODEL,04 MODEL |
36650-66DQ0-000 |
— | ||
|
31
|
31
36605-66DQ0-000
Harness assy, wiring engine
SQ416Q:AT:Germany MODEL,02 MODEL,03 MODEL,04 MODEL |
36605-66DQ0-000 |
— | ||
|
31
|
31
36605-65DH0-000
Harness assy, wiring engine
SQ420Q:AT:EC,Saudi Arabia MODEL,01 MODEL |
36605-65DH0-000 |
— | ||
|
31
|
31
36950-65DD0-000
Harness assy, wiring engine
SQ420Q:AT:Germany,Israel MODEL,01 MODEL |
36950-65DD0-000 |
— | ||
|
31
|
31
36950-65DM0-000
Harness assy, wiring engine
SQ420Q:AT:Germany MODEL,02 MODEL,03 MODEL,04 MODEL |
36950-65DM0-000 |
— | ||
|
31
|
31
36650-65DU0-000
Harness assy, wiring engine
SQ420Q:AT:Saudi Arabia MODEL,02 MODEL |
36650-65DU0-000 |
— | ||
|
32
|
32
36651-51G00-000 BRACKET,ENG HARNSQ416Q:Germany,Israel MODEL,01 MODEL |
36651-51G00-000 |
US $2.36 |
||
|
33
|
33
36670-66D01-000
HARNESS ASSY,INJ
SQ416Q |
36670-66D01-000 |
— | ||
|
33
|
33
36670-65D01-000 HARNESS ASSY,INJSQ420Q |
36670-65D01-000 |
US $90.53 |
||
|
34
|
34
36649-65D00-000
Clamp, engine harness
AT |
36649-65D00-000 |
— | ||
|
35
|
35
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
35
|
35
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
35
|
35
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
36
|
36
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
36
|
36
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
36
|
36
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
37
|
37
09404-08420-000 CLAMP(L:120 T:1.0)AT |
09404-08420-000 |
from US $2.08 |
||
|
38
|
38
09409-07320-000 CAPSQ416Q |
09409-07320-000 |
US $1.28 |
||
|
39
|
39
36845-68D10-000
WIRE,BACK DR
|
36845-68D10-000 |
— | ||
|
40
|
40
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
41
|
41
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
US $11.40 |
||
|
42
|
42
36820-68D10-000
WIRE,ROOM LAMP
|
36820-68D10-000 |
— | ||
|
43
|
43
36820-68D20-000
Wire, spot lamp
|
36820-68D20-000 |
— | ||
|
44
|
44
36995-77E21-000 BRACKET,ENG HARNSQ420Q |
36995-77E21-000 |
US $1.69 |
||
|
45
|
45
36995-65D01-000 BRACKET,ENG HARNSQ420Q |
36995-65D01-000 |
US $10.49 |
||
|
46
|
46
36756-68D00-000
WIRE,FR DR DRVR
N/MIRROR HEATER:EXC/SQ416Q:EC |
36756-68D00-000 |
— | ||
|
46
|
46
36756-68D20-000
WIRE,FR DR,L
W/MIRROR HEATER:EXC/SQ416Q:EC,2S2GTA03C00490778~,2S2GTA52C00490876~ |
36756-68D20-000 |
— | ||
|
46
|
46
36756-67D10-000
Wire, front door rh
SQ416Q:EC:N/POWER DOOR LOCK,,N/ELECTRIC MIRROR |
36756-67D10-000 |
— | ||
|
46
|
46
36756-67D30-000
Wire comp,spk & mirror,dr
SQ416Q:EC:N/POWER DOOR LOCK,,W/ELECTRIC MIRROR,2S2GTA03C00490778~ |
36756-67D30-000 |
— | ||
|
46
|
46
36756-68D60-000
Wire, front door lh
SQ416Q:EC:W/POWER DOOR LOCK,,N/REMOCON MIRROR |
36756-68D60-000 |
— | ||
|
47
|
47
36757-68D00-000
WIRE,FR DR ASST
N/MIRROR HEATER:EXC/SQ416Q:EC |
36757-68D00-000 |
— | ||
|
47
|
47
36757-68D10-000
WIRE,FR DR,R
W/MIRROR HEATER:EXC/SQ416Q:EC,2S2GTA03C00490778~,2S2GTA52C00490876~ |
36757-68D10-000 |
— | ||
|
47
|
47
36756-67D10-000
Wire, front door rh
SQ416Q:EC:N/POWER DOOR LOCK,,N/ELECTRIC MIRROR,2S2GTA03C00490778~ |
36756-67D10-000 |
— | ||
|
47
|
47
36756-67D30-000
Wire comp,spk & mirror,dr
SQ416Q:EC:N/POWER DOOR LOCK,,W/ELECTRIC MIRROR |
36756-67D30-000 |
— | ||
|
47
|
47
36757-68D20-000
Wire, front door rh
SQ416Q:EC:W/POWER DOOR LOCK,,N/ELECTRIC MIRROR |
36757-68D20-000 |
— | ||
|
48
|
48
39312-77E10-000 WIRE,HORN GND |
39312-77E10-000 |
US $6.92 |
||
|
49
|
49
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
49
|
49
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
50
|
50
75411-60A00-000 CAP,TAIL MEMBER LOWER |
75411-60A00-000 |
US $2.56 |
||
|
51
|
51
36690-67D40-000
HARNESS ASSY,WRG AIR BAG
Germany |
36690-67D40-000 |
— | ||
|
51
|
51
36690-67D41-000
HARNESS ASSY,WRG AIR BAG
Germany,2S2GTA03C00490263~,2S2GTA52C00490262~ |
36690-67D41-000 |
— | ||
|
51
|
51
36690-67D70-000
Harness assy,wrg,air bag
Saudi Arabia |
36690-67D70-000 |
— | ||
|
52
|
52
09115-06003-000 BOLT(6X16)Germany,Saudi Arabia,Israel |
09115-06003-000 |
US $10.70 |
||
|
53
|
53
03541-05163-000
Screw
Germany,Saudi Arabia,Israel |
03541-05163-000 |
— | ||
| replacement | |||||
|
53
|
53
03541-0516A-000 SCREWGermany,Saudi Arabia,Israel |
03541-0516A-000 |
from US $0.68 |
||
|
54
|
54
36695-68D11-000
WIRE,PRE-TENSIONER
Germany,Israel |
36695-68D11-000 |
— | ||
|
55
|
55
36695-68D00-000
Wire comp,preten,l
Germany,Israel |
36695-68D00-000 |
— | ||
|
56
|
56
09403-07325-000 CLAMPClamp, stp sw cable Germany,Israel |
09403-07325-000 |
from US $4.59 |
||
|
57
|
57
36930-82010-000 COVER,HARNESSCover, roof wire AT |
36930-82010-000 |
from US $1.73 |
||
|
58
|
58
09250-30010-000
Grommet
Chile,Saudi Arabia |
09250-30010-000 |
— | ||
| replacement | |||||
|
58
|
58
72999-67H00-000 CAP,OD:40Chile,Saudi Arabia |
72999-67H00-000 |
from US $4.32 |
||
|
59
|
59
36995-66D00-000 BRACKET,INJECTOR HARNSQ416Q |
36995-66D00-000 |
US $6.59 |
||
|
60
|
60
36995-70E20-000 BRACKET,ENG HARNSQ416Q |
36995-70E20-000 |
US $6.07 |
||
|
61
|
61
09404-06432-000
CLAMP(L:65)
SQ416Q |
09404-06432-000 |
— | ||
| replacement | |||||
|
61
|
61
09404-06039-000 Clamp(L:65)SQ416Q |
09404-06039-000 |
from US $1.82 |
||
|
62
|
62
09404-08207-000
CLAMP(L:80)
SQ416Q |
09404-08207-000 |
— | ||
| replacement | |||||
|
62
|
62
09404-08212-000 ClampSQ416Q |
09404-08212-000 |
from US $1.22 |
||
|
63
|
63
09404-10417-000 CLAMP(L:97)SQ416Q |
09404-10417-000 |
from US $3.71 |
||
|
64
|
64
01550-10163-000
Bolt
SQ416Q |
01550-10163-000 |
— | ||
| replacements | |||||
|
64
|
64
01550-1016B-000 BoltPlug, oil gallery SQ416Q |
01550-1016B-000 |
from US $0.96 |
||
|
64
|
64
01550-1016A-000 BoltPlug, oil gallery SQ416Q |
01550-1016A-000 |
from US $4.96 |
||
|
65
|
65
36691-67D00-000
Connector
Chile,EC,Brazil |
36691-67D00-000 |
— | ||
| replacement | |||||
|
65
|
65
36691-65D00-000
CONNECTOR
Chile,EC,Brazil |
36691-65D00-000 |
— | ||
|
66
|
66
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
67
|
67
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
